Overview

D943H Stainless Steel Electric Metal Hard Sealing Butterfly Valve is a valve that adopts a valve body made of cast steel, stainless steel, or duplex stainless steel with a metal hard sealing structure, using an electric actuator to drive the disc in a 90° rotary motion to achieve precise opening/closing or regulation of pipeline media. The valve utilizes a triple-eccentric or multi-eccentric design principle, allowing the disc sealing surface to quickly disengage from and engage with the seat sealing surface during opening and closing, effectively reducing friction and wear. Its transmission mechanism outputs rotational torque through the electric actuator, directly driving the stem to rotate the disc precisely within the valve body. Both the seat and disc sealing pair are made of high-hardness metal materials such as cast steel, stainless steel, and duplex stainless steel, forming a reliable metal-to-metal seal through precision machining. The D943H electric metal hard sealing butterfly valve features high temperature resistance, high pressure resistance, corrosion resistance, and long service life, making it particularly suitable for severe service conditions in industries such as chemical, metallurgical, power, pharmaceutical, and food.

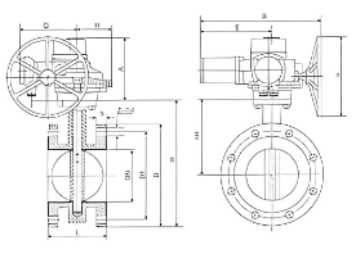

D943H Stainless Steel Electric Hard-seal Butterfly Valve – Product Drawing

Features

1、High-strength structural materials: The main components such as the valve body, stem, and disc are made of high-performance materials including cast steel, stainless steel, and duplex stainless steel, which can be flexibly selected according to operating conditions. They offer excellent pressure resistance, corrosion resistance, and stress corrosion cracking resistance, making them suitable for severe service conditions in industries such as petroleum, chemical, and marine engineering.

2、Metal hard sealing design: The sealing surfaces are processed using stainless steel with cemented carbide hardfacing or spray coating, forming a high-hardness metal sealing surface that is wear-resistant and erosion-resistant, with a service life far exceeding that of soft-sealing butterfly valves.

3、Multi-Offset Technology: Employs single-offset, double-offset, or triple-offset designs. This allows the disc and seat to separate instantly during valve operation, enabling frictionless opening and closing. Benefits include low operating torque and minimal sealing surface wear.

4、Electric Intelligent Control: Equipped with integrated or split-type electric actuators. Supports 4-20mA analog signals or on/off control for precise flow regulation and remote automated operation.

5、High-Temperature & High-Pressure Suitability: The metal hard-seal construction allows it to withstand higher working temperatures (typically up to 425°C or above) and higher working pressures. Suitable for high-temperature, high-pressure media like steam and thermal oil.

6、Superior Sealing Performance: Leverages the wedge-like compression effect generated by the offset design to achieve tight metal-to-metal contact upon closing. Provides reliable bidirectional sealing, with leakage levels potentially meeting ANSI Class VI.

7、Fire-Safe Design: Some models incorporate fire-safe features. In the event of a fire, the metal sealing pair can maintain a degree of sealing integrity, complying with standards such as API 607.

8、Easy and Economical Maintenance: Features a rational structural design and wear-resistant sealing surfaces, leading to extended maintenance intervals. The electric actuator includes functions like overload protection and signal-loss self-locking, ensuring safe and reliable operation.
