ZYS Self-Operated Pressure Reducing Valve Assembly Overview
The ZYS Self-Operated Pressure Reducing Valve Assembly is an integrated pressure regulation unit composed of a main pressure reducing valve, upstream and downstream shut-off valves, a filter, pressure gauges, and pipeline accessories. This valve assembly operates on a self-actuated principle, requiring no external power source. It utilizes the medium's own pressure changes to drive the main valve for automatic adjustment, achieving stable reduction of inlet pressure. The valve body is constructed from cast steel or stainless steel and is equipped with precision filtration and dual pressure monitoring. It is suitable for steam, gas, and liquid media. This integrated design simplifies on-site installation and enhances system reliability, making it widely used in pipelines requiring stable pressure reduction and system protection, such as in petrochemical plants, heating systems, industrial boilers, and power plants.

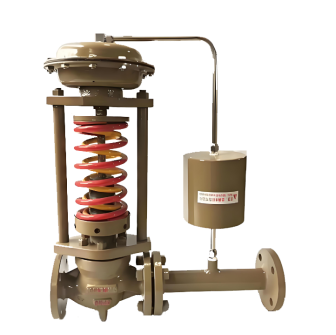

ZYS Self-Operated Pressure Reducing Valve Assembly Product Image
ZYS Self-Operated Pressure Reducing Valve Assembly Features
1. Integrated design for easy installation: Combines functions such as pressure reduction control, filtration monitoring, and shut-off protection into a single unit, reducing on-site pipeline welding and assembly efforts and improving installation efficiency.
2. Self-operated regulation with stable and reliable performance: The main pressure reducing valve employs a direct-acting or pilot-operated self-actuated structure, offering sensitive response and enabling precise automatic pressure adjustment without external power.
3. Comprehensive multiple protection functions: Equipped with an inlet filter to prevent clogging by impurities, upstream and downstream shut-off valves for convenient maintenance isolation, and dual pressure gauges for real-time monitoring of inlet and outlet pressures, ensuring safe system operation.
4. Easy maintenance and optimized costs: The modular structural design allows independent operations such as filter cleaning, valve inspection, and instrument replacement, reducing maintenance difficulty and downtime.
5. Wide range of applications: Can be custom-configured for steam, compressed air, nitrogen, liquefied gas, and various liquid media, meeting pressure reduction and stabilization requirements across different industrial scenarios.

ZYS Self-Operated Pressure Reducing Valve Assembly Structure Diagram
Parts Name Material List
| 序 号NO. | 名称Name | 材料Material |
| 1 | 阀 体body | ZG230-450、ZG1Cr18Ni9Ti 、ZGCr18Ni12Mo2Ti |
| 2 | 阀杆stem | 1Cr18Ni9Ti 、Cr18Ni12Mo2T |
| 3 | 膜盖Diaphragm Cover | A3、A3钢涂四氟乙烯、 A3不锈钢A3, A3 Steel Coated with Teflon (PTFE), A3 Stainless Steel |
| 4 | 填料packing | 丁腈、乙炳、氟、耐油橡胶NBR、EPDM、FKM、Oil-Resistant Rubber |
| 5 | 阀芯disc | 1Cr18Ni9Ti 、Cr18Ni12Mo2Ti |
| 6 | 阀座seat | 1Cr18Ni9Ti 、Cr18Ni12Mo2Ti |
| 性能规范表Performance Specification | ||
| 公称压力Nominal Pressure | 1.6/4/6.4 | MpaМПа |
| 强度试验压力Shell Test | 2.4/6/9.6 | |
| 密封试验压力Seal Test | 1.76/4.4/7.04 | |
| 适用温度Suitable Temp. | ≤80 | ℃ |
Dimensions Standard Requirements
1. The structural length of the valve shall conform to the standard GB/T12250.
2. The connecting flange shall conform to the standard GB/T 79.

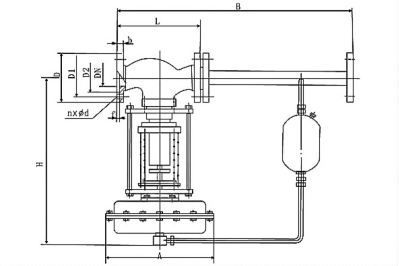

ZYS Self-Operated Pressure Reducing Valve Assembly View Drawing
ZYS Self-Operated Pressure Reducing Valve Assembly Dimensions Table
| 公称通径(DN) | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||
| L | PN16、40 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | |
| PN64 | 230 | 230 | 260 | 260 | 300 | 340 | 380 | 430 | 500 | 550 | 650 | ||
| B | 233 | 332 | 373 | 522 | 673 | 980 | 1200 | ||||||
| H | 压 力 调 节 范围 | 15~140 | 475 | 520 | 540 | 710 | 780 | 840 | 880 | 915 | |||
| 120~300 | 455 | 500 | 520 | 690 | 760 | 800 | 870 | 880 | |||||
| 280~500 | 450 | 490 | 510 | 680 | 750 | 790 | 860 | 870 | |||||
| 480~1000 | 445 | 480 | 670 | 740 | 780 | 850 | 860 | ||||||
| 600~1500 | 445 | 570 | 600 | 820 | 890 | 950 | 950 | 1000 | |||||
| 1000~2500 | 445 | 570 600 820 890 950 950 1000 | |||||||||||
| A | 压 力 调 节 范围 | 15~140 | Ф282 | Ф308 | |||||||||
| 120~300 | Ф232 | ||||||||||||
| 280~1000 | Ф196 | Ф196 | Ф282 | ||||||||||
| 600~2500 | Ф85 Ф96 | ||||||||||||

Model:
Y43H-10C/Y43H-25C/Y43H-40C/Y43H-64C/Y43H-10P/Y43H-25P/Y43H-40P/Y43H-64PSpecification:
DN15-500Pressure:
PN16,PN25,PN40,PN64,PN10Material:
Cast Steel、Stainless Steel
Model:
Y45H-10C/Y45H-25C/Y45H-40C/Y45H-64C/Y45H-10P/Y45H-25P/Y45H-40P/Y45H-64PSpecification:
DN50-500Pressure:
PN16,PN25,PN40,PN64,PN10Material:
Cast Steel、Stainless Steel
Model:
ZZVP - 16C/ZZVP - 16C/ZZVP - 10B/ZZVP - 16P/ZZVP - 16P/ZZVP - 10B/PSpecification:
DN20-DN150Pressure:
PN10,PN16Material:
Stainless steel,carbon steel
Is the noise from the pressure reducing valve disturbing? Understand the 3 fundamental reasons and solutions in one article
The harsh noise generated by pressure reducing valves during operation is not only an environmental pollution problem, but also a precursor to equipment failure. This article will delve into the three fundamental causes of noise generated by pressure reducing valves - mechanical vibration noise, fluid dynamics noise, and aerodynamic noise, and provide professional solutions.
1、 Mechanical vibration noise: a test of design and process
Mechanical vibration noise is the most common type of noise in pressure reducing valves, mainly divided into two forms:
1. Low frequency vibration noise
Causes:
Medium jet and pressure pulsation
The outlet flow rate of the valve is too fast
Unreasonable pipeline layout
Insufficient rigidity of moving parts inside the valve
2. High frequency vibration noise (resonance phenomenon)
Causes:
The natural frequency of the valve coincides with the excitation frequency of the medium
Easy to occur within a specific decompression range
Sensitive to changes in working conditions, with significant noise fluctuations
Solution:
Optimize the clearance design between the liner and valve stem
Improve machining accuracy
Adjust the natural frequency of the valve
Enhance the rigidity of active components
Select appropriate damping materials
2、 Fluid Dynamics Noise: Challenges in Fluid Control
The turbulence and eddies generated when the fluid passes through the pressure reducing valve can cause significant noise problems.
1. Turbulent noise
Features: Low frequency, low noise level
Cause: Interaction between turbulent fluid and the inner surface of valves/pipelines
Impact: Usually does not constitute a serious noise problem
2. Cavitation noise (the most harmful)
Production mechanism:
During the depressurization process, the fluid flow velocity reaches the critical value
The liquid begins to vaporize, producing bubbles
Bubble explosion under pressure generates shock waves
Local instantaneous pressure can reach 196 MPa
Key data:
Initial value of Δ p: the critical pressure reduction value at which liquid begins to cavitation
Exceeding this value leads to a sharp increase in noise
Preventive measures:
Control the actual pressure reduction value below the critical value
Optimize the design of valve disc fluid direction
Adopting a multi-stage decompression structure
Choose anti cavitation materials
3、 Aerodynamic noise: characteristics of compressible fluids
When compressible fluids such as steam pass through pressure reducing areas, unique noise issues arise:
Production principle:
Conversion of fluid mechanical energy into sound energy
Interaction between high-speed airflow and valve structure
Sudden pressure changes cause gas expansion and sound emission
Control method:
Optimize the design of pressure reducing flow channels
Using mufflers or diffusers
Control the outlet flow rate
Reasonably set back pressure
Comprehensive solutions and selection suggestions
Preventive measures during the design phase
Parameter optimization: Accurately calculate operating parameters to ensure that the pressure reduction value is within the design range
Structural design: Adopting streamlined flow channels to reduce turbulence generation
Material selection: Select special alloys with high rigidity and cavitation resistance
Frequency analysis: avoid the natural frequency of the valve coinciding with the excitation frequency
Key points for installation and maintenance
Correct installation: Ensure the length of the front and rear straight pipe sections to avoid sharp bends
Regular testing: Establish a noise monitoring mechanism to detect problems early on
Timely maintenance: replace worn parts and maintain the best condition of the valve
Brand selection recommendation
High pressure differential operating condition: choose multi-stage pressure reducing valve
Liquid medium: focus on anti cavitation design
Gas/Steam: Focus on Aerodynamic Optimization
Sensitive environment: Choose a low-noise dedicated model
Professional Technical Summary
The essence of the noise problem of pressure reducing valves is the process of energy conversion and release. Fundamentally, all noise issues are closely related to the rationality of valve design, manufacturing process accuracy, and compatibility with operating conditions. Through scientific selection, correct installation, and standardized maintenance, it is entirely possible to control the noise of the pressure reducing valve within an acceptable range.
Immediate action suggestion: If you are troubled by pressure reducing valve noise, it is recommended to first record the noise characteristics (frequency, time period, change pattern), check whether the operating parameters deviate from the design values, and promptly contact professional technicians for diagnosis and treatment.
Keywords of this article: pressure reducing valve noise, mechanical vibration noise, cavitation noise, fluid dynamics noise, pressure reducing valve failure, valve noise reduction, industrial noise control, equipment maintenance
Extended reading: For more professional knowledge about industrial valve selection and maintenance, please follow our technical column to obtain the latest solutions and industry practice cases.
