BQ41F Jacket Ball Valve Overview

The BQ41F Jacket Ball Valve is a specialized valve that integrates an insulation jacket on the exterior of a standard flanged ball valve. It is primarily used in pipeline systems requiring temperature maintenance or prevention of media solidification. The valve body is made of cast steel or stainless steel and features an integrated or welded jacket layer, allowing circulating heating media (such as steam, hot water, or thermal oil) within the jacket to continuously heat or insulate the valve body and internal passages.The valve operates by rotating the ball 90 degrees to open or close, and the sealing pair typically utilizes temperature-resistant PTFE or enhanced materials. This valve is specifically designed for industries such as petrochemicals, asphalt, oil and fat processing, food, and pharmaceuticals, where it is used to transport high-viscosity, crystallization-prone, or flow‑maintaining media, ensuring continuity and stability in process flows.

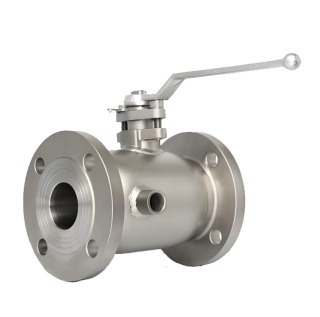

BQ41F Jacket Ball Valve Product Image

BQ41F Jacket Ball Valve Features

1. Efficient Insulation Design

  The valve body integrates an insulation jacket that enables uniform heating of the valve body and flow passages through circulating external thermal media. This effectively prevents media from solidifying, crystallizing, or losing temperature within the valve, thereby maintaining process temperatures.

2. Reliable Sealing and Temperature Resistance

  Equipped with high‑temperature‑resistant seat sealing materials (such as reinforced PTFE, PPL, or metal seals), ensuring consistent sealing performance under insulated operating conditions and temperature fluctuations.

3. Flexible Operation and Low Heat Loss

  The insulation jacket is designed separately from the operating mechanism, allowing valve operation to remain unaffected by the heating system. The jacket covers critical areas with high thermal efficiency and minimal energy loss.

4. Compact Structure and Multiple Connection Options

  The jacket is integrated or welded to the valve body, providing a compact and robust structure. Various connection types (e.g., for steam, hot water) are available for thermal media inlet/outlet, facilitating easy integration into plant heating systems.

5. Wide Applicability to Different Media

  Particularly suitable for media prone to solidification or high viscosity, such as asphalt, heavy oil, resin, chocolate, and chemical slurries. This design effectively addresses common industrial challenges like clogging and difficult operation at valve points.
