Q11F NPT One-Piece Ball Valve Overview

The Q11F NPT One-Piece Ball Valve s is a compact ball valve featuring an integrated body structure and internal thread connections. The valve body is typically machined from a single piece of brass or stainless steel. With its one-piece molded design, the valve offers a simple yet robust structure. It achieves quick 90-degree on/off operation by rotating the stem to drive the ball, while the seat is made of soft sealing materials such as polytetrafluoroethylene (PTFE) to ensure reliable sealing. The integrated structure eliminates the risk of connection leaks common in split-type valves. Its small size and excellent sealing performance make it suitable for non‑corrosive media such as water, oil, and air. The typical working pressure ranges from PN16 to PN40. Widely used in small equipment, instrument measurement, pneumatic systems, and general industrial pipelines, it is an economical and reliable miniature shut‑off valve.

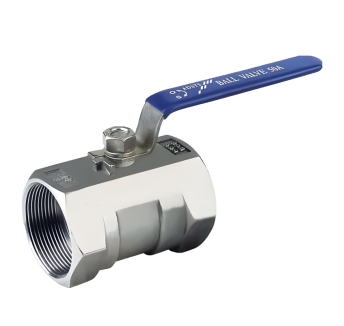

Q11F NPT One-Piece Ball Valve Product Image

the Q11F NPT One-Piece Ball Valve s Features

1. One-Piece Body Structure: The valve body is manufactured using integral molding technology, with no connecting seams. This fundamentally eliminates the risk of body leakage and provides a more robust and reliable structure.

2. Compact Internal Thread Connection: Equipped with G or NPT internal threads, it requires minimal installation space, making it ideal for compact piping layouts in space-restricted areas.

3. Excellent Sealing Performance: The PTFE seat forms a soft seal with the ball, ensuring superior sealing performance and low leakage rates. The low coefficient of friction results in lighter operating torque.

4. Easy Maintenance: Despite its one-piece design, the seat is generally detachable and replaceable. Maintenance involves only disassembling the stem-related components for seal replacement.

5. Cost-Effective and Durable: The one-piece design reduces the number of parts, lowering manufacturing costs. Brass or stainless steel construction offers corrosion resistance and long service life, making it a highly cost-effective valve for small-flow control applications.
