Q41F Flange Three-Piece Ball Valve Overview

The Q41F Flange Three-Piece Ball Valve is a versatile industrial ball valve featuring a three-piece split-body design with flange connections. The valve body typically consists of two end flanges and a central body section joined by high-strength bolts, and is made from materials such as cast steel, stainless steel, or cast iron. The valve operates by rotating the stem to drive the ball for rapid 90-degree opening and closing. The seat employs soft sealing materials like PTFE to ensure reliable sealing. With a robust structure that facilitates easy disassembly and maintenance, this valve is suitable for media such as water, steam, oil, and non-corrosive fluids, with a typical working pressure range of PN16 to PN40. It is widely used in petroleum and chemical industries, power generation, water supply and drainage systems, and general industrial pipelines.

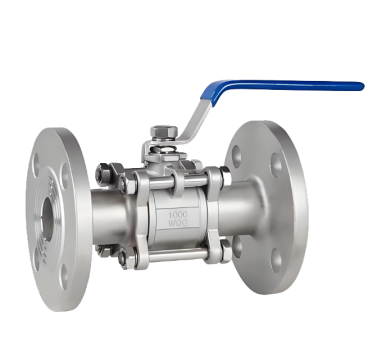

Q41F Flange Three-Piece Ball Valve Product Image

Q41F Flange Three-Piece Ball Valve Features

1. Easy Maintenance with Three-Piece Structure:

  The valve body adopts a three-piece bolted design, allowing internal cleaning, inspection, or seal replacement of the middle section without disassembling the valve from the pipeline. This significantly reduces maintenance difficulty and downtime.

2. Stable and Reliable Flange Connection:

  Equipped with standard flange connections for easy installation and excellent sealing performance, suitable for medium- to low-pressure industrial pipeline systems.

3. Excellent Soft Sealing Performance:

  The PTFE seat forms a soft seal with the ball, ensuring reliable sealing with low leakage rates. The low opening/closing torque enables smooth and effortless operation.

4. Robust Structure and Wide Applicability:

  The valve body features a sturdy design capable of withstanding certain pipeline stresses. Suitable for various non-corrosive industrial media, offering strong versatility.

5. Cost-Effective and High Value:

  Relatively low manufacturing costs, simple maintenance, and long service life make it an economical and reliable shut-off valve choice for industrial pipeline systems.
