Q61F Butt-Weld Three-Piece Ball Valve Overview

The Q61F Butt-Weld Three-Piece Ball Valve is a high-performance, compact ball valve featuring an integrally forged steel body, butt-weld ends, and a three-piece bolted construction. The valve body, forged from materials such as A105 steel, consists of three sections securely joined by high-strength bolts, with butt-weld ends for permanent, integral connection to high-pressure pipelines. Operation involves a 90-degree rotation of the valve stem to actuate the ball for rapid opening or closing. The sealing assembly utilizes soft materials like PTFE or optional metal hard seats to ensure tight shutoff.This design combines high-pressure integrity, zero-leakage welded connections, and easy in-line maintenance. It is specifically engineered for demanding high-pressure, small-bore applications in confined spaces requiring high reliability, such as in petrochemical plants, power stations, and high-pressure pipeline systems.

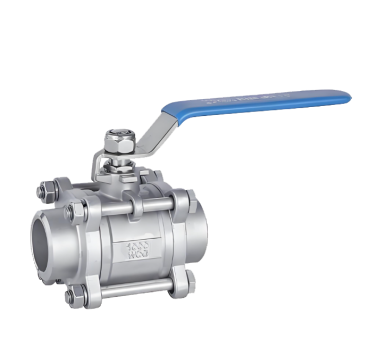

Q61F Butt-Weld Three-Piece Ball Valve Product Image

Q61F Butt-Weld Three-Piece Ball Valve Features

1.  Butt-Weld Connection for High-Pressure, Zero Leakage: Featuring permanent butt-weld ends for direct pipeline welding, this design completely eliminates leakage risks at connection points. It is ideally suited for high-pressure, high-temperature, and hazardous fluid (flammable/explosive) service conditions.

2.  Three-Piece Structure for Easy Maintenance: The valve body employs a three-piece bolted design. This allows for internal inspection, cleaning, or seal replacement by simply removing the center section, without the need to cut the valve out of the pipeline. This design significantly reduces maintenance downtime and associated costs.

3.  Forged Steel Body for High-Pressure & Compact Design: The valve body is forged from solid steel, ensuring high material density, superior strength, and a compact structure. It is an ideal choice for small-bore, high-pressure piping systems, offering excellent pressure-bearing capability.

4.  Reliable Sealing & Wide Adaptability: Standard soft seats (e.g., PTFE) ensure bidirectional bubble-tight shutoff. Optional metal hard seats are available to accommodate high-temperature services or media containing particulate matter, providing a wide range of application flexibility.

5.  Long Service Life & Cost-Effectiveness: The forged steel construction offers good corrosion resistance and a long design life. The butt-weld connection eliminates flange costs, and the three-piece design reduces lifecycle maintenance expenses, resulting in high overall cost-effectiveness.
