Z641W pneumatic gate valve is a rising stem wedge gate valve driven by pneumatic actuator and connected by flange. It drives the cylinder piston or diaphragm through compressed air, which drives the valve stem to rise and fall, causing the wedge gate to move vertically and achieve the opening and closing of the pipeline. The valve body is made of stainless steel or carbon steel, and the sealing surface is directly machined from the valve body material ("W" shape), forming a hard metal to metal seal. This valve integrates a manual operating mechanism, which can perform emergency operations in case of gas supply interruption. It is designed specifically for automated process control, remote operation, and frequent opening and closing situations, and is an ideal execution unit for intelligent management in industrial pipeline systems. Widely used in automation control systems for petrochemical, power, metallurgy, water treatment, food and pharmaceutical, and general industrial pipelines, as a key cutoff device for remote operation, frequent opening and closing, or process interlocking control. Especially suitable for situations that require centralized monitoring, unmanned operation, or remote operation in hazardous environments.

Z641W Pneumatic Flanged Gate Valve Product Drawing
feature
1. Pneumatic drive, automated control
Equipped with single acting or double acting cylinder actuators, powered by compressed air, capable of receiving electrical signals from DCS/PLC systems (converted through solenoid valves), achieving remote centralized control and automated operation of valves.
2. Clear stem structure, intuitive valve position
The valve stem rises and falls with the gate, and the valve opening can be directly determined by observing the height of the valve stem extension, which is convenient for on-site inspection and debugging.
3. Valve body sealing surface ("W" type)
The sealing surface is directly processed from valve body materials such as stainless steel and carbon steel, which is economical, practical, wear-resistant, and suitable for conventional media such as water, oil, and gas.
4. Flange connection, stable and reliable
Using standard flange connections (such as RF flanges), the connection strength is high, the sealing performance is good, and it is easy to install and disassemble.
5. Manual emergency operation
The top of the actuator is equipped with a handwheel or square head, which can be manually operated in case of gas supply interruption or debugging, ensuring that the system is controllable in any situation.
6. Optional attachments and expanded functionality
Accessories such as solenoid valves, limit switches (feedback devices), locators, and filter pressure reducing valves can be installed to achieve switch signal feedback, precise adjustment, and air source processing.

Z641W Pneumatic Flanged Gate Valve - Structural Drawing
Part name and material list
| 阀体/阀盖valve cover | ZGICr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12M02Ti | ZG00Cr17Ni14M02 | WCB |
| 零件名称part name | ZGICr18Ni9Tit系列 | ZG00Cr18Ni10系列 | ZG1Cr18Ni12M02Ti系列 | ZG00Cr17Ni14M02系列 | WCB系列 |
| 闸板plate | ZGICr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12M02Ti | ZG00Cr17Ni14M02 | 1Cr13 |
| 阀杆stem | 1Cr18Ni9Ti | 00Cr18Ni10 | 1Cr18Ni12M02Ti | 00Cr17Ni14M02 | 1Cr13 |
| 填料filiing | PTFE编织Woven | PTFE编织Woven | PTFE编织Woven | PTFE编织Woven | 石墨Graphite |
| 垫片Gasket | 304L+PTFE | 304L+PTFE | 316+PTFE | 316L+PTFE | 石墨Graphite |
| 压盖Gland | ZGICr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12M02Ti | ZG00Cr17Ni14M02系列series | WCB |
| 填料压环Filler Pressure Ring | 1Cr18Ni9Ti | 00Cr18Ni10 | 1Cr18Ni12M02Ti | 00Cr17Ni14M02 | 1Cr13 |
| 螺栓Bolt | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni2 | 35CrMoA |
| 螺母nut | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 45 |
Performance Specification Sheet
| 性能规范表 Performance Specification Sheet | ||
| 公称压力Nominal pressure | 6.4 | MPa |
| 强度试验压力Strength test pressure | 9.6 | |
| 密封试验压力Seal test pressure | 7.04 | |
| 适用温度Applicable temperature | ≤80 | ℃ |

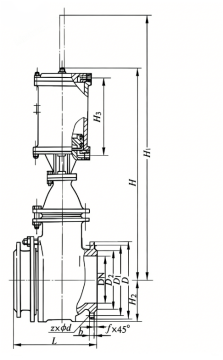

Z641W Pneumatic Flanged Gate Valve - Outline Drawing
Outline Dimension Table
1.6MPa主要外形及连接尺寸:Main dimensions and connection specifications for 1.6MPa:
| 尺寸size | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L | mm | 130 | 150 | 160 | 180 | 200 | 250 | 265 | 280 | 300 | 325 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 800 |
| H | mm | 175 | 180 | 210 | 210 | 250 | 350 | 373 | 433 | 500 | 614 | 674 | 818 | 1225 | 1415 | 1630 | 1780 | 2050 | 2181 | 2599 |
| T | mm | 180 | 180 | 200 | 200 | 200 | 240 | 240 | 280 | 320 | 360 | 360 | 400 | 450 | 500 | 500 | 600 | 720 | 720 | 720 |
2.8MPa主要外形及连接尺寸:Main dimensions and connection specifications for 1.6MPa:
| 尺寸Size | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L | mm | 130 | 150 | 160 | 180 | 200 | 250 | 265 | 280 | 300 | 325 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 800 |
| H | mm | 175 | 180 | 210 | 210 | 250 | 350 | 373 | 433 | 500 | 614 | 674 | 818 | 1225 | 1415 | 1630 | 1780 | 2050 | 2181 | 2599 |
| T | mm | 180 | 180 | 200 | 200 | 200 | 240 | 240 | 280 | 320 | 360 | 360 | 400 | 450 | 500 | 500 | 600 | 720 | 720 | 720 |
4.0MPa主要外形及连接尺寸:Main dimensions and connection specifications for 1.6MPa:
| 尺寸size | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | mm | 130 | 150 | 160 | 180 | 200 | 250 | 280 | 310 | 350 | 400 | 450 | 550 | 650 | 750 | 850 | 950 |
| H | mm | 175 | 180 | 210 | 210 | 250 | 350 | 373 | 433 | 500 | 614 | 674 | 818 | 1225 | 1415 | 1630 | 1780 |
| T | mm | 180 | 180 | 200 | 200 | 200 | 240 | 240 | 280 | 320 | 360 | 360 | 400 | 450 | 500 | 500 | 600 |
6.4MPa主要外形及连接尺寸:Main dimensions and connection specifications for 1.6MPa:
| 尺寸size | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | mm | 170 | 190 | 210 | 230 | 240 | 250 | 280 | 320 | 350 | 400 | 450 | 550 | 650 | 750 | 850 | 950 |
| H | mm | 175 | 180 | 210 | 230 | 350 | 359 | 373 | 433 | 500 | 614 | 674 | 818 | 970 | 1145 | 1280 | 1430 |
| T | mm | 120 | 120 | 140 | 160 | 200 | 240 | 280 | 320 | 360 | 400 | 400 | 450 | 560 | 640 | 800 | 800 |
10.0MPa主要外形及连接尺寸:Main dimensions and connection specifications for 1.6MPa:
| 尺寸size | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | mm | 170 | 190 | 210 | 230 | 240 | 250 | 280 | 320 | 350 | 400 | 450 | 550 | 650 | 750 | 850 | 950 |
| H | mm | 175 | 180 | 210 | 230 | 350 | 359 | 373 | 433 | 500 | 614 | 674 | 818 | 970 | 1145 | 1280 | 1430 |
| T | mm | 120 | 120 | 160 | 180 | 240 | 280 | 320 | 360 | 400 | 400 | 450 | 560 | 640 | 640 | 800 | 800 |
16.0MPa主要外形及连接尺寸:Main dimensions and connection specifications for 1.6MPa:
| 尺寸size | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | mm | 170 | 190 | 210 | 230 | 240 | 250 | 280 | 320 | 350 | 400 | 450 | 550 | 650 | 750 | 850 | 950 |
| H | mm | 175 | 180 | 210 | 230 | 350 | 359 | 373 | 433 | 500 | 614 | 674 | 818 | 970 | 1145 | 1280 | 1430 |
| T | mm | 120 | 120 | 140 | 160 | 200 | 240 | 280 | 320 | 360 | 400 | 400 | 450 | 560 | 640 | 640 | 800 |
