Z741H hydraulic gate valve is a rising stem wedge gate valve driven by hydraulic actuator and connected by flange. It drives the piston or cylinder through hydraulic oil to lift the valve stem, causing the wedge gate to move vertically and achieve the opening and closing of the pipeline. The valve sealing surface is welded with alloy steel ("H" type) to form a metal hard seal. This valve integrates a manual operating mechanism for emergency operation in case of hydraulic system failure. It is designed specifically for high thrust, high reliability, and remote automation control applications and is an ideal execution unit in hydraulic control systems for industries such as metallurgy, mining, and power. Widely used in hydraulic control systems in industries such as metallurgy (blast furnaces, converters), mining (slurry transportation), power (boiler feedwater), petrochemicals, water conservancy, and heavy machinery, as a key cutting device for large-diameter, high-pressure differential pipelines. Especially suitable for situations that require high thrust drive, frequent operation, and remote automation control.

Z741H Hydraulic Flanged Gate Valve Product Drawing
1. Hydraulic drive, strong thrust
Equipped with hydraulic cylinder actuator, powered by hydraulic oil, it has high output thrust and smooth opening and closing, especially suitable for gate valve operation under large diameter and high pressure difference conditions.
2. Clear stem structure, intuitive valve position
The valve stem rises and falls with the gate, and the valve opening can be directly determined by observing the height of the valve stem extension, which is convenient for on-site inspection and debugging.
3. Alloy steel hard seal ("H" type)
The sealing surface of the valve disc and seat is welded with alloy steel (such as 13Cr, Stellite), which has high hardness, wear resistance, erosion resistance, reliable sealing, and long service life.
4. Flange connection, stable and reliable
Using standard flange connections (such as RF flanges), the connection strength is high, the sealing performance is good, and it is easy to install and disassemble.
5. Manual emergency operation
The top or side of the hydraulic cylinder is equipped with a manual pump or handwheel mechanism, which can be manually operated in case of hydraulic system failure or debugging, ensuring that the system is controllable in any situation.
6. Remote automation control
It can be integrated with hydraulic control systems, receive electrical signals for remote automatic control, and is suitable for automation systems that require centralized monitoring or process interlocking.
7. Pressure holding and locking function
The hydraulic system can be equipped with pressure maintaining valves or locking devices to keep the valve position unchanged in case of pressure loss, preventing accidental action.
Z741H Hydraulic Flanged Gate Valve Structure Diagram
Part name and material list
| 阀体、阀盖闸板、阀座 Body,Bonnet,Gate Plate,Seat | 阀杆 Stem | 阀杆螺母填料 Stem Nut &Packing | 手轮 Handwheel |
| 碳素钢 Carbon Steel | 优质碳钢 + 硬质合金或不锈钢 High-quality Carbon Steel + Hard Alloy or Stainless Steel | 铝青铜、石墨石棉盘根 Aluminum Bronze,Graphite Asbestos Packing | 可锻铸铁 Malleable Cast Iron |
| 铬镍钛钢 Cr-Ni-Ti Steel | 不锈钢、不锈钢 + 硬质合金 Stainless Steel/Stainless Steel + Hard Alloy | 铬镍钛不锈钢、铝青铜、聚四氟乙烯 Cr-Ni-Ti Stainless Steel,Aluminum Bronze,PTFE | 可锻铸铁 Malleable Cast Iron |
| 铬镍钼钛不锈钢 Cr-Ni-Mo-Ti Stainless Steel | 不锈钢、不锈钢 + 硬质合金 Stainless Steel/Stainless Steel + Hard Alloy | 铬镍钛不锈钢、铝青铜、烯石棉盘根 Cr-Ni-Ti Stainless Steel,Aluminum Bronze,Asbestos Packing | 可锻铸铁 Malleable Cast Iron |
| 铬钼钢 Cr-Mo Steel | 合金钢 + 硬质合金 Alloy Steel + Hard Alloy | 铬钼铝钢、铝青铜、柔性石墨 Cr-Mo-Al Steel,Aluminum Bronze,Flexible Graphite | 可锻铸铁 Malleable Cast Iron |
Performance Specification Sheet
| 公称压力 Nominal Pressure | PN PN |
| 壳体试验 Shell Test | 1.5 Mpa 1.5 Mpa |
| 密封试验 Seal Test | 1.1 Mpa 1.1 Mpa |
| 工作温度 Operating Temperature | 橡胶≤80℃ 四氟密封≤180℃ 硬密封≤425℃ Rubber ≤80℃,PTFE seal ≤180℃,Metal seal ≤425℃ |
| 适用介质 Suitable Medium | 糖浆、纸浆、污水、煤浆、灰、渣水混合物 Syrup,pulp,sewage,coal slurry,ash,slag water mixture |

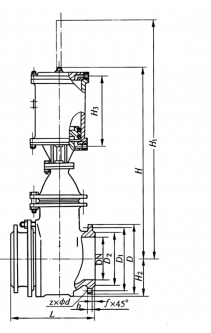

Outline Drawing of Z741H Hydraulic Flanged Gate Valve
Outline Dimension Table
| MPa | DN | L | D | D1 | D2 | H | N-M | D0 |
| 1.0 | 50 | 43 | 160 | 125 | 100 | 330 | 4-M16 | 180 |
| 65 | 46 | 180 | 145 | 120 | 360 | 4-M16 | 180 | |
| 80 | 46 | 195 | 160 | 135 | 390 | 4-M16 | 220 | |
| 100 | 52 | 215 | 180 | 155 | 440 | 8-M16 | 220 | |
| 125 | 56 | 245 | 210 | 185 | 510 | 8-M16 | 230 | |
| 150 | 56 | 280 | 240 | 210 | 600 | 8-M20 | 280 | |
| 200 | 60 | 335 | 295 | 265 | 700 | 8-M20 | 360 | |
| 250 | 68 | 390 | 350 | 320 | 840 | 12-M20 | 360 | |
| 300 | 78 | 440 | 400 | 368 | 960 | 12-M20 | 400 | |
| 350 | 78 | 500 | 460 | 428 | 1110 | 16-M20 | 400 | |
| 400 | 102 | 565 | 515 | 482 | 1250 | 16-M22 | 400 | |
| 450 | 114 | 615 | 565 | 532 | 1380 | 20-M22 | 530 | |
| 500 | 127 | 670 | 620 | 585 | 1530 | 20-M22 | 530 | |
| 600 | 154 | 780 | 725 | 685 | 1800 | 20-M27 | 600 | |
| 700 | 165 | 895 | 840 | 800 | 2150 | 24-M27 | 600 | |
| 800 | 190 | 1010 | 950 | 898 | 2420 | 24-M30 | 680 | |
| 900 | 203 | 1110 | 1050 | 1005 | 2680 | 28-M30 | 680 | |
| 1000 | 216 | 1220 | 1160 | 1115 | 3100 | 28-M30 | 700 | |
| 1200 | 254 | 1450 | 1380 | 1325 | 3450 | 32-M36 | 800 | |
| 1.6 | 50 | 43 | 160 | 125 | 99 | 330 | 4-M16 | 180 |
| 65 | 46 | 185 | 145 | 120 | 360 | 4-M16 | 180 | |
| 80 | 46 | 200 | 160 | 135 | 390 | 8-M16 | 220 | |
| 100 | 52 | 220 | 180 | 155 | 440 | 8-M16 | 220 | |
| 125 | 56 | 250 | 210 | 185 | 510 | 8-M16 | 230 | |
| 150 | 56 | 285 | 240 | 210 | 600 | 8-M20 | 280 | |
| 200 | 60 | 340 | 295 | 265 | 700 | 12-M20 | 360 | |
| 250 | 68 | 405 | 355 | 310 | 840 | 12-M22 | 360 | |
| 300 | 78 | 460 | 410 | 375 | 960 | 12-M22 | 400 | |
| 350 | 78 | 520 | 470 | 435 | 1110 | 16-M22 | 400 | |
| 400 | 102 | 580 | 525 | 485 | 1250 | 16-M27 | 400 | |
| 450 | 114 | 640 | 585 | 545 | 1380 | 20-M27 | 530 | |
| 500 | 127 | 715 | 650 | 609 | 1530 | 20-M30 | 530 | |
| 600 | 154 | 840 | 770 | 720 | 1800 | 20-M36 | 600 | |
| 700 | 165 | 910 | 840 | 788 | 2150 | 24-M36 | 600 | |
| 800 | 190 | 1025 | 950 | 898 | 2420 | 24-M36 | 680 | |
| 900 | 203 | 1125 | 1050 | 998 | 2680 | 28-M36 | 680 | |
| 1000 | 216 | 1255 | 1170 | 1110 | 3100 | 28-M42 | 700 |

Model:
Z41T-5K/Z41T-10K/Z41T-20K/Z41H-5K/Z41H-10K/Z41H-20KSpecification:
DN50-DN500Pressure:
5K-20KMaterial:
ductile iron, cast steel, stainless steel
Model:
Z41H-16C/Z41H-25C/Z41H-40C/Z41H-64C/Z41H-16P/Z41H-25P/Z41H-40P/Z41H-64P/Z41H-16R/Z41H-25R/Z41H-40R/Z41H-64RSpecification:
DN20-DN600Pressure:
PN16-PN64Material:
cast steel, stainless steel
Model:
Z41W-16T/Z41W-25TSpecification:
DN15-DN600Pressure:
PN16-PN25Material:
Aluminum nickel bronze
What are the structural characteristics of knife gate valves? A detailed explanation of their six major advantages and application areas
Description: This article provides a detailed analysis of the unique structure, six core characteristics, and working principle of knife gate valves. It explains how they achieve automatic control through accessories and are widely used in industries such as chemical, paper, and wastewater treatment. They are ideal sealing and throttling valves.
Text:
The knife gate valve, as a high-performance industrial valve, is widely used in various fields such as chemical industry, coal, sugar manufacturing, sewage, paper making, etc., due to its unique structure and excellent performance. It is particularly suitable for regulating, throttling, and cutting off media in pipelines. This article will provide an in-depth analysis of the structural composition and core characteristics of the knife gate valve.
I. Basic Structure and Working Principle of Knife Gate Valve The knife gate valve is primarily composed of left/right valve bodies, U-shaped sealing rings, gate plates, valve stems, brackets, and driving devices (such as cylinders). Its core opening and closing actions are typically driven by cylinders. With supporting accessories such as solenoid valves and proximity switches, it can easily achieve on-off control, signal feedback, or continuous automatic adjustment, demonstrating a high degree of automation integration.
II. Six Core Structural Features of Knife Gate Valves The excellent performance of knife gate valves stems from their carefully designed structure, which is mainly reflected in the following six aspects:
The wafer-style design is compact and lightweight. Utilizing an advanced wafer-style connection structure, it significantly reduces the volume and weight compared to traditional flange valves, saving installation space and reducing the load on the pipeline system.
The full-bore flow passage provides a completely open straight-through channel when the non-clogging valve is opened, allowing the medium to pass through unimpeded. This design effectively prevents the deposition and clogging of media such as slurry and particles within the valve body, making it particularly suitable for applications involving fibers or solid particles, such as in paper making and wastewater treatment.
U-shaped seal ring, excellent sealing performance. A specially designed elastic U-shaped seal ring is used as the main seal, which can adaptively compensate for wear, ensuring that the valve maintains good bidirectional sealing performance and low leakage rate even after long-term use.
The elastic valve seat facilitates the maintenance of the gate plate's external seal, which is achieved by an elastic sealing strip embedded in the valve body. This sealing strip can be adjusted or quickly replaced using screws and a pressure plate, making maintenance simple and greatly extending the service life of the valve while reducing maintenance costs.
Streamlined design ensures minimal flow resistance. Due to the straight and smooth channels, as well as the thin and sharp gate plate (shaped like a blade), the flow resistance experienced by the medium is negligible, contributing to a reduction in system energy consumption.
Modular structure, convenient for installation and maintenance. The overall structure is designed to be simple and highly modular, making installation, disassembly, and routine maintenance very convenient, significantly reducing downtime for maintenance.
III. Summary of Application Scenarios Due to its prominent features of anti-clogging, easy adjustment, good sealing, and low flow resistance, the knife gate valve has become an ideal choice for handling harsh working conditions such as viscous media, slurry, dust mixtures, and sewage. It plays an irreplaceable key role in pulp adjustment in the paper industry, material liquid transportation in the chemical industry, emission control in sewage treatment plants, and solid material pipelines in industries such as coal and sugar manufacturing.
In summary, the knife gate valve is a valve solution that highly combines practicality, reliability, and economy. Its innovative structural design directly addresses common pain points in industrial applications, making it an indispensable and important component in modern process industry pipeline systems.
