Overview
The Z41W-150LB American Standard Gate Valve is a rising stem gate valve designed and manufactured according to American standards (such as API and ANSI). It controls fluid flow by vertically lifting or lowering the gate plate. During operation, the valve stem moves in tandem with the gate plate, providing clear position indication. The valve's core feature lies in its “W” designation, indicating a sealing surface machined directly from the valve body material. This typically forms a metal-to-metal hard seal pairing with the metal gate. Rated at 150LB pressure, it meets corresponding American standard pressure-temperature ratings and is suitable for various demanding industrial applications. Widely adopted in petroleum, chemical, power generation, natural gas, and shipbuilding industries adhering to American standards or requiring international compatibility, this valve reliably serves as shut-off equipment in pipelines transporting water, steam, petroleum products, natural gas, and non-aggressive media. It plays a critical role in applications demanding strict isolation and complex operating conditions.

Z41W-150LB美标闸阀产品图
Z41W-150LB American Standard Gate Valve Product Drawing
Features:
1. American Standard Pressure Rating: The valve is designed to American standards with a pressure rating of 150 lbs (150LB). Its dimensions, structural length, and performance testing comply with relevant American standards, ensuring international compatibility.
2. Metal Hard Sealing: The valve body sealing surface is machined directly from the body material or overlaid with other alloys, forming a hard sealing pair with the metal gate. This design offers wear resistance, high-temperature tolerance, and suitability for various harsh media.
3. Rising Stem Structure: The valve stem's up/down position is clearly visible, allowing operators to accurately determine the valve's open status. This facilitates system process control and safe production.
4. Low Flow Resistance, Unobstructed Flow: Features full-bore or reduced-bore design (typically reduced-bore), with a streamlined passage minimizing fluid resistance. Particularly suitable for petroleum and chemical pipelines with specific pressure drop requirements.
5. Versatility and Durability: Constructed with robust materials like carbon steel or stainless steel, ensuring stable and reliable performance. Widely applicable for diverse media including water, steam, petroleum products, and natural gas.

Z41W-150LB American Standard Gate Valve Structural Drawing
零部件名称材料:Part Name Material:
| 零件名称Part Name | CF8 | CF3 | CF8M | CF3M |
| 阀体/阀盖Valve Body/Valve Cover | CF8 | CF3 | CF8M | CF3M |
| 闸板Gate Plate | CF8 | CF3 | CF8M | CF3M |
| 阀杆Valve Stem | F304 | F304L | F316 | F316L |
| 填料Packing | PTFE编织PTFE Braided | PTFE编织PTFE Braided | PTFE编织PTFE Braided | PTFE编织PTFE Braided |
| 垫片Gasket | PTFE+304 | PTFE+304L | PTFE+316 | PTFE+316L |
| 压盖Gland | CF8 | CF3 | CF8M | CF3M |
| 填料压环Packing Gland | 304 | 304L | 316 | 316L |
| 螺栓Bolt | A193-B8 | A193-B8 | A193-B8M | A193-B8M |
| 螺母Nut | A194-8M | A194-8M | A194-8M | A194-8M |
性能规范表Performance Specifications Table
| 型号Model | 公称压力(MPa)Nominal Pressure (MPa) | 实验压力 Experimental pressure | 工作温度(℃)Operating Temperature | 适用介质Applicable Media | |||||
| 强度水(MPa)Strength Water (MPa) | 密封(水)空气(MPa)Seal (Water) Air (MPa) | 低压密封空气(MPa) Low Pressure Seal Air (MPa) | |||||||
| Z41H-16C Z41W-16P(R) | 1.6 | 2.4 | 1.8 | 0.6 | ≤425 | 硝酸类Nitric acid compounds | |||
| Z41W-25P(R) | 2.5 | 3.8 | 2.8 | 0.6 | ≤200 | 醋酸类Nitric acid compounds | |||
| Z41W-40P(R) | 4.0 | 6.0 | 4.4 | 0.6 | ≤200 | 硝酸类Nitric acid compounds | |||
| Z41W-64P(R) | 6.4 | 9.6 | 7.0 | 0.6 | ≤200 | 醋酸类Nitric acid compounds | |||
Dimensioning Standards
1. Structural length of valves shall comply with GB 13927.
2. Connecting flanges shall comply with GB/T 17241.6.

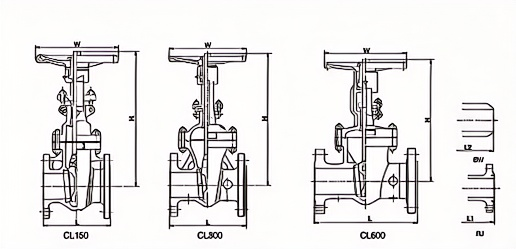

Z41W-150LB美标闸阀外形图
Z41W-150LB ANSI Gate Valve Outline Drawing
外形尺寸表 Dimension Chart
CL150
| 现格(NP3)Current Patternt (NP3) | In | 2 | 212 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 | 30 | 32 | 36 | 40 | 42 | 48 | 60 |
| 结构长度Structural Length | L | 178 | 190 | 203 | 229 | 254 | 267 | 222 | 330 | 358 | 381 | 408 | 432 | 457 | 508 | 610 | 610 | 680 | 711 | 762 | 787 | 914 | 1097 |
| L1 | 191 | 203 | 216 | 241 | 267 | 279 | 305 | 343 | 368 | 384 | 419 | 446 | 470 | 621 | - | - | - | - | - | - | - | - | |
| L | 216 | 241 | 283 | 205 | 381 | 402 | 419 | 457 | 602 | 572 | 610 | 860 | 711 | 813 | 914 | 914 | 965 | 1060 | 1067 | 1116 | - | ||
| 中 心 高 度Center Height | H | 341 | 371 | 402 | 472 | 630 | S87 | 743 | 904 | 1047 | 1172 | 1287 | 433 | 1690 | 1898/ | 2050 | 2330 | 2S33 | 2800 | 一 | - | - | |
| 手轮直径Handwheel diameter | W | 200 | 200 | 250 | 280 | 300 | 300 | 350 | 400 | 450 | 500 | 600 | 880 | 750 | 800 | 一 | - | 二 | |||||
| 重量weight | 20 | 30 | 33 | 49 | 60 | 75 | 120 | 205 | 290 | 400 | 511 | 850 | 789 | 1200 | 1800 | 2580 | 3060 | 3500 | - | - | - | - | |
CL300
| 现格(NPS) nCurrent Pattern | in | 2 | 212 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 18 | 18 | 20 | 24 | 28 | 30 | 32 | 36 |
| 结构长度Structural Length | L | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 | 1346 | 1397 | 1524 | 1727 |
| L1 | 232 | 267 | 298 | 321 | 397 | 419 | 435 | 473 | 518 | 778 | 854 | 930 | 1010 | 1165 | 1371 | 1422 | 1652 | 1765 | |
| L | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 4S7 | 502 | 762 | 838 | 914 | 991 | 1143 | 1346 | 1397 | 1624 | 1727 | |
| 中心高度 Center Height | H | 345 | 376 | 407 | 478 | 635 | 618 | 765 | 929 | 1094 | 1188 | 1320 | 1455 | 1860 | 2030 | - | - | - | |
| 手轮直径Handwheel diameter | W | 200 | 200 | 250 | 300 | 300 | 350 | 400 | 450 | 500 | 550 | 680 | 750 | 820 | - | - | 一 | ||
| 重量weight | 24 | 38 | 47 | 69 | 89 | 123 | 196 | 333 | 440 | 710 | 950 | 1405 | 1720 | 2770 | 3312 | 4100 | 6200 | 6700 | |
CL600
| 现格NPS)Current Patternt (NP3) | in | 2 | 2/2 | 3 | 4 | 6 | 6 | B | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 | 30 | 32 | 38 |
| 结构长度Structural Length | L | 292 | 330 | 356 | 432 | 508 | 659 | 680 | 787 | 638 | 889 | 991 | 1092 | 1184 | 1397 | 1549 | 1651 | 1778 | 2083 |
| L1 | 285 | 333 | 359 | 435 | 511 | 662 | 664 | 791 | 841 | 892 | 894 | 1095 | 1200 | 1407 | 1562 | 1684 | 1794 | 2006 | |
| L | 292 | 230 | 356 | 432 | 508 | 659 | 680 | 787 | 838 | 889 | 891 | 1092 | 1194 | 1397 | 1649 | 1651 | 1778 | 2083 | |
| 中心高度Center Height | H | 377 | 443 | 46S | S26 | 610 | 672 | 820 | 983 | 1120 | 1283 | 1429 | 1572 | 1757 | 1985 | 2230 | 2475 | 2300 | 2050 |
| 手轮直径Handwheel diameter | W | 200 | 250 | 280 | 300 | 400 | 450 | 500 | 680 | 760 | 700 | - | - | - | - | - | - | - | |
| 重量weight | 39 | 52 | 88 | 114 | - | 285 | 413 | 650 | 800 | 1140 | 1700 | 2268 | 2850 | 3500 | - | - | - | - | |

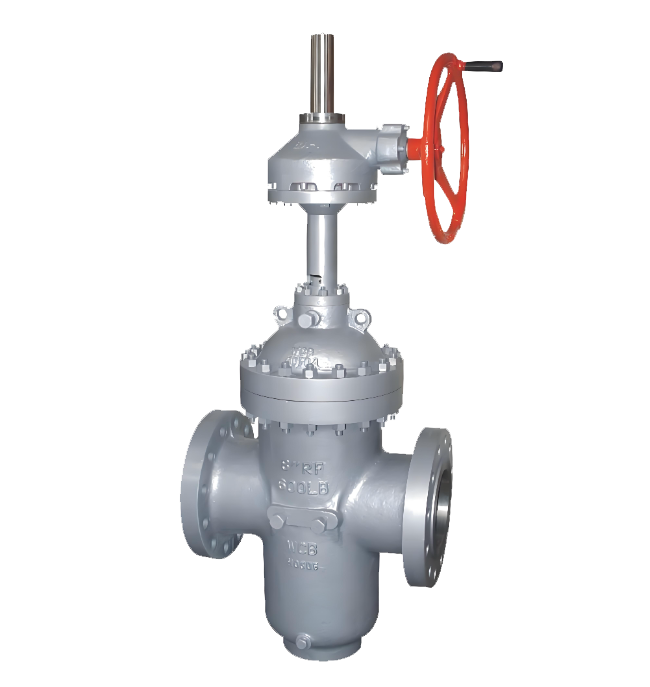

Model:
Z543Y-16C/Z543Y-25C/Z543Y-40C/Z543Y-64C/Z543Y-16P/Z543Y-25P/Z543Y-40P/Z543Y-64P/Z543Y-16R/Z543Y-25R/Z543Y-40R/Z543Y-64RSpecification:
DN50-DN600Pressure:
PN16-PN64Material:
Cast steel, stainless steel
Model:
Z41H-10Q/Z41H-16Q/Z41H-25Q/Z41H-10C/Z41H-16C/Z41H-25C/Z41H-10P/Z41H-16P/Z41H-25PSpecification:
DN15-DN600Pressure:
PN10-PN25Material:
ductile iron, cast steel, stainless steel

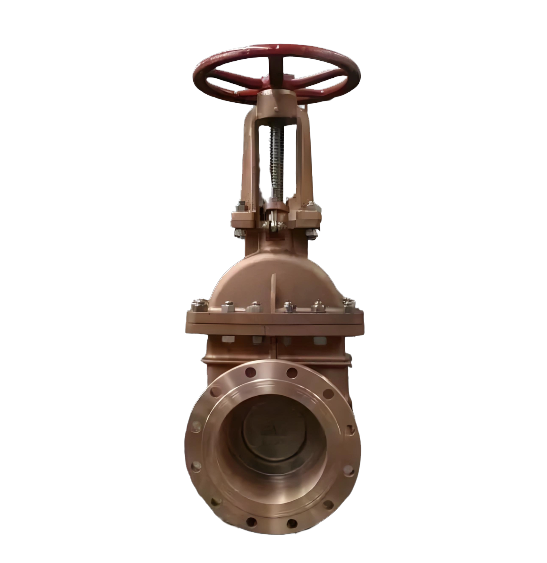

Model:
