Y45H Lever-Operated Pressure Reducing Valve Overview
The Y45H lever-operated pressure reducing valve assembly is a mechanical pressure regulation device consisting of a lever-operated pressure reducing valve, upstream and downstream shut-off valves, a filter, pressure gauges, and accessories. This valve assembly operates based on the lever-and-weight balancing principle, utilizing a lever mechanism to balance the force of the weight or spring against the medium pressure. This drives the valve disc to automatically adjust its opening, achieving stable pressure reduction control. The valve body is constructed from cast steel or stainless steel, featuring a robust and straightforward design suitable for steam, gas, and stable liquid media. Requiring no external energy source, the valve assembly provides stable and reliable regulation. It is widely used in heating systems, power plants, industrial boilers, and other pipeline applications where explosion-proof requirements are stringent or external power is unavailable.

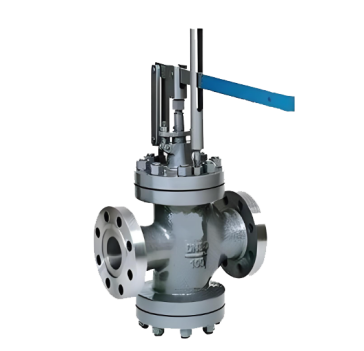

Y45H Lever-Operated Pressure Reducing Valve Product Image
Y45H Lever-Operated Pressure Reducing Valve Features
1. Lever-Based Mechanical Regulation: Utilizes a lever-weight or lever-spring balancing structure. The mechanical principle is straightforward and reliable, requiring no external power, making it suitable for explosion-proof environments and applications without an external energy supply.
2. Stable Regulation and Strong Anti-Interference Capability: The lever system possesses significant inertia, responding gradually to pressure fluctuations. This ensures excellent output pressure stability and strong resistance to disturbances from sudden flow changes.
3. Robust Structure and Simple Maintenance: The lever mechanism is externally accessible, facilitating observation and adjustment. Maintenance does not require complex tools. The design offers high durability and low failure rates.
4. High Safety and Strong Adaptability: Suitable for various media including steam, compressed air, and nitrogen. Particularly well-suited for high-temperature and high-vibration environments, ensuring high safety levels.
5. Cost-Effective and Flexible Configuration: Can be integrated with upstream/downstream valves, filters, and pressure gauges to form a complete valve assembly, or installed independently to meet different on-site requirements.

Y45H Lever-Operated Pressure Reducing Valve Structure Diagram
Parts Name Material List
| 序 号NO. | 名称Name | 材料Material |
| 1 | 阀 体body | WCB |
| 2 | 阀瓣disc | 2Cr13 |
| 3 | 阀座seat | 304 |
| 4 | 阀杆stem | 2Cr13 |
| 5 | 垫片gasket | 柔性石墨graphite |
| 6 | 导向套Guide Sleeve | 2Cr13 |
| 7 | 活塞环piston ring | 合金耐磨铸铁Alloy Wear-Resistant Cast Iron |
| 性能规范表Performance Specification | ||
| 公称压力Nominal Pressure | 1.0-6.4 | Mpa |
| 强度试验压力Shell Test | 1.5-9.6 | |
| 密封试验压力Seal Test | 1.1-7.04 | |
| 适用温度Suitable Temp. | ≤450 | ℃ |
Dimensions Standard Requirements
1. The structural length of the valve shall conform to the standard GB/T12221.
2. The connecting flange shall conform to the standard GB/T 17241.6

Y45H Lever-Operated Pressure Reducing Valve View Drawing
Y45H Lever-Operated Pressure Reducing Valve Dimensions Table
| 公称通径DN | 外 形 尺 寸 | ||||
| L | L1 | H | Hl | l | |
| 50 | 300 | 150 | 520 | 190 | 565 |
| 65 | 340 | 170 | 540 | 205 | 650 |
| 80 | 380 | 190 | 550 | 215 | 650 |
| 100 | 400 | 215 | 580 | 240 | 800 |
| 125 | 430 | 225 | 620 | 275 | 800 |
| 150 | 450 | 230 | 650 | 320 | 800 |
| 200 | 500 | 260 | 790 | 340 | 800 |
| 250 | 550 | 285 | 850 | 370 | 800 |
| 300 | 750 | 395 | 940 | 460 | 900 |
| 350 | 850 | 445 | 990 | 530 | 900 |
| 400 | 950 | 550 | 1120 | 660 | 1000 |
| 500 | 1130 | 680 | 1660 | 800 | 1000 |
Y45HY杠杆式减压阀流量系数(Cv):
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 500 |
| Cv | 20 | 25 | 50 | 60 | 70 | 110 | 150 | 230 | 420 | 540 | 710 | 1020 |
