Overview

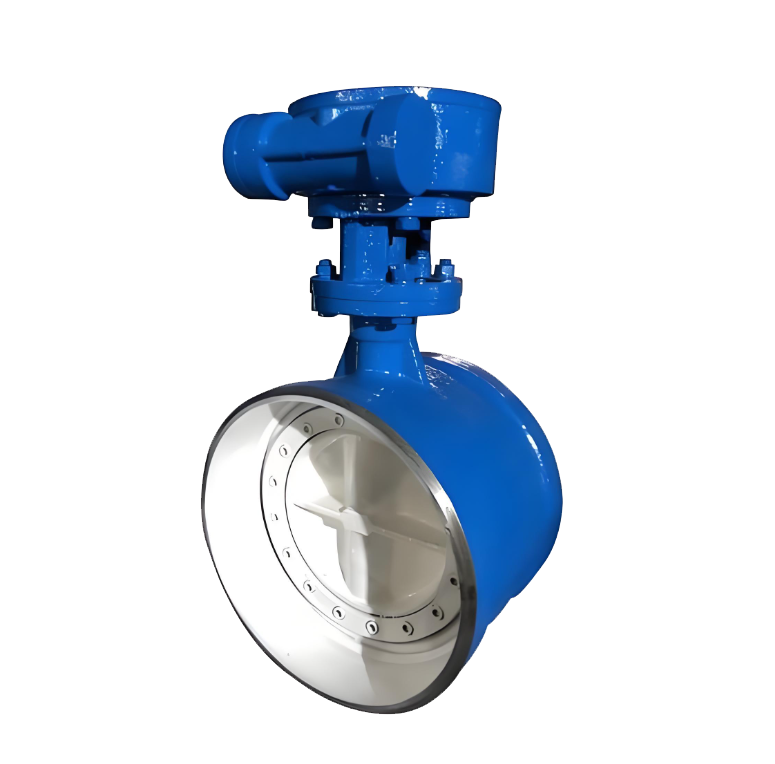

The D363H triple eccentric hard seal butt welded butterfly valve is a high-performance butterfly valve designed based on a triple eccentric structure, which achieves valve opening and closing and flow regulation by rotating the butterfly plate 90 ° around its axis of rotation. Its core features lie in three key eccentric designs: eccentricity between the valve stem axis and the butterfly plate sealing surface, eccentricity between the valve stem axis and the pipeline channel axis, and offset between the conical axis of the butterfly plate sealing surface and the pipeline channel axis. This structure enables the butterfly plate to rotate completely out of contact with the metal hard sealing ring (such as stainless steel, hard alloy) during the opening and closing process. When closed, the bi-directional metal seal is achieved through the wedge-shaped compression effect between the butterfly plate and the valve seat. The valve body adopts butt welding connection method, directly welded with the pipeline, suitable for high temperature, high pressure and corrosive medium working conditions. The driving mode can be adapted to manual, electric, pneumatic or hydraulic devices, and is suitable for reliable cut-off and regulation control of harsh working conditions in industries such as petroleum, chemical, and power.

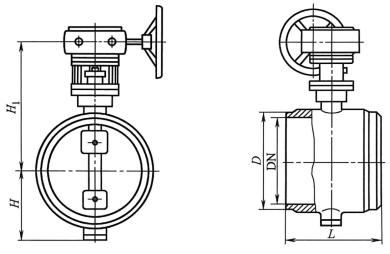

D363H Three Eccentric Hard Seal Butt Welding Butterfly Valve Product Drawing

feature

1. Triple eccentric sealing structure: adopting a composite design of eccentricity between the valve stem axis and the sealing surface, eccentricity between the valve stem axis and the pipeline axis, and eccentricity of the sealing surface cone angle, achieving frictionless opening and closing of the butterfly plate throughout the entire process, with a hard metal contact of the sealing pair, reliable sealing, and long service life.

2. Bidirectional metal hard seal: The butterfly plate and the welded hard alloy valve seat form a wedge-shaped compression seal, which can withstand high pressure, high temperature, and corrosive media, and is suitable for bidirectional flow conditions.

3. High welding connection strength: The valve body is directly welded to the pipeline, with high connection strength and absolutely reliable sealing, suitable for high-pressure pipelines and flammable, explosive, and toxic medium systems.

4. Small opening and closing torque, easy operation: The eccentric structure reduces friction, and the 90 ° rotation operation torque is small, which can be adapted to various driving modes such as manual, electric, and pneumatic.

5. Excellent resistance to high temperature and high pressure: The metal hard seal structure can adapt to high temperatures and higher pressures (such as PN16~PN100 or higher) up to 600 ℃, with stable performance.

6. Long service life and easy maintenance: The sealing surface is wear-resistant and corrosion-resistant, and there is no friction or wear during the opening and closing process. After long-term use, the sealing performance can still be maintained, and the maintenance cycle is long.

7. Widely applicable in various fields: suitable for high temperature, high pressure, corrosive medium pipelines in industries such as petroleum, chemical, power, metallurgy, etc., especially suitable for cutting and regulating under harsh working conditions.
