Overview
The J11T Cast Iron Bronze-Core Internal Thread Globe Valve is a valve designed to achieve reliable opening/closing and flow regulation in pipelines by driving the valve disc, via the valve stem, to move vertically along the centerline of the valve seat. Its core design features a cast iron body and a bronze alloy disc (bronze core) embedded in critical sealing areas to enhance wear and corrosion resistance of the sealing surfaces. The valve adopts an internal thread connection, allowing direct screwing with external pipe threads for compact, convenient installation and sealing. The valve structure is typically designed with a low-inlet, high-outlet flow path to reduce operating torque and optimize fluid control. The valve relies on a manual device to drive the stem, converting rotational force into linear motion of the disc to achieve smooth and reliable opening/closing operations. This valve is specifically intended for general media such as water, steam, and oil in pipelines, particularly suitable for applications with low nominal pressure, limited installation space, and frequent operation, such as in civil buildings, water supply and drainage systems, and HVAC systems.

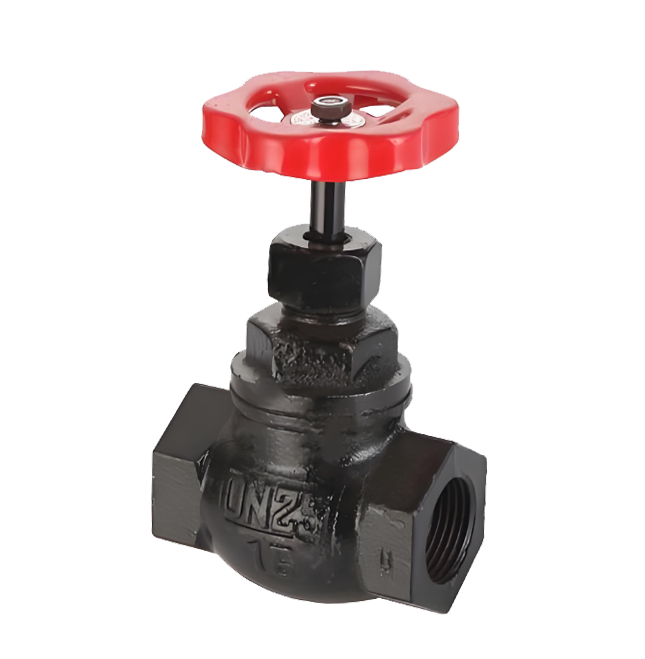

J11T Cast Iron Bronze-Core Internal Thread Globe Valve Product Diagram

Features

1.Reliable Sealing & Corrosion-Resistant Design: The valve core utilizes a bronze alloy material (bronze core), offering excellent wear and corrosion resistance, and is tightly integrated with the cast iron valve body. The sealing pair is precision-machined and matched to ensure long-term, reliable, and tight sealing with media such as water, steam, and oil, effectively preventing leakage.

2.Compact Structure & Convenient Connection: Features an internal thread connection, requiring no additional flanges or fittings. It can be directly screwed into the pipeline system, enabling simple and quick installation. Particularly suitable for piping layouts where space is limited and a lightweight, compact structure is required.

3.Easy Operation & Reliable Opening/Closing: The valve is typically handwheel-operated with an ergonomic design, requiring low operating torque. The valve stem transmission is smooth, and the disc's lifting trajectory is accurate, ensuring smooth opening/closing operations and reliable shut-off functionality. Suitable for applications requiring frequent operation.

4.Cost-Effective Durability & Easy Maintenance: The valve body is made of cast iron, providing high strength at an economical cost. The bronze core disc extends the service life of the sealing surfaces. The overall simple structure allows for easy disassembly and maintenance, with low daily upkeep requirements, effectively reducing long-term usage and maintenance costs.

5.Strong Versatility & Wide Media Compatibility: Suitable for various common media including water, steam, and non-corrosive oils at a nominal pressure of PN16 or lower. Widely used in civil buildings, water supply and drainage systems, HVAC systems, and general industrial pipelines, meeting standard shut-off and flow regulation needs.

6.Clear Flow Direction & Optimized Flow Resistance: The valve is typically designed with a low-inlet, high-outlet flow direction, reducing the impact of upstream pressure on operating force. The medium flow path is optimized to minimize flow resistance while ensuring functionality, thereby improving system energy efficiency.
