The A38Y spring duplex safety valve is a full-open safety valve with dual valve parallel redundancy design and cemented carbide seal. It integrates two independent spring full-open safety valves through a common valve body and is equipped with a switching mechanism. It can be seamlessly switched to the standby valve when the main valve is calibrated or maintained, providing uninterrupted overpressure protection for high temperature, high pressure and strongly corrosive conditions. It is specially used for the boiler main steam system of thermal power plant, petrochemical high-pressure reaction unit, auxiliary system of nuclear power plant and other occasions with extreme requirements on safety, tightness and emission capacity, as the key redundant safety protection equipment.

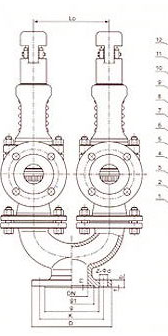

A38Y Spring-Loaded Dual Safety Valves Product Diagram

Features

1. Double-valve redundant safety guarantee: two independent safety valves are connected in parallel to form a "one for use and one for standby" system to ensure the continuity of protection.

2. On-line switching and testing function: through the switching mechanism such as three-way valve, the main and standby channels can be switched under pressure to realize online testing and maintenance of valves.

3. Spring micro-opening structure: direct load and micro-opening valve clack are adopted, with fast response, stable opening and closing, and applicable to liquid or small displacement discharge.

4. Alloy steel hard seal ("H" type): the sealing surface is overlaid with alloy steel, which is wear-resistant, high temperature resistant and reliable in sealing.

5.Space saving by structure integration: the integrated design saves more space and pipeline cost than installing two independent valves.
