Overview
The D11X internal thread butterfly valve operates by rotating the disc around a fixed axis to open, close, and regulate fluid flow. It adopts a concentric symmetric structure, with the valve stem positioned at the intersection of the disc and the pipeline center. The connection type is grooved, with standard grooves machined at both ends of the valve body. The valve is secured using clamps, requiring no welding or flanges, enabling fast installation and easy alignment. The sealing ring is typically made of elastic materials such as EPDM, which is vulcanized or embedded onto the disc or valve body. Zero leakage is achieved through rotational compression and deformation of the seal. The valve is operated by a handle or worm gear, rotating 90° to quickly control non-corrosive media such as water and firefighting foam. It is widely used in fire protection, water supply and drainage, air conditioning, and industrial cooling water pipelines.

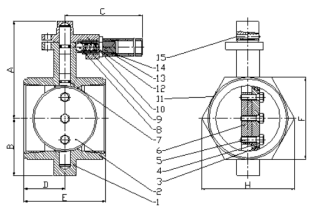

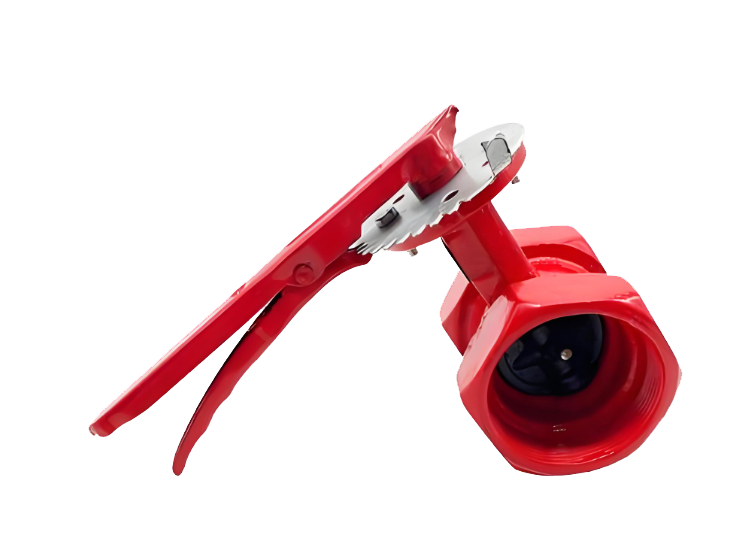

Product Image of D11X Internal Thread Butterfly Valve

Features

1.Easy installation and maintenance: Internal thread connection allows direct screwing into the pipeline without flange welding. Small installation space and fewer bolts are required, making it especially suitable for confined spaces or no-fire sites. Simple structure with fewer parts results in low disassembly and maintenance costs.

2.Compact and lightweight: The valve body is made of ductile cast iron (QT450-10), offering high strength and low weight. The threaded-end design ensures a small valve body size and short structural length. It is lighter and more portable than flanged butterfly valves of the same bore size, facilitating transportation and installation.

3.Quick and easy operation: Rotating 90° fully opens or closes the valve, providing simple operation. The concentric sealing structure requires low torque, making opening and closing effortless. The handle has a self-locking position feature, allowing the valve to be locked in fully open, partially open, or closed positions to prevent misoperation.
