Overview

The D81X manual grooved soft-sealing butterfly valve is a valve that opens, closes, and regulates fluid flow by rotating a disc-shaped butterfly plate around its fixed axis (valve stem). Its valve stem axis is located at the centerline position where the sealing surface center of the butterfly plate intersects with the centerline of the pipeline channel, with the butterfly plate being symmetrical on both sides. The valve adopts a grooved connection method, meaning there are no flanges at both ends of the valve body. Instead, standard grooves are machined on the outer circumference of the valve body. The valve is rigidly locked to the grooved pipeline using matching clamps, requiring no welding or flange bolts, offering fast installation and easy alignment. The butterfly plate sealing ring is typically made of elastic materials such as EPDM, which is directly vulcanized or embedded onto the butterfly plate or valve body. During opening and closing, the rotation of the butterfly plate compresses and deforms the sealing ring to achieve zero-leakage sealing. The valve is driven by a manual worm gear or handle to rotate the valve stem by 90 degrees or less, allowing rapid control of the flow of non-corrosive fluids such as water and firefighting foam concentrate. It is widely used in pipeline systems such as building fire protection, water supply and drainage, air conditioning circulating water, and industrial cooling water.

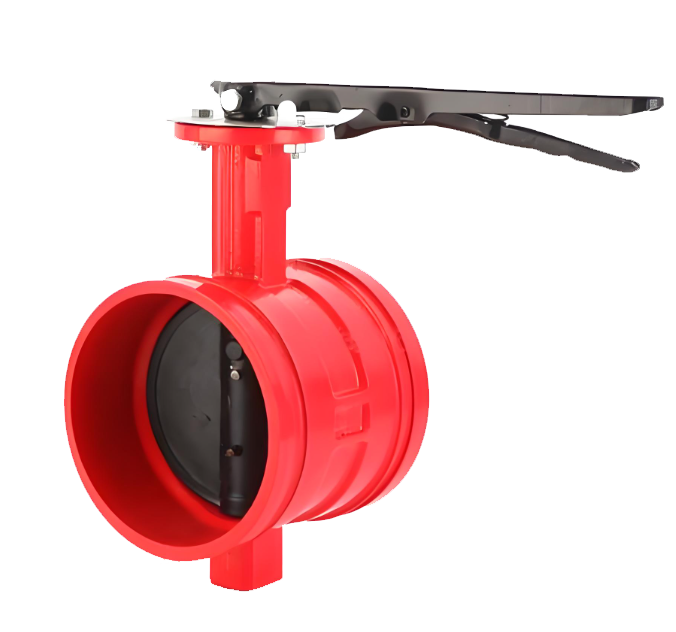

D81X Manual Grooved Soft-sealing Butterfly Valve Product Image

Features

1. D81X Manual Grooved Soft-Sealing Butterfly Valve Convenient Installation and Maintenance

The D81X manual grooved soft-sealing butterfly valve adopts grooved clamp connection, requiring no welding or flange bolts. Pipeline connection can be completed by mechanical assembly only, with installation speed several times higher than traditional flange connection. The clamp connection occupies about 70% of the space required by flanges and uses fewer bolts, making it especially suitable for installation sites with limited space or where open flames are prohibited. The overall structure is simple with few components, making disassembly and replacement easy, and maintenance cost economical.

2. D81X Manual Grooved Soft-Sealing Butterfly Valve Compact and Lightweight Structure

The D81X manual grooved soft-sealing butterfly valve body is made of ductile iron (QT450-10), featuring high strength and light weight. The wafer-type grooved structure design gives the valve small volume and short structural length. Compared with flange butterfly valves of the same diameter, the weight is significantly reduced, making it suitable for large-diameter valves and convenient for transportation and installation.

3. D81X Manual Grooved Soft-Sealing Butterfly Valve Quick and Light Operation

The D81X manual grooved soft-sealing butterfly valve completes full opening or full closing by rotating the butterfly plate 90 degrees, with simple and fast operation. The centerline sealing structure design provides low operating torque, making opening and closing light and effortless. The handle has a switch positioning self-locking function, enabling locking at full open, partial open, and closed positions to prevent misoperation.

4. D81X Manual Grooved Soft-Sealing Butterfly Valve Reliable Sealing Performance

The D81X manual grooved soft-sealing butterfly valve adopts a high elasticity EPDM rubber valve seat with a rubber content as high as 50% and tensile strength of 16.1MPa. The unique C-shaped rubber sealing ring design achieves triple sealing effect, maintaining zero leakage after more than 10,000 simulated opening and closing cycle tests. The valve adopts a bidirectional sealing design, eliminating the need to consider medium flow direction during installation and offering flexible use.

5. D81X Manual Grooved Soft-Sealing Butterfly Valve Low Fluid Resistance

For the D81X manual grooved soft-sealing butterfly valve, the opening and closing butterfly plate is designed in a streamlined shape. When fully open, the butterfly plate aligns with the fluid direction, and the medium flow path is approximately a straight pipe. The valve bore is essentially the same diameter as the pipeline inner diameter, and the butterfly plate creates minimal obstruction to fluid flow, resulting in large flow capacity and low pressure loss.

6. D81X Manual Grooved Soft-Sealing Butterfly Valve Excellent Corrosion Resistance and Durability

The inner cavity and outer surface of the D81X manual grooved soft-sealing butterfly valve body are coated with non-toxic epoxy coating, effectively preventing corrosion and erosion from various corrosive media, ensuring long service life. The valve shaft adopts a blow-out proof design with a snap ring groove at the upper end, preventing the valve shaft from blowing out during use and improving safety. The valve shaft seal adopts a combined structure of an oil-free bearing and packing, achieving a self-sealing function.

7. D81X Manual Grooved Soft-Sealing Butterfly Valve Wide Application Range

The D81X manual grooved soft-sealing butterfly valve body can be made of various materials such as ductile iron and stainless steel, and the sealing ring can be made of different materials including EPDM, NBR, and silicone rubber. Nominal pressure covers PN10, PN16 and other grades. Applicable media include water, firefighting foam concentrate, oil products, air, etc. It is widely used in pipeline engineering fields such as water supply and drainage, fire protection, air conditioning, gas, petroleum, chemical industry, water treatment, municipal engineering, and shipbuilding.
