Overview

The YDAX43 ferrule-type soft-seated American standard plug valve is a type of valve that opens or closes the fluid passage through the rotary motion of a tapered or cylindrical plug. The valve adopts a straight-through structure, with a through-type medium flow port provided on the plug. By rotating the plug 90 degrees, the flow port aligns with or becomes perpendicular to the valve body passage, thereby achieving fully open or fully closed positions. The valve stem is integrally or fixedly connected to the plug. During operation, the stem and plug rotate synchronously without any lifting motion. Packing sealing is provided between the stem and the valve body to ensure reliable external sealing. Both ends of the valve body adopt ferrule-type connections, where the ferrule is compressed by the ferrule nut to achieve a sealed connection with the pipeline, allowing for easy installation and disassembly without welding, suitable for instrument piping and high-pressure small-bore pipeline systems. The sealing surfaces of the valve are lined with resilient materials such as PTFE, forming a soft sealing structure with excellent sealing performance and self-lubricating properties for smooth operation. The valve is designed in compliance with American standards, with standardized structural dimensions, facilitating matching with American standard pipelines and instruments. The valve relies on precise fit and resilient sealing materials between the plug and the valve body sealing surfaces to achieve sealing, offering low operating torque and stable sealing performance. It is widely used in corrosive media pipeline systems in industries such as petroleum, chemical, and pharmaceutical for shut-off or flow passage applications.

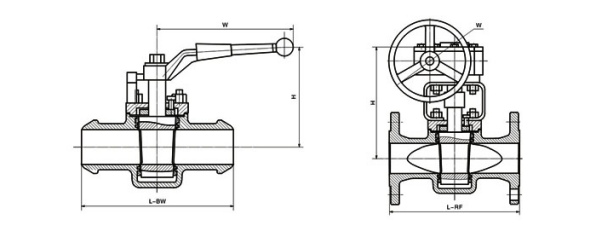

YDAX43 Ferrule Soft-Sealed American Standard Plug Valve Product Diagram

Feature

1 . Ferrule Connection for Easy Installation: Both ends of the valve body adopt ferrule-type connections, where the ferrule is compressed by the ferrule nut to achieve a sealed connection with the pipeline. This allows for easy installation and disassembly without the need for welding, making it suitable for instrument piping and high-pressure small-bore pipeline systems.

2 . Soft-Seated Structure for Reliable Sealing: The sealing surfaces of the plug and valve body are lined with resilient materials such as PTFE, forming a soft sealing structure that achieves excellent sealing effect with self-lubricating properties and smooth operation.

3 . Quick Opening/Closing with Straight-Through Flow Path: A 90-degree rotation of the plug completes opening or closing, providing rapid operation. When fully open, the flow path is straight, resulting in low fluid resistance and minimal vortex or sedimentation.

4 . Excellent Corrosion Resistance: The valve body and plug can be made of stainless steel, carbon steel, alloy steel, or other materials depending on the medium. The sealing surfaces are lined with fluoroplastic, providing resistance to strong acids, strong alkalis, organic solvents, and other corrosive media, ensuring long service life.

5 . Non-Rising Stem Design, Compact Installation Height: The stem and plug rotate as one unit without axial movement, resulting in a low overall height, suitable for installation on instrument panels or pipeline systems with limited space.

6 . Bidirectional Sealing, No Flow Direction Restriction: The valve is designed for bidirectional sealing with no strict requirement on flow direction, offering greater installation flexibility.

7 . American Standard Design, Unified Specifications: The valve is designed in compliance with American standards, with standardized structural dimensions, facilitating matching with American standard pipelines and instruments, and suitable for export projects and foreign-funded projects.
