Overview

The ZDAX47 American standard pressure-balanced inverted lubricated plug valve is a type of valve that opens or closes the fluid passage through the rotary motion of a tapered or cylindrical plug. The valve adopts a straight-through structure, with a through-type medium flow port provided on the plug. By rotating the plug 90 degrees, the flow port aligns with or becomes perpendicular to the valve body passage, thereby achieving fully open or fully closed positions. The valve stem is integrally or fixedly connected to the plug. During operation, the stem and plug rotate synchronously without any lifting motion. Packing sealing is provided between the stem and the valve body to ensure reliable external sealing. The valve adopts an inverted mounting design, with the large end of the plug located at the bottom of the valve body, where medium pressure helps to enhance sealing performance. The valve is equipped with a pressure-balanced structure, utilizing pressure balance passages at the upper and lower ends of the plug to effectively balance the axial thrust of the medium pressure on the plug, significantly reducing operating torque. The valve features a unique lubricated sealing system, which injects sealing grease between the plug and the valve body sealing surfaces to form a forced oil film seal, effectively compensating for minor wear on the sealing surfaces, improving sealing performance, and reducing operating torque. The valve is designed in compliance with American standards, with standardized structural dimensions. Both ends of the valve body adopt flanged connections, which are fastened to the pipeline flanges by bolts, providing reliable sealing and convenient disassembly. The valve relies on precise fit and oil film lubrication between the plug and the valve body sealing surfaces to achieve sealing, offering low operating torque, stable sealing performance, and long service life. It is widely used in demanding pipeline systems in petroleum, natural gas, chemical and other industries for shut-off or flow passage applications.

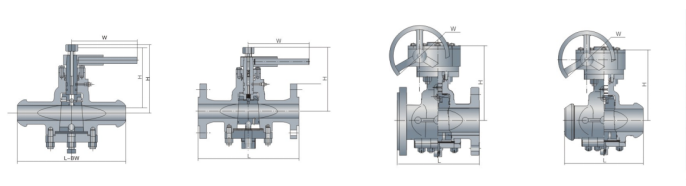

American Standard Pressure-Balanced Inverted Oil-Sealed Plug Valve Product Diagram

Feature

1 . Pressure-Balanced Structure for Light Operation: The valve is equipped with pressure balance passages that effectively balance the axial thrust of the medium pressure on the plug, significantly reducing operating torque, suitable for high-pressure and large-diameter applications.

2 . Inverted Structure for Enhanced Sealing: The valve adopts an inverted mounting design, with the large end of the plug located at the bottom of the valve body, where medium pressure helps to enhance sealing performance, ensuring reliable sealing.

3 . Lubricated Sealing System with Forced Lubrication: The valve is equipped with a unique lubricated sealing system, which injects sealing grease between the plug and the valve body sealing surfaces to form a forced oil film seal, effectively compensating for sealing surface wear, reducing operating torque, and extending service life.

4 . American Standard Design with Unified Specifications: The valve is designed in compliance with American standards with standardized structural dimensions, facilitating matching with American standard pipelines and instruments, and suitable for export projects and foreign-funded projects.

5 . Corrosion and Wear Resistance: The valve body and plug can be made of carbon steel, stainless steel, alloy steel, or other materials depending on the medium. Sealing surfaces can be hardened (e.g., hardfacing with cemented carbide, nitriding, etc.), providing wear resistance, erosion resistance, and long service life.

6 . Bidirectional Sealing with No Flow Direction Restriction: The valve is designed for bidirectional sealing with no strict requirement on flow direction, offering greater installation flexibility.

7 . Flanged Connection, Reliable and Convenient: Both ends of the valve body adopt flanged connections, which are fastened to the pipeline flanges by bolts, providing reliable sealing and convenient disassembly, suitable for medium and large-diameter pipeline systems under higher pressure.
