Overview

The American and German standard ferrule-type soft-seated plug valve is a type of valve that opens or closes the fluid passage through the rotary motion of a tapered or cylindrical plug. The valve adopts a straight-through structure, with a through-type medium flow port provided on the plug. By rotating the plug 90 degrees, the flow port aligns with or becomes perpendicular to the valve body passage, thereby achieving fully open or fully closed positions. The valve stem is integrally or fixedly connected to the plug. During operation, the stem and plug rotate synchronously without any lifting motion. Packing sealing is provided between the stem and the valve body to ensure reliable external sealing. Both ends of the valve body adopt ferrule-type connections, where the ferrule is compressed by the ferrule nut to achieve a sealed connection with the pipeline, allowing for easy installation and disassembly without the need for welding, suitable for instrument piping and high-pressure small-bore pipeline systems. The valve is designed in compliance with both American and German standards, with standardized structural dimensions to meet the piping requirements of different standards. The sealing surfaces are lined with soft sealing materials such as PTFE (F4), forming a self-lubricating soft sealing structure with excellent sealing performance and corrosion resistance. The valve relies on precise fit and the PTFE soft sealing liner between the plug and the valve body sealing surfaces to achieve sealing, offering low operating torque and stable sealing performance. It is widely used in corrosive media pipeline systems in petroleum, chemical, pharmaceutical, food and other industries for shut-off or flow passage applications.

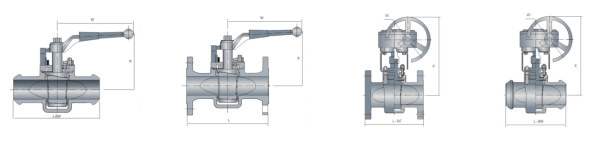

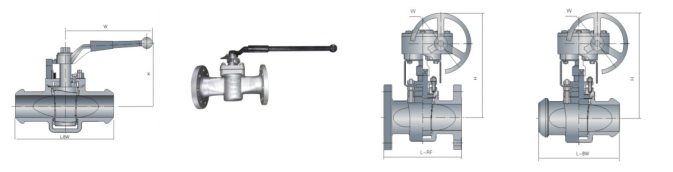

American and German Standard Ferrule Soft-Sealed Plug Valve Product Diagram

Feature

1 . Dual Standard Design for Wide Compatibility: The valve is designed in compliance with both American and German standards, with standardized structural dimensions to meet the piping requirements of different standards, suitable for export and international projects.

2 . Ferrule Connection for Easy Installation: Both ends of the valve body adopt ferrule-type connections, where the ferrule is compressed by the ferrule nut to achieve a sealed connection, allowing for easy installation and disassembly without welding, suitable for instrument piping and high-pressure small-bore pipeline systems.

3 . Quick Opening/Closing with Straight-Through Flow Path: A 90-degree rotation of the plug completes opening or closing, providing rapid operation. When fully open, the flow path is straight, resulting in low fluid resistance and minimal vortex or sedimentation.

4 . Reliable Sealing Performance: The sealing surfaces of the plug and valve body are lined with soft sealing materials such as PTFE, forming a self-lubricating soft sealing structure that achieves excellent sealing effect with smooth operation.

5 . Non-Rising Stem Design, Compact Installation Height: The stem and plug rotate as one unit without axial movement, resulting in a low overall height, suitable for installation on instrument panels or pipeline systems with limited space.

6 . Bidirectional Sealing with No Flow Direction Restriction: The valve is designed for bidirectional sealing with no strict requirement on flow direction, offering greater installation flexibility.
