Overview

EG41J-10/16 series manual flanged diaphragm valves are precision isolation control valves specially engineered for general corrosive media and industrial fluid pipeline systems. Featuring a broad nominal size range from DN20 to DN400 and standard flanged connections, this series integrates seamlessly into industrial pipelines across chemical processing, water treatment, environmental engineering, metallurgy, and pharmaceuticals. Utilizing a unique diaphragm sealing structure, the valve completely isolates the lower body cavity from the upper bonnet driving mechanism, achieving leak-free fluid shut-off and throttling within a nominal pressure range of 1.0 to 1.6 MPa. Constructed from premium grey cast iron or grey cast iron with rubber/fluorine lining, combined with a corrosion-resistant elastomeric diaphragm, the valve maintains exceptional sealing integrity and fatigue resistance at operating temperatures up to 85°C, making it an ideal core component for modern industrial corrosive fluid control.

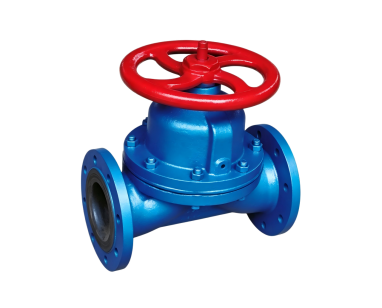

Product Image:EG41J-10/16 Rubber-Lined Diaphragm Valve

Feature

Broad Size Range & Reliable Flanged Connection: Covering nominal diameters from DN20 to DN400, meeting diverse requirements from small-flow branch lines to large-diameter main distribution headers. Standard industrial flanges offer high structural strength, excellent resistance to piping tension and vibration, ensuring a secure, leak-tight installation.

Complete Media Isolation & Zero External Leakage: A highly flexible diaphragm totally isolates the flowing fluid from the valve stem, bonnet, and actuator components. This eliminates traditional stuffing box packing leakage risks and protects driving mechanisms from chemical attack, ensuring zero fugitive emissions.

Superior Corrosion Resistance & Optimal Hydraulics: Available with unlined grey cast iron or premium rubber/fluorine-lined body options, offering robust protection against general acids, alkalis, salt solutions, and abrasive slurries. The weir-type seat design yields smooth flow pathways, low fluid wash, and uniform sealing pressure distribution.

Smooth Manual Operation & High Cost-Efficiency: Equipped with a precision handwheel transmission mechanism delivering moderate operating torque and intuitive control. The streamlined design eliminates sliding wearable parts inside the flow channel, drastically reducing lifecycle maintenance costs and delivering outstanding cost performance.
