HQ41X Ball Check Valve

  • Model:HQ41X-10Q/HQ41X-16Q/HQ41X-10C/HQ41X-16C/HQ41X-10P/HQ41X-16P
  • Specification:DN50-DN200
  • Temperature:≤80℃
  • Medium:Water and liquids with properties similar to water
  • Pressure:PN10,PN16
  • Connection method:Flange
  • Driving method:Automated
  • Material:Ductile iron,cast iron
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

HQ41X Ball Check Valve Overview

The HQ41X ball check valve is a type of valve that automatically opens and closes by relying on the pressure of the medium itself to drive the ball. Its core function is to prevent backflow of the medium in the pipeline and protect equipment such as pumps and compressors.

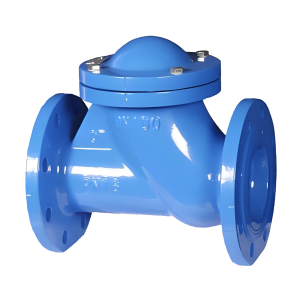

HQ41X Ball Check Valve Product Image

HQ41X Ball Check Valve Features

The HQ41X ball check valve adopts a rubber-coated ball as its disc. Driven by the medium, the ball rolls along the valve body’s slide to open/close the valve. It boasts high flow rate, low flow resistance, reliable sealing, silent closure and reduced water hammer. Suitable for pump outlets in cold/hot water, industrial and domestic sewage systems to prevent medium backflow.

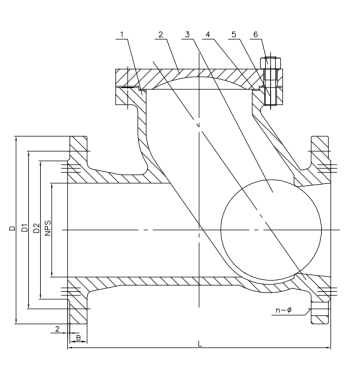

HQ41X Ball Check Valve Structure Diagram

Parts Name Material List

NO.NameMaterial
6Nut8
5BoltB8
4GasketEPDM
3BallStainless Steel
2BonnetDuctile iron QT450
1BodyDuctile iron QT450

性能规范表Performance Specification
公称压力Nominal Pressure1.0/1.6MPa
强度试验压力Shell Test1.5/2.4
密封试验压力Seal Test1.1/1.76
适用温度Suitable Temp.≤80


Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard GB/T12221.

2. The connecting flange shall conform to the standard GB/T17241.6

HQ441X Ball Check Valve view drawing

HQ441X Ball Check Valve  Dimensions Table

DNLDD1D2bf1n-φd
DN50204165125991934-Ø19
DN652171851451181934-Ø19
DN802402001601321938-ø19
DN1002902201801561938-Ø19
DN1253282502101841938-ø19
DN1503952852402111938-Ø23
DN20037534029526620312-Ø23
