Y11X Direct-Acting NPT Pressure Reducing Valve Overview
Y11X Direct-Acting NPT Pressure Reducing Valve is a compact, responsive automatic pressure regulating valve. It adopts a direct-acting working principle, requiring no external power source. It uses the medium’s own energy and built-in sensitive components (such as diaphragms or pistons) to sense and control downstream pressure. Its main function is to automatically reduce and stabilize fluctuating, high inlet pressure to the user-preset outlet pressure. This protects downstream pipelines, instruments and water-consuming equipment from overpressure damage and ensures stable operation. Usually made of copper alloy or stainless steel with threaded connections, the valve is widely used in building water supply, fire protection branches, gas pipelines, small irrigation systems and industrial equipment inlets—all scenarios requiring precise pressure stabilization.

Y11X Direct-Acting NPT Pressure Reducing Valve Product Image
Y11X Direct-Acting NPT Pressure Reducing Valve Features
1. Direct-Acting, Responsive
Adopting a mechanical structure with direct linkage between spring and diaphragm/piston, the valve requires no pilot piping or external control. When downstream pressure changes, it instantly drives the valve core to adjust flow area rapidly, achieving immediate response and compensation for pressure fluctuations with direct and efficient pressure stabilization.
2. Compact Design, Flexible Installation
Highly integrated overall structure ensures small size and light weight. Standard internal thread connections (e.g., G1/2″, G3/4″) facilitate direct installation on pipelines, instruments or equipment inlets. It is especially suitable for precise pressure control in space-constrained branch pipes, terminals or equipment frontends.
3. Intuitive Adjustment, Precise Setting
A clear pressure adjustment mechanism is located on the top of the valve body. By turning the adjusting screw, the preload of the main spring can be precisely set, enabling direct and linear adjustment and locking of the required outlet pressure. Operation is simple and intuitive, with easy calibration.
4. Easy Maintenance, High Reliability
Featuring a small number of structural parts, the internal moving components are simple and reliable. The common modular design allows easy inspection and replacement of key parts (e.g., diaphragms, valve core seals). No complex external piping reduces leakage points, resulting in minimal daily maintenance and stable operation.
5. High-Quality Material, Wide Application
Key flow-through components are made of brass or stainless steel, offering good corrosion resistance and mechanical strength. Suitable for cold water, hot water, compressed air and various non-corrosive liquids and gases, it is an economical and practical pressure stabilization solution for building water supply and drainage, gas pressure reduction, small process pipelines and other systems.

Y11X Direct-Acting NPT Pressure Reducing Valve Structure Diagram
Parts Name Material List
| 序 号NO. | 名称Name | 材料Material |
| 1 | 阀体Body | 灰铸铁Grey Cast Iron |
| 2 | 缸套bushing | 2Cr13 |
| 3 | 橡胶膜片rubber diaphragm | 尼龙强化橡胶nylon-reinforced rubber |
| 4 | 密封垫gasket | 丁晴橡胶NBR |
| 5 | 阀盖bonnet | Grey Cast Iron |
| 6 | 活塞、缸套piston、sleeve | 不锈钢Stainless Steel |
| 7 | 调节弹簧regulating spring | 硅锰钢silicon-manganese steel |
| Performance Specification | ||
| Nominal Pressure | 1.0/1.6 | MPa |
| Shell Test | 1.5/2.4 | |
| Seal Test | 1.1/1.76 | |
| Suitable Temp. | ≤80 | ℃ |
Dimensions Standard Requirements
1. The structural length of the valve shall conform to the standard GB/T12221.
2. The connecting flange shall conform to the standard GB4216/GB 1193.

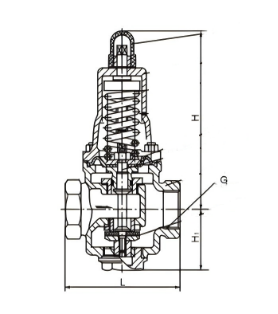

Y11X Direct-Acting NPT Pressure Reducing Valve View Drawing
Y11X Direct-Acting NPT Pressure Reducing Valve Dimensions Table
| 公称通径DN | 管螺纹G | L | H | H1 |
| 15 | 1/2 | 100 | 170 | 60 |
| 20 | 3/4 | 100 | 170 | 65 |
| 25 | 1 | 120 | 185 | 75 |
| 32 | 11/4 | 150 | 192 | 88 |
| 40 | 11/2 | 150 | 230 | 90 |
| 50 | 2 | 180 | 270 | 98 |

Model:
Y42X-10Q/Y42X-16Q/Y42X-25Q/Y42X-10/Y42X-16/Y42X-10C/Y42X-16C/Y42X-10P/Y42X-16PSpecification:
DN20-DN400Pressure:
PN10,PN16Material:
Cast Iron, ductile iron, Stainless Steel,carbon steel
Model:
Y41X-16/Y41X-25/Y41X-16C/Y41X-25CSpecification:
DN125-DN400Pressure:
PN16,PN25Material:
Cast iron、ductile iron、carbon steel
Model:
200X-10/200X-16/200X-25/200X-10C/200X-16C/200X-25C/200X-10T/200X-16T/200X-25T/200X-10P/200X-16P/200X-25PSpecification:
DN50-DN800Pressure:
PN10,PN16,PN25Material:
Cast Iron、Cast Steel、Stainless Steel、brass
Is the noise from the pressure reducing valve disturbing? Understand the 3 fundamental reasons and solutions in one article
The harsh noise generated by pressure reducing valves during operation is not only an environmental pollution problem, but also a precursor to equipment failure. This article will delve into the three fundamental causes of noise generated by pressure reducing valves - mechanical vibration noise, fluid dynamics noise, and aerodynamic noise, and provide professional solutions.
1、 Mechanical vibration noise: a test of design and process
Mechanical vibration noise is the most common type of noise in pressure reducing valves, mainly divided into two forms:
1. Low frequency vibration noise
Causes:
Medium jet and pressure pulsation
The outlet flow rate of the valve is too fast
Unreasonable pipeline layout
Insufficient rigidity of moving parts inside the valve
2. High frequency vibration noise (resonance phenomenon)
Causes:
The natural frequency of the valve coincides with the excitation frequency of the medium
Easy to occur within a specific decompression range
Sensitive to changes in working conditions, with significant noise fluctuations
Solution:
Optimize the clearance design between the liner and valve stem
Improve machining accuracy
Adjust the natural frequency of the valve
Enhance the rigidity of active components
Select appropriate damping materials
2、 Fluid Dynamics Noise: Challenges in Fluid Control
The turbulence and eddies generated when the fluid passes through the pressure reducing valve can cause significant noise problems.
1. Turbulent noise
Features: Low frequency, low noise level
Cause: Interaction between turbulent fluid and the inner surface of valves/pipelines
Impact: Usually does not constitute a serious noise problem
2. Cavitation noise (the most harmful)
Production mechanism:
During the depressurization process, the fluid flow velocity reaches the critical value
The liquid begins to vaporize, producing bubbles
Bubble explosion under pressure generates shock waves
Local instantaneous pressure can reach 196 MPa
Key data:
Initial value of Δ p: the critical pressure reduction value at which liquid begins to cavitation
Exceeding this value leads to a sharp increase in noise
Preventive measures:
Control the actual pressure reduction value below the critical value
Optimize the design of valve disc fluid direction
Adopting a multi-stage decompression structure
Choose anti cavitation materials
3、 Aerodynamic noise: characteristics of compressible fluids
When compressible fluids such as steam pass through pressure reducing areas, unique noise issues arise:
Production principle:
Conversion of fluid mechanical energy into sound energy
Interaction between high-speed airflow and valve structure
Sudden pressure changes cause gas expansion and sound emission
Control method:
Optimize the design of pressure reducing flow channels
Using mufflers or diffusers
Control the outlet flow rate
Reasonably set back pressure
Comprehensive solutions and selection suggestions
Preventive measures during the design phase
Parameter optimization: Accurately calculate operating parameters to ensure that the pressure reduction value is within the design range
Structural design: Adopting streamlined flow channels to reduce turbulence generation
Material selection: Select special alloys with high rigidity and cavitation resistance
Frequency analysis: avoid the natural frequency of the valve coinciding with the excitation frequency
Key points for installation and maintenance
Correct installation: Ensure the length of the front and rear straight pipe sections to avoid sharp bends
Regular testing: Establish a noise monitoring mechanism to detect problems early on
Timely maintenance: replace worn parts and maintain the best condition of the valve
Brand selection recommendation
High pressure differential operating condition: choose multi-stage pressure reducing valve
Liquid medium: focus on anti cavitation design
Gas/Steam: Focus on Aerodynamic Optimization
Sensitive environment: Choose a low-noise dedicated model
Professional Technical Summary
The essence of the noise problem of pressure reducing valves is the process of energy conversion and release. Fundamentally, all noise issues are closely related to the rationality of valve design, manufacturing process accuracy, and compatibility with operating conditions. Through scientific selection, correct installation, and standardized maintenance, it is entirely possible to control the noise of the pressure reducing valve within an acceptable range.
Immediate action suggestion: If you are troubled by pressure reducing valve noise, it is recommended to first record the noise characteristics (frequency, time period, change pattern), check whether the operating parameters deviate from the design values, and promptly contact professional technicians for diagnosis and treatment.
Keywords of this article: pressure reducing valve noise, mechanical vibration noise, cavitation noise, fluid dynamics noise, pressure reducing valve failure, valve noise reduction, industrial noise control, equipment maintenance
Extended reading: For more professional knowledge about industrial valve selection and maintenance, please follow our technical column to obtain the latest solutions and industry practice cases.
