H44T Cast Iron Swing Check Valve Overview
The H44T Cast Iron Swing Check Valve is a standard-type check valve with a gray iron or ductile iron body and flanged connections, featuring an internal swing-type structure. The valve operates by using the pressure of forward-flowing medium to push the disc open as it rotates around its pivot. When the medium stops or reverses flow, the disc automatically swings back to the seat under its own weight and reverse pressure, thereby preventing medium backflow.Designed with a robust and durable structure, this valve is specifically intended for general media such as water, steam, and oil products. It typically operates at pressures of PN10/16/25 and is widely used in building water supply and drainage systems, HVAC applications, general industrial circulating water systems, pump discharge lines, and similar scenarios. It serves as a fundamental and economical automatic control device for preventing medium backflow.

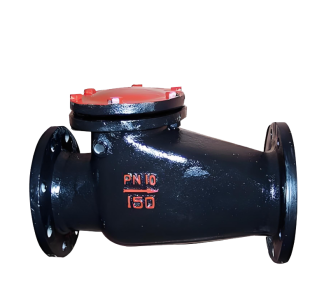

H44T Cast Iron Swing Check Valve Product Image
H44T Cast Iron Swing Check Valve Features
1. Cost-effective and widely applicable
The valve body is made of cast iron, offering low manufacturing costs and a robust structure, ensuring excellent cost-effectiveness and durability. It is suitable for most non-corrosive conventional industrial media.
2. Flexible installation and low flow resistance
The swing-type design allows for horizontal installation or installation in vertical pipelines with upward flow. When fully open, the valve provides an unobstructed flow path with minimal resistance to medium flow.
3. Automatic operation and reliable sealing
The valve operates fully automatically through the combined action of medium flow and the disc's own weight, ensuring reliable performance. Its metal seal or soft-hard composite seal design guarantees effective sealing during closure.
4. Simple structure and easy maintenance
The valve features a relatively simple internal structure with few moving parts, resulting in a low failure rate. Inspection and maintenance are straightforward and convenient when issues arise.
5. Clear application limitations
Suitable for conventional temperature and pressure ranges, it is not recommended for highly corrosive, abrasive, or highly toxic media. During installation, precautions should be taken to avoid water hammer impacts to extend its service life.

H44T Cast Iron Swing Check Valve Structure Diagram
Parts Name Material List
| 序 号NO. | 名称Name | 材料Material |
| 4 | 阀瓣disc | 灰铸铁+黄铜Gray Iron + Brass |
| 3 | 密封圈seal surface | 灰铸铁、不锈钢、黄铜Gray Iron, Stainless Steel, Brass |
| 2 | 垫片gasket | 橡胶石棉板Asbestos Rubber Sheet |
| 1 | 阀体body | 灰铸铁Gray Iron (or Grey Iron) |
| 性能规范表Performance Specification | ||
| 公称压力Nominal Pressure | 1.0/1.6 | Mpa |
| 强度试验压力Shell Test | 1.5/2.4 | |
| 密封试验压力Seal Test | 1.1/1.76 | |
| 适用温度Suitable Temp. | ≤200 | ℃ |
Dimensions Standard Requirements
1. The structural length of the valve shall conform to the standard GB/T 12221.
2. The connecting flange shall conform to the standard GB/T 17241.6.

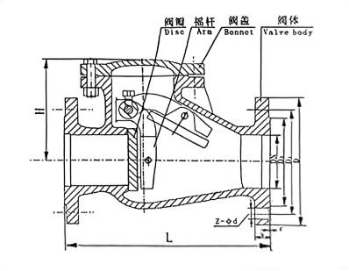

H44T Cast Iron Swing Check Valve View Drawing
H44T Cast Iron Swing Check Valve Dimensions Table
| 型号Model | 公称通径(mm) | 尺寸(mm) | ||||||
| L | D | D1 | D2 | b-f | z-Фd | H | ||
| H44T-10 | 40 | 200 | 145 | 110 | 85 | 18-3 | 4-Ф18 | 110 |
| 50 | 230 | 160 | 125 | 100 | 20-3 | 4-Ф18 | 122 | |
| 65 | 290 | 180 | 145 | 120 | 20-3 | 4-Ф18 | 136 | |
| 80 | 310 | 195 | 160 | 135 | 22-3 | 4-Ф18 | 155 | |
| 100 | 350 | 215 | 180 | 155 | 24-3 | 8-Ф18 | 160 | |
| 125 | 400 | 145 | 210 | 185 | 26-3 | 8-Ф18 | 188 | |
| 150 | 480 | 280 | 240 | 210 | 26-3 | 8-Ф23 | 224 | |
| 200 | 495 | 335 | 295 | 265 | 26-3 | 8-Ф23 | 252 | |
| 250 | 622 | 390 | 350 | 320 | 28-3 | 12-Ф23 | 285 | |
| 300 | 698 | 440 | 400 | 368 | 28-3 | 12-Ф23 | 351 | |
| 350 | 787 | 500 | 460 | 428 | 30-3 | 16-Ф23 | 405 | |
| 400 | 914 | 565 | 515 | 482 | 32-4 | 16-Ф25 | 460 | |

Model:
H76W-10C/H76W-16C/H76W-25C/H76W-40C/H76W-64P/H76W-100P/H76W-160PSpecification:
DN50-DN1200Pressure:
PN10-PN160Material:
WCB、Stainless Steel
Model:
H64YSpecification:
DN15-DN300Pressure:
PN20Mpa-32MpaMaterial:
Carbon Steel, Alloy Steel,forged steel
Model:
H44F46-16C/H44F46-10C/H44F46-16/H44F46-10/H44F46-16P/H44F46-10PSpecification:
DN15-DN500Pressure:
PN10,PN16Material:
Cast iron, cast steel, stainless steel lined with FEP/PTFE
Complete Guide to Check Valve Selection and Installation: Detailed Explanation of Principles, Selection, and Key Construction Points Check valves, as crucial safety components in pipeline systems, are essential for preventing medium backflow and ensuring safe system operation. This article will provide you with a comprehensive guide to the selection and installation of check valves.
1. Operating Principle and Classification of Check Valves 1.1 What is a Check Valve?
Check valves, also known as one-way valves or non-return valves, belong to the category of automatic valves. Their working principle is to achieve opening and closing through the flow force of the medium itself. Their core function is to prevent the reverse flow of pipeline medium and ensure one-way flow.
1.2 Main application scenario: foot valve (a special type of check valve) at the water pump suction inlet
Various pipeline systems requiring unidirectional flow of medium
Industrial settings where accidents caused by medium backflow are to be prevented
II. Selection Criteria and Guidelines for Check Valves 2.1 Basic Selection Principles Medium Adaptability: Suitable for clean medium conditions, not recommended for pipelines containing solid particles or high viscosity media.
2.2 Selection of pipeline size (DN) based on pipeline size. Recommended valve types. Applicable pressure range: DN<50mm. Butterfly check valve, vertical lift check valve, diaphragm check valve. Low-pressure environment: 50mm
Advantages: Effectively eliminates the water hammer phenomenon
Limitations: Subject to temperature and pressure constraints, suitable for low-pressure and normal-temperature pipelines
Applicable scenario: Water supply pipelines prone to water hammer
Slow-closing check valve:
Slow-closing swing check valve
Slow-closing butterfly check valve
Applicable scenario: pipeline systems that require minimal or no water hammer impact when shut down
III. Installation specifications and construction requirements for check valves 3.1 Preparatory work before installation Appearance inspection:
Check the valve nameplate information to ensure compliance with the GB 12220 "General Valve Marking" standard
Check the integrity of the valve and confirm that it is undamaged
Pressure test requirements:
If the working pressure exceeds 1.0 MPa or the main pipe shut-off valve is involved, a pressure test must be conducted
Strength test: Nominal pressure × 1.5, duration ≥ 5 minutes, no leakage is considered as qualified
Tightness test: nominal pressure × 1.1, determine the duration according to GB 50243 standard
3.2 Installation location and direction: Strictly follow the design drawings to determine the location, height, and inlet and outlet directions
Flow direction indicator: Ensure that the flow direction of the medium is completely consistent with the direction indicated by the arrow on the valve body
Pipe support:
It is prohibited to let the check valve bear the weight of the pipeline
Large check valves must be equipped with independent support structures
Avoid direct impact of piping pressure on the valve
3.3 Lift check valves are required for specific types of installations:
Vertical flap type: It must be installed on a vertical pipeline
Horizontal flap type: It must be installed on a horizontal pipeline
Swing check valve:
Ensure that the valve disc's rotating shaft is in a horizontal position during installation
Special attention should be paid to the flow direction of the medium during inclined installation
IV. Common Installation Errors and Precautions 4.1 Example of Incorrect Installation: Installing a Vertical Lift Check Valve on a Horizontal Pipe
The valve flow direction is reversed
Large valves have no independent support
Pressure testing was not conducted according to specifications
4.2 The selection and installation location of check valves should be considered during the design phase of the professional advice system
Provide complete operating condition parameters to the supplier during procurement to obtain professional selection advice
For complex systems, it is recommended to consult a professional valve engineer
Conduct regular maintenance and inspection to ensure the check valve operates in normal condition
5. Maintenance points: Regularly check whether the valve can be opened and closed flexibly
Monitor for abnormal sounds, such as water hammer impact
Check the sealing performance to prevent internal leakage
Lubricate the moving parts to ensure normal operation
The correct selection and installation of check valves are crucial for ensuring the safe operation of pipeline systems. Following the selection guidelines and installation specifications provided in this article can prevent various accidents caused by medium backflow, extend the service life of valves, and reduce maintenance costs.
In practical applications, it is recommended to consider specific engineering requirements and medium characteristics, and if necessary, consult professional valve technicians to ensure the optimization of the selection and installation plan.
