H61Y Power Plant High-Temperature High-Pressure Welded Check Valve

  • Model:H61Y-250C/H61Y-320C/P54140V/P54170V/P57170V
  • Specification:DN10-100
  • Temperature:≤550 ℃
  • Medium:Water, Oil , Steam
  • Pressure:PN200-PN320
  • Connection method:welded
  • Driving method:automated
  • Material:Carbon Steel, forged steel, Cr-Mo-V Steel
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

H61Y Power Plant High-Temperature High-Pressure Welded Check Valve Overview

The H61Y Power Plant High-Temperature High-Pressure Welded Check Valve is a high-performance valve specifically designed for critical systems in power plants, featuring welded end connections and a swing-type structure. The valve body and key components are made of high-temperature-resistant materials such as chromium-molybdenum alloy steel or stainless steel, typically conforming to ASTM A182 standards.Internally, the valve employs a metal hard seal overlay-welded with hard alloys. It opens under the pressure of forward-flowing medium and closes rapidly and automatically under the disc's own weight and reverse pressure.Designed for ultra-high parameter applications such as main steam lines and high-temperature feedwater pipelines, this valve must be permanently welded to the pipeline using stringent welding procedures to eliminate any risk of leakage. It serves as a critical component for ensuring the safety of core equipment in power plants, including boilers and turbines, by preventing medium backflow and mitigating water hammer effects in the system.

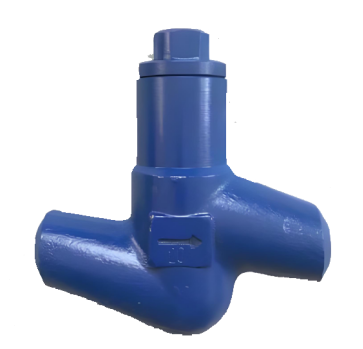

H61Y Power Plant High-Temperature High-Pressure Welded Check Valve Product Drawing

H61Y Power Plant High-Temperature High-Pressure Welded Check Valve Features

1. Extreme Operating Condition Adaptability

  Made from high-quality alloy steel, it can withstand high temperatures and pressures (Class 2500 or higher) and is specifically designed for demanding environments such as supercritical and ultra-supercritical units in power plants.

2. Fully Welded Leak-proof Structure

  The valve features butt-weld ends that are permanently welded to the pipeline, fundamentally eliminating the risk of leakage at connection points and ensuring absolute sealing integrity under high pressure and temperature.

3. High-Performance Hard Seal

  The sealing surfaces of the disc and seat are overlay-welded with cobalt-based or nickel-based hard alloys, providing exceptional wear resistance, erosion resistance, and high-temperature stability to ensure reliable sealing during long-term operation.

4. Safety, Reliability, and Long Service Life

  The structural design fully accounts for thermal stress and pressure impacts, ensuring smooth disc operation. The valve typically complies with stringent fireproof and explosion-proof standards, with a design lifespan aligned with that of the main equipment.

5. Specialized Manufacturing and High Standards

  The entire process—from material selection, casting, machining, welding, and heat treatment to inspection—adheres to international standards such as ASME and API, as well as specific power plant regulations. The comprehensive quality traceability system ensures extremely high reliability requirements are met.

H61Y Power Plant High-Temperature High-Pressure Welded Check Valve Structure Diagram

Parts Name Material List

序 号NO.名称Name材料Material
7阀盖bonnet碳钢、合金钢、铬钥钒钢Carbon Steel, Alloy Steel, Chromium-Molybdenum Steel
6密封面seal surface硬质合金Hard Alloy
5销钉pin碳钢、合金钢、铬钥钒钢Carbon Steel, Alloy Steel, Chromium-Molybdenum Steel
4填料packing柔性石墨graphite
3阀瓣disc碳钢、合金钢、铬钥钒钢Carbon Steel, Alloy Steel, Chromium-Molybdenum Steel
2弹簧spring弹簧钢Spring Steel
1阀体body碳钢、合金钢、铬钥钒钢Carbon Steel, Alloy Steel, Chromium-Molybdenum Steel

性能规范表Performance Specification
公称压力Nominal Pressure20/25/32Mpa
强度试验压力Shell Test30/37.5/48
密封试验压力Seal Test22/27.5/36
适用温度Suitable Temp.≤550


Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard GB/T 15188.1.

2. The connecting flange shall conform to the standard GB/T 12224.

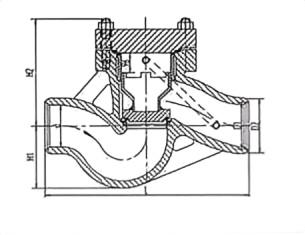

H61Y Power Plant High-Temperature High-Pressure Welded Check Valve View Drawing

H61Y Power Plant High-Temperature High-Pressure Welded Check Valve Dimensions Table

GB 25.0MPa
DN101520253240506580100
L120170170170200230350326470560
H155200210210245270300410370420
Wt2.58.5910142128---
GB 32.0MPa
DN101520253240506580100
L120170170170200230350326470560
H155200210210245270300410370420
Wt2.58.5910142128---
P54140V
DN101520253240506580100
L120170170170200230350326470560
H155200210210245270300410370420
Wt2.58.5910142128--
P54170V
DN101520253240506580100
L120170170170200230350326470560
H155200210210245270300410370420
Wt2.58.910142128--
P57170V
DN101520253240506580100
L120170170170200230350326470560
H155200210210245270300410370420
Wt2.58.5910142128---
