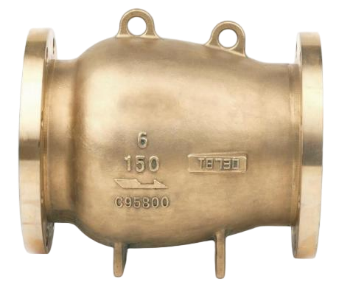

GLH41W Axial Flow Check Valve

  • Model:GLH41W-150LB/GLH41W-300LB/GLH41W-600LB/GLH41W-900LB/GLH41W-1500LB/GLH41W-2500LB
  • Specification:2"-36"
  • Temperature:≤450℃
  • Medium:water,oil,steam
  • Pressure:CL150 - 2500LB
  • Connection method:flange
  • Driving method:automated
  • Material:Carbon Steel,Stainless Steel, DuplexSS,Monel, AL-Bronze
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

Overview

The axial flow check valve is an energy-saving check valve featuring a streamlined disc design that moves linearly along the pipeline axis for automatic opening and closing. It typically adopts a flanged or wafer connection. The valve body is mainly made of cast steel, stainless steel or ductile iron, with its internal disc performing axial reciprocating motion under the assistance of a flow guide and a spring. This valve can be installed either horizontally or vertically. When the medium flows in the forward direction, it pushes the disc to open along the axis, providing a completely straight-through flow path with extremely low pressure loss. When the medium stops or flows backward, the disc quickly returns to its closed position under spring force and reverse medium pressure, offering reliable sealing with minimal water hammer impact. It is specifically designed for piping systems requiring low flow resistance and high-frequency opening and closing. Widely used in long-distance pipelines, water injection systems, petrochemical plants, seawater desalination and similar projects, it serves as a key protective device ensuring efficient and stable system operation.

GLH41W Axial Flow Check Valve

  1. Minimizes damage caused by water hammer in pipelines.
  2. Eliminates flutter, reducing the likelihood of sudden valve failure in reciprocating compressor applications.
  3. Protects critical equipment from costly damage caused by reverse flow.
  4. Low pressure drop, energy-saving and environmentally friendly.
  5. Utilizes the fast dynamic response of the axial flow check valve to reduce reverse flow velocity.

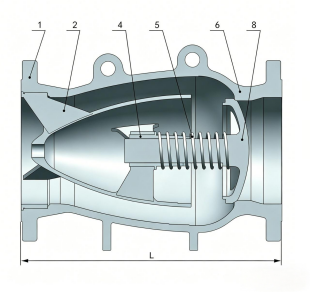

GLH41W Axial Flow Check Valve structure diagram

Parts Name Material List

序号NO.部件名称Part name材料Materials
1阀体BodyCarbon Steel,Stainless Steel, DuplexSS,Monel, AL-Bronze
2扩散器Diffuser
3阀瓣Disc
4轴套BearingStainless Steel,Dulex SS,Monel, AL-Bronzel
5弹簧SpringSS316,InconelX-750, Inconel 718
6阀座SeatMefal To Metal
性能规范表Performance Specification
公称压力Nominal Pressure2-42(150LB-900LB)Mpa
强度试验压力Shell Test3-63
密封试验压力Seal Test2.2-46.2
适用温度Suitable Temp.≤450


Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard ASME B16.10.

2. The connecting flange shall conform to the standard ASME B16.50.

GLH41W Axial flow check valve View Drawing

GLH41W  Axial flow check valve Dimensions Table

Pressure Rating ASMENominal Size NPSEnd Connection FacingAPI6D Standard TypeWeight Kg
L(mm)
RFRTJ
CLASS150 PN202RF203-14
3RF241-24
4RF292-37
6RF356-65
8RF495-115
10RF622-184
12RF699-275
14RF787-367
16RF864-515
18RF978-580
20RF978-810
24RF1295-1152
30RF1524-2340
36RF1956-3550
Pressure Rating ASMENominal Size NPSEnd Connection FacingAPI6D Standard TypeWeight Kg
L (mm)
RFRTJ
CLASS300 PN502RF267-18
3RF318-34
4RF356-57
6RF445-105
8RF533-175
10RF622-270
12RF711-365
14RF838-490
16RF864-662
18RF978-910
20RF1016-1180
24RF1346-1785
30RF1594-2810
36RF2083-4376
Pressure Rating ASMENominal Size NPSEnd Connection FacingAPI6D Standard TypeWeight Kg
L(mm)
RFRTJ
CLASS600 PN1102RF/RJ-2329229524
3RF/RJ-3135635944
4RF/RJ-3743243576
6RF/RJ-45559562167
8RF/RJ-49660664280
10RF/RJ-53787791445
12RF/RJ-57838841580
14RF/RJ-61889892715
16RF/RJ-659919941060
18RF/RJ-69109210951442
20RF/RJ-73119412001840
24RF/RJ-77139714072513
30RF/RJ-95165116644564
36RF/RJ-982083-6360
Pressure Rating ASMENominal Size NPSEnd Connection FacingAPI6D Standard TypeWeight Kg
L mm)
RFRTJ
CLASS900 PN1502RF/RJ-2436837139
3RF/RJ-3138138463
4RF/RJ-3745746092
6RF/RJ-45610613197
8RF/RJ-49737740390
10RF/RJ-53838841560
12RF/RJ-57965968870
14RF/RJ-62102910381104
16RF/RJ-66113011401407
18RF/RJ-70121912321960
20RF/RJ-74132113342422
24RF/RJ-78154915683661
Pressure Rating ASMENominal Size NPSEnd Connection FacingAPI6D Standard TypeWeight Kg
L(mm)
RFRTJ
CLASS1500 PN2602RF/RJ-2436837139
3RF/RJ-3547047367
4RF/RJ-39546549121
6RF/RJ-46705711246
8RF/RJ-50832841421
10RF/RJ-549911000730
12RF/RJ-58113011461250
14RF/RJ-63125712762114
16RF/RJ-67138414073010
18RF/RJ-71153715593922
20RF/RJ-75166416865124
24RF/RJ-79194319726962
Pressure Rating ASMENominal Size NPSEnd Connection FacingAPI6D Standard TypeWeight Kg
L (mm)
RFRTJ
CLASS2500 PN4202RF/RJ-2645145454
3RF/RJ-32578584120
4RF/RJ-38673683196
6RF/RJ-47914927487
8RF/RJ-5110221038743
10RF/RJ-55127012921173
12RF/RJ-60142214451750


Other valve products you may need
  • H71H Wafer-Type Lift Check Valve

    Model:

    H71H-10C/H71H-16C/H71H-25C/H71H-40C/H71H-10P/H71H-25P/H71H-40P

    Specification:

    DN15-DN200

    Pressure:

    PN10-PN40

    Material:

    WCB、Stainless Steel

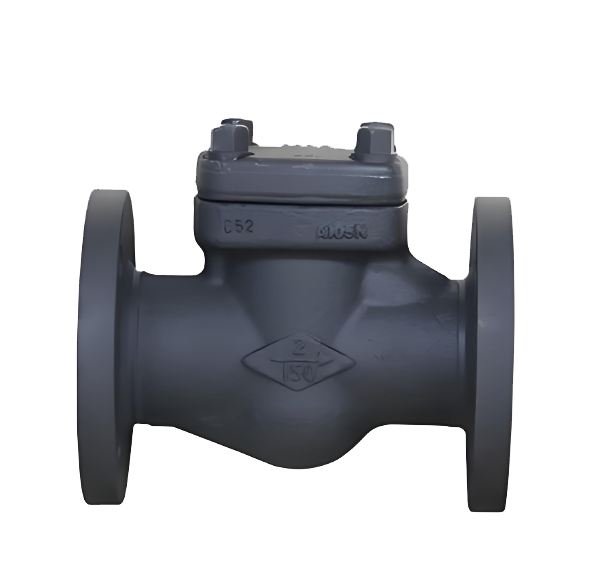

  • H41W Lift Check Valve

    Model:

    H41W-25I/H41W-40I/H41W-64I/1H41W-0I/H41W-25P/H41W-40P/H41W-64P/H41W-10P

    Specification:

    DN15-200

    Pressure:

    PN25,PN40,PN64,PN10

    Material:

    Stainless Steel,carbon steel,Cr-Mo-V Steel
  • H41H Forged Steel Lift Check Valve

    Model:

    H41H-16P/H41H-25P/H41H-10C/H41H-16C/H41H-40P

    Specification:

    DN15-50

    Pressure:

    PN16,PN25,PN40

    Material:

    forged steel、forged stainless steel
