H64Y Self-Sealing Power Plant Check Valve

  • Model:H64Y
  • Specification:DN15-DN300
  • Temperature: ≤ 540 ℃
  • Medium:Water, Oil , Steam
  • Pressure:PN20Mpa-32Mpa
  • Connection method: welded
  • Driving method:automated
  • Material:Carbon Steel, Alloy Steel,forged steel
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

H64Y Self-Sealing Power Plant Check Valve Overview

The H64Y Self-Sealing Power Plant Check Valve is a specialized check valve that utilizes pressure self-tightening sealing technology, specifically designed for ultra-high-pressure and high-temperature power plant systems. The valve body is forged from high-strength alloy steel, with its core innovation lying in the self-tightening sealing structure of the bonnet. This design leverages system pressure to achieve sealing—the higher the pressure, the more reliable the sealing performance.  Featuring a swing-type structure, the valve opens as the disc is pushed by forward-flowing medium and closes rapidly and automatically under the disc's own weight and reverse pressure.  This product is exclusively used in critical sections of supercritical and ultra-supercritical power plants, such as main steam pipelines and high-pressure feedwater systems. It can withstand extreme temperatures and pressures, effectively preventing the backflow of high-temperature, high-pressure steam or feedwater. As such, it is a core component ensuring the safe operation of modern high-parameter power generation units.

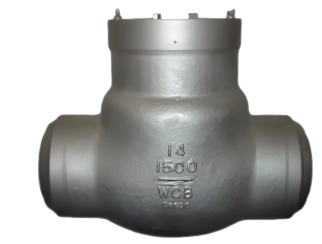

H64Y Self-Sealing Power Plant Check Valve Product Image

H64Y Self-Sealing Power Plant Check Valve Features

1. Pressure Self-Tightening Bonnet Seal

  The innovative self-tightening seal design converts system operating pressure into sealing force, achieving tighter sealing under higher pressure. This completely eliminates the leakage risks associated with traditional flange bolted connections under ultra-high pressure conditions.

2. Ultra-High Parameter Endurance Capability

  Constructed from premium heat-resistant alloy steels (e.g., F92/F22), subjected to precision forging and heat treatment, the valve can withstand operating temperatures exceeding 600°C and extreme pressures above Class 4500.

3. High-Performance Hard Alloy Sealing Surfaces

  The sealing surfaces of the disc and seat are overlay-welded with cobalt-based or nickel-based hard alloys, offering excellent resistance to high-temperature oxidation, erosion, and thermal fatigue. This ensures long-lasting sealing performance under extreme operating conditions.

4. Fully Welded Leak-Free Connection

  The valve body features butt-weld ends that are permanently welded to the pipeline, completely eliminating potential leakage points at removable connections and meeting the highest safety standards for power plants.

5. Long Service Life and High Reliability

  Designed for the lifecycle of power plant applications, the valve features a robust structure and reliable operation. From design and material selection to manufacturing and testing, the entire process adheres to the strictest standards such as ASME, ensuring stable performance throughout the operational life of the unit.

H64Y Self-Sealing Power Plant Check Valve Structure Diagram

Parts Name Material List

序 号NO.名称Name材料Material
5摇杠lever碳钢、合金钢Carbon Steel, Alloy Steel
4填料packing增强柔性石墨Enhanced Flexible Graphite
3阀瓣disc碳钢、合金钢堆STL Carbon Steel, Alloy Steel Stack (STL)
2阀盖bonnet碳钢、合金钢Carbon Steel, Alloy Steel
1阀体body碳钢、合金钢Carbon Steel, Alloy Steel

性能规范表Performance Specification
公称压力Nominal Pressure20-32Mpa
强度试验压力Shell Test30-48
密封试验压力Seal Test22-35.2
适用温度Suitable Temp.≤540


Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard GB/T 12221.

2. The connecting flange shall conform to the standard GB9131.

H64Y Self-Sealing Power Plant Check Valve View Drawing

H64Y Self-Sealing Power Plant Check Valve Dimensions Table

型 号公称通径DN(mm)主要外形尺寸及连接尺寸(mm)重量wt(kg)
LH
H64Y-2005035025050
6543028257
8047032565
10060035080
175900440180
H64Y-320125900409170
225000550415
30013706801200
35013707451638
