H74H Wafer Swing Check Valve

  • Model:H74H-10C/H74H-16C/H74H-25C/H74H-40C/H74H-16P/H74H-25P/H74H-40P
  • Specification: DN50-600
  • Temperature:≤ 400 ℃
  • Medium:Water and water-like media
  • Pressure:PN10,PN16,PN25,PN40
  • Connection method: Wafer
  • Driving method:automated
  • Material:Carbon Steel, Stainless Steel
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

H74H Wafer Swing Check Valve Overview

The H74H Wafer Swing Check Valve is a high-performance check valve featuring a wafer-type connection and a metal hard-seal design for both the body and disc. The valve body is clamped between two pipeline flanges using long bolts, while the internal disc operates by swinging around a fixed pivot to open and close.Constructed from high-temperature-resistant alloy materials with specially hardened sealing surfaces, the valve maintains reliable sealing performance even under demanding conditions such as high temperatures, high pressures, and media containing particles.

The valve opens under forward medium flow and closes rapidly under the disc’s own weight and reverse pressure during backflow. Designed specifically for industrial systems such as petrochemical plants, power stations, and high-temperature steam applications, it is an ideal choice for pipelines with strict installation space limitations and high requirements for check valve performance.

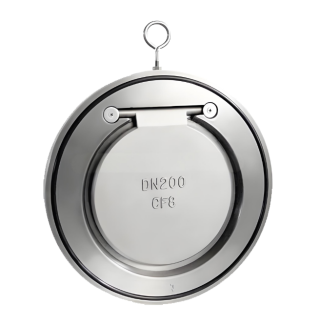

H74H Wafer Swing Check Valve Product Image

H74H Wafer Swing Check Valve Features

1. Compact Structure and High Pressure-Bearing Capacity

  The wafer-type design offers a short face-to-face length and minimal space occupancy. Its metal hard-seal structure enables it to withstand higher system pressures and temperatures, making it suitable for high-pressure differential applications.

2. Metal Hard Seal with Wear Resistance

  The disc and seat feature overlay-welded hard alloy or stainless steel sealing surfaces, providing excellent resistance to erosion, high temperatures, and wear. This ensures a long service life, particularly for media containing trace solid particles.

3. Easy Installation and Cost Savings

  No need for valve body mating flanges; the valve is directly clamped between pipeline flanges using long bolts, simplifying and speeding up installation while significantly reducing material costs and installation space requirements.

4. Flexible Operation and Low Pressure Loss

  The swing-type design allows the disc to swing almost completely away from the flow path when open, resulting in minimal fluid resistance and pressure loss. Rapid closure effectively mitigates water hammer effects.

5. Easy Maintenance and High Reliability

  The simple and robust structure ensures ease of maintenance. When inspection or repair is needed, the valve can be removed simply by loosening the connecting bolts, eliminating the need for pipeline disassembly and reducing maintenance complexity and downtime.

H74H Wafer Swing Check Valve Structure Diagram

Parts Name Material List

序 号NO.名称Name材料Material
3密封圈seal surfaceNBR、EPDM、PTFE、不锈钢stainless steel
2阀瓣disc碳钢+STL、不锈钢 Carbon Steel + STL, Stainless Steel
1阀体body碳钢、不锈钢Carbon Steel , Stainless Steel

性能规范表Performance Specification
公称压力Nominal Pressure1.0/1.6/2.5/4Mpa
强度试验压力Shell Test1.5/2.4/3.75/6
密封试验压力Seal Test1.1/1.76/2.75/4.4
适用温度Suitable Temp.≤425


Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard GB/T 12221.

2. The connecting flange shall conform to the standard GB/T 17241.6.

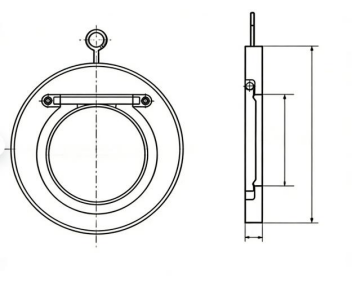

H74H Wafer Swing Check Valve View Drawing

H74H Wafer Swing Check Valve Dimensions Table

SIZEDLD
I型II型PN1.0PN1.6PN2.5PN4.0
50251522109109109109
65381522129129129129
80461522144144144144
100721524164164170170
125951626194194186186
1501141929221221226226
2001402943275275283293
2501882943330331343355
3002163850380386403420
3502634152440446460477
4003055162491498517549
4503565162541558567574
5004066580596620627613
6004827090698737734750


Other valve products you may need
  • PXH44H Slanting Disc Check Valve

    Model:

    PXH44H-CL150/PXH44H-CL300

    Specification:

    2"-36"

    Pressure:

    125/150LB,250/300LB

    Material:

    CI,DI,Carbon Steel, Stainless Steel,Duplex SS Monel
  • HH49X Micro Resistance Slow Closing Butterfly Check Valve

    Model:

    HH49X-10Q/HH49X-16Q/HH49X-25Q/HH49X-10C/HH49X-16C/HH49X-25C/HH49X-25P

    Specification:

    DN50-DN1000

    Pressure:

    PN10,PN16,PN25

    Material:

    Ductile iron,cast iron,carbon steel, stainless steel
  • H76W Dual Plate Check Valves

    Model:

    H76W-10C/H76W-16C/H76W-25C/H76W-40C/H76W-64P/H76W-100P/H76W-160P

    Specification:

    DN50-DN1200

    Pressure:

    PN10-PN160

    Material:

    WCB、Stainless Steel
/storage/20260101/pZo1767259142RkCKTE1.jpg
Complete Guide to Check Valve Selection and Installation: Detailed Explanation of Principles, Selection, and Key Construction Points

Complete Guide to Check Valve Selection and Installation: Detailed Explanation of Principles, Selection, and Key Construction Points Check valves, as crucial safety components in pipeline systems, are essential for preventing medium backflow and ensuring safe system operation. This article will provide you with a comprehensive guide to the selection and installation of check valves.

1. Operating Principle and Classification of Check Valves 1.1 What is a Check Valve?

Check valves, also known as one-way valves or non-return valves, belong to the category of automatic valves. Their working principle is to achieve opening and closing through the flow force of the medium itself. Their core function is to prevent the reverse flow of pipeline medium and ensure one-way flow.

1.2 Main application scenario: foot valve (a special type of check valve) at the water pump suction inlet

Various pipeline systems requiring unidirectional flow of medium

Industrial settings where accidents caused by medium backflow are to be prevented

II. Selection Criteria and Guidelines for Check Valves 2.1 Basic Selection Principles Medium Adaptability: Suitable for clean medium conditions, not recommended for pipelines containing solid particles or high viscosity media.

2.2 Selection of pipeline size (DN) based on pipeline size. Recommended valve types. Applicable pressure range: DN<50mm. Butterfly check valve, vertical lift check valve, diaphragm check valve. Low-pressure environment: 50mm

Advantages: Effectively eliminates the water hammer phenomenon

Limitations: Subject to temperature and pressure constraints, suitable for low-pressure and normal-temperature pipelines

Applicable scenario: Water supply pipelines prone to water hammer

Slow-closing check valve:

Slow-closing swing check valve

Slow-closing butterfly check valve

Applicable scenario: pipeline systems that require minimal or no water hammer impact when shut down

III. Installation specifications and construction requirements for check valves 3.1 Preparatory work before installation Appearance inspection:

Check the valve nameplate information to ensure compliance with the GB 12220 "General Valve Marking" standard

Check the integrity of the valve and confirm that it is undamaged

Pressure test requirements:

If the working pressure exceeds 1.0 MPa or the main pipe shut-off valve is involved, a pressure test must be conducted

Strength test: Nominal pressure × 1.5, duration ≥ 5 minutes, no leakage is considered as qualified

Tightness test: nominal pressure × 1.1, determine the duration according to GB 50243 standard

3.2 Installation location and direction: Strictly follow the design drawings to determine the location, height, and inlet and outlet directions

Flow direction indicator: Ensure that the flow direction of the medium is completely consistent with the direction indicated by the arrow on the valve body

Pipe support:

It is prohibited to let the check valve bear the weight of the pipeline

Large check valves must be equipped with independent support structures

Avoid direct impact of piping pressure on the valve

3.3 Lift check valves are required for specific types of installations:

Vertical flap type: It must be installed on a vertical pipeline

Horizontal flap type: It must be installed on a horizontal pipeline

Swing check valve:

Ensure that the valve disc's rotating shaft is in a horizontal position during installation

Special attention should be paid to the flow direction of the medium during inclined installation

IV. Common Installation Errors and Precautions 4.1 Example of Incorrect Installation: Installing a Vertical Lift Check Valve on a Horizontal Pipe

The valve flow direction is reversed

Large valves have no independent support

Pressure testing was not conducted according to specifications

4.2 The selection and installation location of check valves should be considered during the design phase of the professional advice system

Provide complete operating condition parameters to the supplier during procurement to obtain professional selection advice

For complex systems, it is recommended to consult a professional valve engineer

Conduct regular maintenance and inspection to ensure the check valve operates in normal condition

5. Maintenance points: Regularly check whether the valve can be opened and closed flexibly

Monitor for abnormal sounds, such as water hammer impact

Check the sealing performance to prevent internal leakage

Lubricate the moving parts to ensure normal operation

The correct selection and installation of check valves are crucial for ensuring the safe operation of pipeline systems. Following the selection guidelines and installation specifications provided in this article can prevent various accidents caused by medium backflow, extend the service life of valves, and reduce maintenance costs.

In practical applications, it is recommended to consider specific engineering requirements and medium characteristics, and if necessary, consult professional valve technicians to ensure the optimization of the selection and installation plan.
