PXH44H Slanting Disc Check Valve

  • Model:PXH44H-CL150/PXH44H-CL300
  • Specification:2"-36"
  • Temperature:≤450℃
  • Medium:Water, Steam, Oil
  • Pressure:125/150LB,250/300LB
  • Connection method:flange
  • Driving method:automated
  • Material:CI,DI,Carbon Steel, Stainless Steel,Duplex SS Monel
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

Overview
The tilting disc check valve is an energy-saving check valve featuring a tilted disc design that automatically opens and closes by means of medium flow. It typically adopts a flanged connection. The valve body is mainly made of cast steel, stainless steel or ductile iron, with its internal disc performing an inclined rotary motion around an eccentric shaft. This valve can be installed either horizontally or vertically. When the medium flows in the forward direction, it pushes the disc to open smoothly, providing an almost straight-through flow path with minimal pressure loss. When the medium stops or flows backward, the disc quickly returns to its closed position under its own weight and the reverse medium pressure, effectively reducing water hammer impact. It is specifically designed for piping systems sensitive to water hammer and requiring low flow resistance. Widely used in pump outlets, water supply networks, wastewater treatment, industrial circulating water and similar projects, it serves as an important protective device that enhances system energy efficiency and operational stability.

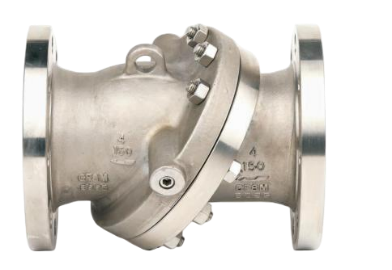

Slanting Disc Check Valve Product Image

Product benefits:

1.The angled body seat allows for a 35% expanded cross sectional flow area, which offers excellent flow characteristics.

2.Short distance of travel offers fast closure.

3.Off-set disc design offers minimal slam performance.

4.Slanting disc offers minimal flow resistance.

5.Excellent design offers maximal cost saving.

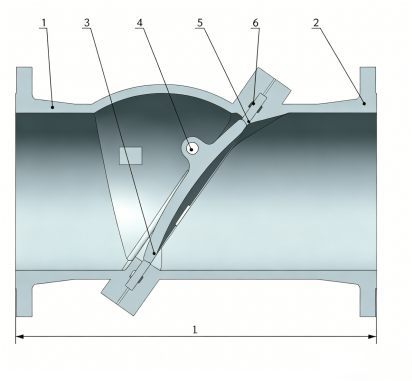

Slanting Disc Check Valve Structure Diagram

Parts Name Material List

序号NO.部件名称Part name材料Material
1出口阀体Outlet BodyCI,DI,Carbon Steel, Stainless Steel,Duplex SS Monel
2进口阀体Inlet Body
3阀瓣Disc
4轴ShaftStainless Steel,Dulex SS.Monel
5密封圈Seat RingStainless Steel,Dulex SS.Monel
6垫片GasketSS+Graphite
性能规范表Performance Specification
公称压力Nominal Pressure2-5(150LB-900LB)Mpa
强度试验压力Shell Test3-7.5
密封试验压力Seal Test2.2-5.5
适用温度Suitable Temp.≤450


Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard ASME B16.10.

2. The connecting flange shall conform to the standard ASME B16.50.

Slanting Disc Check Valve View Drawing

Slanting Disc Check Valve Dimensions Table

NPS InchANSI RatingFace to Face L(mm)weight Kg
215020317
30026726
315024127
30031841
415029246
30035676
615035679
300445123
8150495133
300533208
10150622221
300622304
12150699313
300711467
14150787403
300762565
16150762526
300838769
18150838651
300914989
20150826828
3009911202
241509651310
30011431846
3015013212410
30013712812
3615015113082
30015245376
