VV231Y Direct-Acting Self-Operated Steam Pressure Reducing Valve Overview
The VV231Y Direct-Acting Self-Operated Steam Pressure Reducing Valve is an automatically controlled valve designed specifically for steam systems. It operates without the need for external power, relying instead on the energy of the medium itself to achieve pressure regulation. The valve employs a direct-acting structure where changes in downstream pressure are directly sensed to drive the valve core, adjusting the opening to reduce and stabilize fluctuating inlet steam pressure at a set value. Typically constructed from cast steel or stainless steel, it features a simple and reliable design suitable for saturated or slightly superheated steam conditions. As it requires no electrical or pneumatic power supply, installation is straightforward. This valve is widely used in steam pipelines across industries such as food processing, textiles, chemicals, and heating, providing a cost-effective and reliable solution for stabilizing pressure for steam-utilizing equipment.

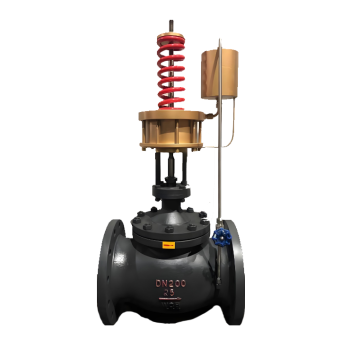

VV231Y Direct-Acting Self-Operated Steam Pressure Reducing Valve Product Image
VV231Y Direct-Acting Self-Operated Steam Pressure Reducing Valve Features
1. Self-Operated, No External Power Required: Utilizes the medium's own pressure for regulation, eliminating the need for external power sources such as electricity or compressed air, making it energy-efficient and suitable for locations without external energy supply.
2. Simple and Reliable Structure: Employs a direct-acting mechanical design with fewer components, resulting in low failure rates, stable and reliable operation, and minimal maintenance requirements.
3. Cost-Effective and Easy Installation: Requires no supporting control system, enabling simple and quick installation. Offers low acquisition and maintenance costs with high cost-effectiveness.
4. Clearly Defined Application Scope: Suitable for steam systems with relatively stable flow and moderate regulation accuracy requirements. Its operating temperature and pressure ranges meet general industrial steam needs.
5. Easy Maintenance: The adjustment mechanism allows for in-line setting of pressure. Key sealing components are easy to replace, minimizing routine maintenance efforts.

VV231Y Direct-Acting Self-Operated Steam Pressure Reducing Valve Structure Diagram
Parts Name Material List
| 序 号NO. | 名称Name | 材料Material | |
| 1 | 阀 体body | ZG230~450、ZG1Cr18Ni9Ti、ZGCr18Ni12Mo2Ti | |
| 2 | 阀芯disc | Cr18Ni9Ti、Cr18Ni12Mo2Ti | |
| 3 | 阀座seat | 1Cr18Ni9Ti、Cr18Ni12Mo2Ti | |
| 4 | 阀杆stem | Cr18Ni9Ti、Cr18Ni12Mo2Ti | |
| 5 | 膜盖Diaphragm Cover | A3、1Cr18Ni9Ti | |
| 6 | 填料packing | 聚四氟乙烯、柔性石墨PTFE, graphite | |
| 7 | 膜 片Diaphragm | 丁晴橡胶、耐油橡胶、氟橡胶NBR, Oil-Resistant Rubber, FKM |
| 性能规范表Performance Specification | ||
| 公称压力Nominal Pressure | 1.6/4 | Mpa |
| 强度试验压力Shell Test | 2.4/6 | |
| 密封试验压力Seal Test | 1.76/4.4 | |
| 适用温度Suitable Temp. | ≤80 | ℃ |
Dimensions Standard Requirements
1. The structural length of the valve shall conform to the standard GB/T12221.
2. The connecting flange shall conform to the standard GB/T 17241.6

VV231Y Direct-Acting Self-Operated Steam Pressure Reducing Valve View Drawing
VV231Y Direct-Acting Self-Operated Steam Pressure Reducing Valve Dimensions Table
| DN | AφR | L | |||||||
| A 32cm2φ172mm | A 80cm2Φ172mm | A 250cm2φ263mm | A 630cm2φ380mm | ||||||
| H | kg | H | kg | H | kg | H | kg | ||
| 15 | 647 | 13.7 | 642 | 13.7 | 662 | 19.2 | 732 | 34.2 | 130 |
| 20 | 647 | 14.2 | 642 | 14.2 | 682 | 19.7 | 732 | 34.7 | 150 |
| 25 | 673 | 17.2 | 668 | 17.2 | 708 | 22.7 | 758 | 37.7 | 160 |
| 32 | 673 | 20.5 | 668 | 20.5 | 708 | 26 | 758 | 41 | 180 |
| 40 | 675 | 21.5 | 670 | 21.5 | 710 | 27 | 760 | 42 | 200 |
| 50 | 675 | 24.5 | 670 | 24.5 | 710 | 30 | 760 | 45 | 230 |
| 65 | 710 | 36.5 | 710 | 36.5 | 745 | 42 | 795 | 57 | 290 |
| 80 | 710 | 40.5 | 710 | 40.5 | 745 | 46 | 795 | 61 | 310 |
| 100 | 815 | 67.5 | 815 | 67.5 | 850 | 73 | 900 | 88 | 350 |
| 250 | 815 | 77.5 | 815 | 77.5 | 850 | 83 | 900 | 98 | 400 |
| 150 | 765 | 93 | 815 | 108 | 480 | ||||
| 200 | 795 | 153 | 845 | 168 | 600 | ||||
| 250 | 842 | 233 | 892 | 248 | 730 | ||||

Model:
ZTP-16C/ZTP-25C/ZTP-40C/ZTP-64C/ZTP-16P/ZTP-25P/ZTP-40P/ZTP-64PSpecification:
DN50~500Pressure:
PN1.6~6.4MPaMaterial:
Carbon steel, stainless steel
Model:
Y43H-DP27/Y43H-DPE/Y43H-DP27YSpecification:
DN15-DN50Pressure:
PN10,PN21,PN25Material:
Cast Iron, Carbon Steel, Stainless Steel
Model:
Y45H-10C/Y45H-25C/Y45H-40C/Y45H-64C/Y45H-10P/Y45H-25P/Y45H-40P/Y45H-64PSpecification:
DN50-500Pressure:
PN16,PN25,PN40,PN64,PN10Material:
Cast Steel、Stainless Steel
Is the noise from the pressure reducing valve disturbing? Understand the 3 fundamental reasons and solutions in one article
The harsh noise generated by pressure reducing valves during operation is not only an environmental pollution problem, but also a precursor to equipment failure. This article will delve into the three fundamental causes of noise generated by pressure reducing valves - mechanical vibration noise, fluid dynamics noise, and aerodynamic noise, and provide professional solutions.
1、 Mechanical vibration noise: a test of design and process
Mechanical vibration noise is the most common type of noise in pressure reducing valves, mainly divided into two forms:
1. Low frequency vibration noise
Causes:
Medium jet and pressure pulsation
The outlet flow rate of the valve is too fast
Unreasonable pipeline layout
Insufficient rigidity of moving parts inside the valve
2. High frequency vibration noise (resonance phenomenon)
Causes:
The natural frequency of the valve coincides with the excitation frequency of the medium
Easy to occur within a specific decompression range
Sensitive to changes in working conditions, with significant noise fluctuations
Solution:
Optimize the clearance design between the liner and valve stem
Improve machining accuracy
Adjust the natural frequency of the valve
Enhance the rigidity of active components
Select appropriate damping materials
2、 Fluid Dynamics Noise: Challenges in Fluid Control
The turbulence and eddies generated when the fluid passes through the pressure reducing valve can cause significant noise problems.
1. Turbulent noise
Features: Low frequency, low noise level
Cause: Interaction between turbulent fluid and the inner surface of valves/pipelines
Impact: Usually does not constitute a serious noise problem
2. Cavitation noise (the most harmful)
Production mechanism:
During the depressurization process, the fluid flow velocity reaches the critical value
The liquid begins to vaporize, producing bubbles
Bubble explosion under pressure generates shock waves
Local instantaneous pressure can reach 196 MPa
Key data:
Initial value of Δ p: the critical pressure reduction value at which liquid begins to cavitation
Exceeding this value leads to a sharp increase in noise
Preventive measures:
Control the actual pressure reduction value below the critical value
Optimize the design of valve disc fluid direction
Adopting a multi-stage decompression structure
Choose anti cavitation materials
3、 Aerodynamic noise: characteristics of compressible fluids
When compressible fluids such as steam pass through pressure reducing areas, unique noise issues arise:
Production principle:
Conversion of fluid mechanical energy into sound energy
Interaction between high-speed airflow and valve structure
Sudden pressure changes cause gas expansion and sound emission
Control method:
Optimize the design of pressure reducing flow channels
Using mufflers or diffusers
Control the outlet flow rate
Reasonably set back pressure
Comprehensive solutions and selection suggestions
Preventive measures during the design phase
Parameter optimization: Accurately calculate operating parameters to ensure that the pressure reduction value is within the design range
Structural design: Adopting streamlined flow channels to reduce turbulence generation
Material selection: Select special alloys with high rigidity and cavitation resistance
Frequency analysis: avoid the natural frequency of the valve coinciding with the excitation frequency
Key points for installation and maintenance
Correct installation: Ensure the length of the front and rear straight pipe sections to avoid sharp bends
Regular testing: Establish a noise monitoring mechanism to detect problems early on
Timely maintenance: replace worn parts and maintain the best condition of the valve
Brand selection recommendation
High pressure differential operating condition: choose multi-stage pressure reducing valve
Liquid medium: focus on anti cavitation design
Gas/Steam: Focus on Aerodynamic Optimization
Sensitive environment: Choose a low-noise dedicated model
Professional Technical Summary
The essence of the noise problem of pressure reducing valves is the process of energy conversion and release. Fundamentally, all noise issues are closely related to the rationality of valve design, manufacturing process accuracy, and compatibility with operating conditions. Through scientific selection, correct installation, and standardized maintenance, it is entirely possible to control the noise of the pressure reducing valve within an acceptable range.
Immediate action suggestion: If you are troubled by pressure reducing valve noise, it is recommended to first record the noise characteristics (frequency, time period, change pattern), check whether the operating parameters deviate from the design values, and promptly contact professional technicians for diagnosis and treatment.
Keywords of this article: pressure reducing valve noise, mechanical vibration noise, cavitation noise, fluid dynamics noise, pressure reducing valve failure, valve noise reduction, industrial noise control, equipment maintenance
Extended reading: For more professional knowledge about industrial valve selection and maintenance, please follow our technical column to obtain the latest solutions and industry practice cases.
