Q46H Four-way Ball Valve Overview

Q46H four-way ball valve is a special structural valve that can achieve multi-directional switching of media and process conversion. Its valve body is equipped with four channels, and multiple flow paths are combined through the rotation of the internal sphere. This valve is usually connected by flanges, with a cast steel or stainless steel body and a specially designed internal spherical passage. The valve seat seal is made of metal hard seal or reinforced composite material. It can simultaneously change the connectivity status of multiple ports in one operation by rotating the handle 90 or 180 degrees. It is widely used in the petrochemical, pharmaceutical, power station, heat exchange, and process industries to complete complex control tasks such as medium crossover, process switching, or system bypass.

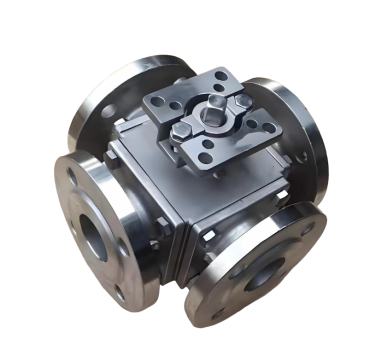

Q46H Four-way Ball Valve Product Image

Q46H Four-way Ball Valve Features

1. Unique four-way flow control: A single valve has four interfaces, which can achieve complete cross directional or process switching and bypass of two mainstream process media through one rotation of the sphere, greatly simplifying the design and equipment configuration of complex pipeline systems.

2. Reliable sealing performance: Adopting metal hard sealing or composite sealing structure, it has good temperature and pressure resistance, suitable for high temperature, high pressure and working conditions with strict sealing requirements, ensuring effective isolation of the medium at all flow positions and preventing flow.

3. Compact integrated design: Replacing functions that originally required multiple valves and fittings with a compact valve unit, saving installation space, reducing pipeline connection points, and lowering leakage risks and system complexity.

4. Convenient and efficient operation: Simply rotate the handle 90 or 180 degrees to quickly switch the process. The operation is intuitive and fast, reducing the number of conversion steps and time, making it easy to achieve automated control of the process.

5. Multi purpose and high adaptability: Suitable for water, steam, oil products, gases, and various chemical media, especially suitable for systems that require regular flow direction switching, process alternating operation, or equipment on and off, with high functional integration and wide applications.
