Q41H Forged Steel Three-Piece Ball Valve Overview

The Q41H Forged Steel Three-Piece Ball Valve is a high-performance industrial ball valve featuring an integrally forged steel body and a three-piece bolted connection structure. The valve body is composed of high-strength forged steel segments (e.g., A105), joined together by alloy steel bolts, with an internally designed metal hard-seal system. The valve operates via a 90-degree rotation of the stem, which drives the precision-machined ball to open or close. It is specifically engineered for high-pressure, high-temperature, and demanding media conditions. The modular three-piece structure facilitates disassembly and maintenance, making it widely applicable in critical systems such as petrochemicals, natural gas, power plants, and high-pressure pipelines. This valve serves as a premium equipment solution for reliable shut-off and in-line maintenance capabilities.

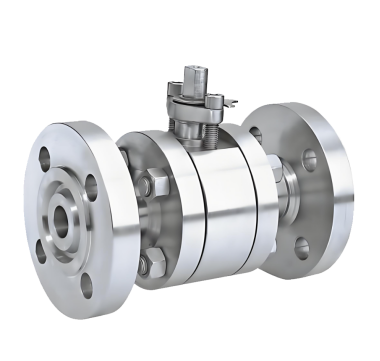

Q41H Forged Steel Three-Piece Ball Valve Product Image

Q41H Forged Steel Three-Piece Ball Valve Features

1. Forged Steel Three-Piece High-Pressure Structure:

  The valve body is made of segmented forged steel, offering high strength and pressure resistance. The three-piece bolted connection design allows for internal inspection and seal replacement without removing the valve from the pipeline, significantly simplifying maintenance.

2. Metal Hard Seal for Demanding Conditions:

  The ball and seat feature hard alloy overlay sealing surfaces, providing excellent resistance to high temperatures, wear, and erosion. This makes the valve suitable for harsh applications involving particulate media and frequent operation.

3. Fire-Safe and Bidirectional Sealing:

  The valve typically complies with fire safety standards such as API 607, ensuring basic sealing performance through metal-to-metal sealing in the event of auxiliary soft seal failure. Most designs also offer reliable bidirectional sealing capability.

4. Stable Operation and Low Maintenance Costs:

  The fixed ball design ensures low and stable operating torque. The three-piece structure greatly simplifies maintenance procedures, significantly reducing downtime and lifecycle maintenance costs.

5. Standardization and High Reliability:

  Designed and manufactured in accordance with high standards such as API 6D, the valve is suitable for high-temperature, high-pressure, and corrosive media applications, providing highly reliable shut-off performance in critical industrial processes.
