Overview
The DJ541 bevel gear low temperature globe valve is a type of globe valve specifically designed for low-temperature operating conditions and equipped with a bevel gear transmission device. It utilizes the bevel gear mechanism to drive the stem and disc, enabling them to perform a vertical lifting motion along the centerline of the seat, achieving reliable opening and closing of the medium in the pipeline. Its core design feature is the adoption of an extended bonnet structure, which positions the stuffing box away from the low-temperature medium area, ensuring the packing operates at near-ambient temperature. This guarantees the valve maintains good sealing performance and operational reliability under low-temperature conditions. The valve's closure member is a plug-type disc, with sealing surfaces designed as flat or tapered surfaces. The disc moves linearly along the centerline of the fluid. The valve uses a flange connection, secured by bolts to the pipeline flange, offering a compact structure and convenient installation and maintenance. The bevel gear transmission is suitable for larger diameter valves or those requiring higher operating torque. The gear reduction mechanism significantly reduces the operating force, making opening and closing control lighter and smoother. The stem movement type is typically the rising stem type (stem rises, handwheel does not rise), utilizing bevel gear transmission and threaded transmission to efficiently convert rotational force into the linear motion of the stem and disc, achieving stable and sensitive opening and closing control. This valve is suitable for management systems in low-temperature liquid storage and transportation equipment. It features flexible operation, reliable sealing, and labor-saving operation, making it widely used in pipeline systems for low-temperature media such as liquefied natural gas, ethylene, liquid oxygen, and liquid nitrogen. It is particularly suitable for large-diameter pipelines or low-temperature applications requiring reliable shut-off or fluid passage.

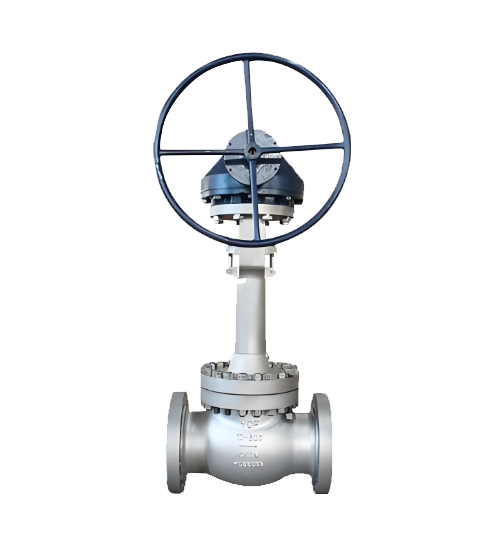

DJ541 Bevel Gear Low Temperature Globe Valve Product Image

Features

1、Extended Bonnet Design, Reliable Low-Temperature Sealing: The extended bonnet structure effectively isolates the low-temperature medium from the stuffing box, ensuring the packing operates at near-ambient temperature. This prevents the packing from freezing and failing, guaranteeing the valve's sealing performance and operational reliability under low-temperature conditions.

2、Excellent Low-Temperature Sealing Performance: The sealing pair of the disc and seat utilizes a tapered or flat sealing structure. Through precision grinding and pairing, combined with low-temperature elastic gaskets or self-energizing sealing design, it maintains good specific sealing pressure under low-temperature conditions, achieving tight shut-off and effectively preventing internal leakage of the medium.

3、Low Fluid Resistance, Optimized Flow Path: The valve body features a streamlined channel design, providing a smooth transition for the medium flow. This significantly reduces flow resistance and pressure loss, making it suitable for low-temperature systems sensitive to pressure drops.

4、Bevel Gear Transmission, Light and Labor-Saving Operation: Equipped with a bevel gear transmission device, the gear reduction mechanism significantly lowers the operating torque. This is especially suitable for large-diameter or high-pressure class low-temperature valves. The opening and closing process is smooth and controllable, effectively reducing operating effort while maintaining precise control of the valve position.

5、Low-Temperature Adapted Material, Durable and Economical: Main components are made of corrosion-resistant materials suitable for low-temperature conditions, such as LCB, LC3, and CF8. The structure is robust, ensuring a long service life. The overall design is simple with fewer potential failure points, making routine maintenance and seal replacement relatively convenient.

6、Widely Applicable for Low-Temperature Media and Large-Diameter Pipelines: Specifically designed for pipeline systems handling low-temperature media like liquefied natural gas, liquid oxygen, liquid nitrogen, liquid argon, and low-temperature ethylene. It is particularly suitable for large-diameter pipelines or low-temperature applications requiring frequent operation or higher operating torque, meeting the demands of industries such as petrochemicals, air separation, and liquefied gas storage and transportation for large-diameter low-temperature valves.
