Overview

The J11W brass internal thread globe valve is a versatile valve constructed from high-quality copper alloy and featuring an internal thread connection design. It operates by rotating the handwheel to drive the valve stem and disc along the vertical axis of the seat, enabling reliable opening, closing, and flow control of pipelines.

The core design lies in the use of high-purity copper alloy casting for critical components such as the valve body, bonnet, and disc, which provides excellent thermal conductivity, corrosion resistance, and machinability for effective sealing. This makes it particularly suitable for water, steam, oil products, and mildly corrosive media.

The valve sealing pair adopts a conical or planar precision fit structure, combined with an elastic gasket or self-centering design, ensuring tight sealing under normal temperature and medium-to-low-pressure conditions. The valve employs an internal thread connection method, allowing direct installation by screwing onto the pipeline system via pipe threads, resulting in a compact structure and easy assembly/disassembly.

The valve is manually operated by rotating the handwheel, utilizing a threaded transmission mechanism to convert rotational force into linear motion of the stem and disc, achieving smooth and responsive opening and closing operations. This valve is widely used in building water supply and drainage, HVAC systems, small industrial equipment, instrument pipelines, and household piping systems. It is especially suitable for applications where valve weight, corrosion resistance, and cost-effectiveness are key considerations.

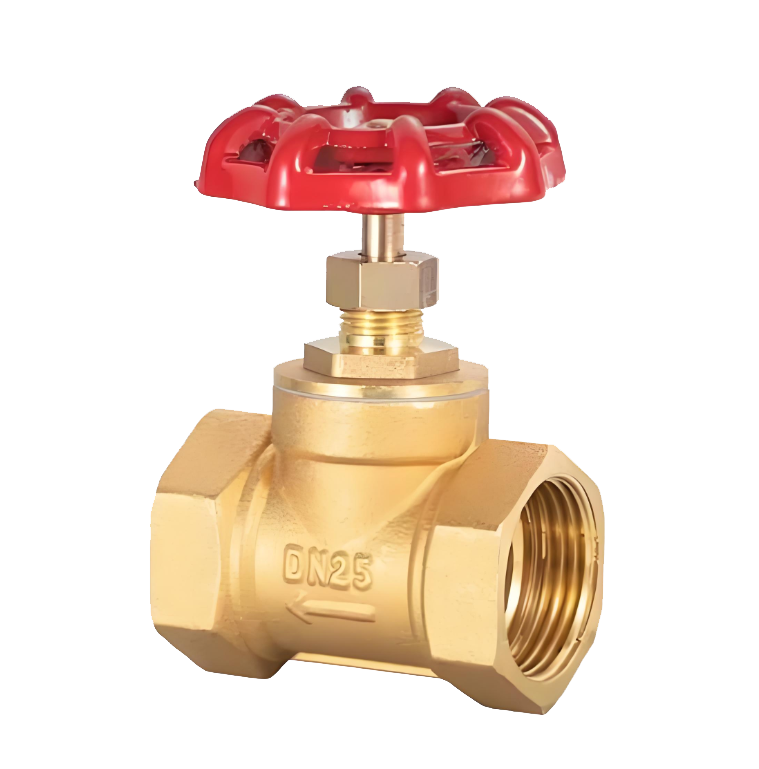

Product drawing of J11W brass internal thread globe valve

Features

1.Excellent Corrosion Resistance and Hygiene Performance:Key components such as the valve body and bonnet are cast from high-purity copper alloy, which inherently resists corrosion and inhibits bacterial growth. This makes it particularly suitable for water supply, HVAC, and food-grade piping systems, ensuring long-term rust-free operation and maintaining medium purity.

2.Reliable Sealing and Durable Design:The valve disc and seat sealing pair feature a precisely ground conical or planar structure, combined with elastic gaskets or copper alloy self-sealing designs. This ensures tight shutoff under medium-to-low-pressure conditions, offering excellent resistance to erosion and wear for extended service life.

3.Lightweight and Compact Structure:The all-copper construction significantly reduces valve weight compared to cast iron or stainless steel valves of the same specifications, making installation and handling easier. The internal thread connection eliminates the need for flanges, resulting in a compact design suitable for space-constrained pipeline layouts.

4.Superior Thermal Conductivity and Freeze Resistance:The high thermal conductivity of copper alloy allows rapid equalization of localized temperature variations, minimizing sealing stress caused by temperature differences. It also provides some resistance to freeze expansion in cold environments, making it suitable for chilled water, refrigeration, and similar systems.

5.Flexible Operation and Easy Maintenance:The lightweight handwheel drive mechanism requires minimal torque for opening and closing, while the stem’s vertical movement provides intuitive and precise control. The simple stuffing box design allows for quick adjustment of the gland or replacement of standard packing to address minor leaks, ensuring low maintenance costs.

6.Cost-Effective and Broad Compatibility:More economical than stainless steel valves, it offers a high cost-performance ratio. Compliant with universal pipe thread standards (e.g., G, R), it can be directly connected to common copper pipes, galvanized pipes, or plastic fittings. Widely used in residential buildings, agricultural irrigation, small industrial equipment, and similar applications.

7.Versatile Media Suitability:Suitable for water, steam, oil, air, and non-corrosive liquids or gases. The operating temperature range covers standard residential and general industrial needs (-20℃ to +200℃), with pressure ratings meeting mainstream pipeline standards.

8.Standardized Design and Comprehensive Certifications:The valve design and manufacturing comply with national valve standards (e.g., GB, JB). Materials meet hygiene and environmental requirements, and drinking water safety certifications (e.g., NSF/WRAS) can be provided as needed to satisfy various industry regulations.
