Overview

J41W brass globe valve is a universal valve with flange connection. By rotating the handwheel to drive the valve stem and disc, it can move vertically along the center line of the valve seat, achieving reliable cutoff and flow regulation of the pipeline medium. The core of its design lies in the fact that the valve body and key components are all made of high-quality brass (copper alloy) cast as a whole, with a compact structure and good corrosion resistance. The valve adopts a sealing surface (W-shaped) directly machined from the valve body, without the need for additional sealing rings, ensuring the simplicity and reliability of the structure. The valve is connected to the pipeline system through flanges at both ends and installed securely. The valve relies on a standard handwheel for manual operation, converting rotational force into linear motion of the valve stem through threaded transmission, achieving smooth opening and closing. This valve is designed specifically for working conditions such as water, oil, steam, and general corrosive media. It is suitable for building, HVAC, water supply and drainage, and general industrial pipeline systems with a nominal pressure of PN16 or below, and is widely used in applications that require good corrosion resistance and economy.

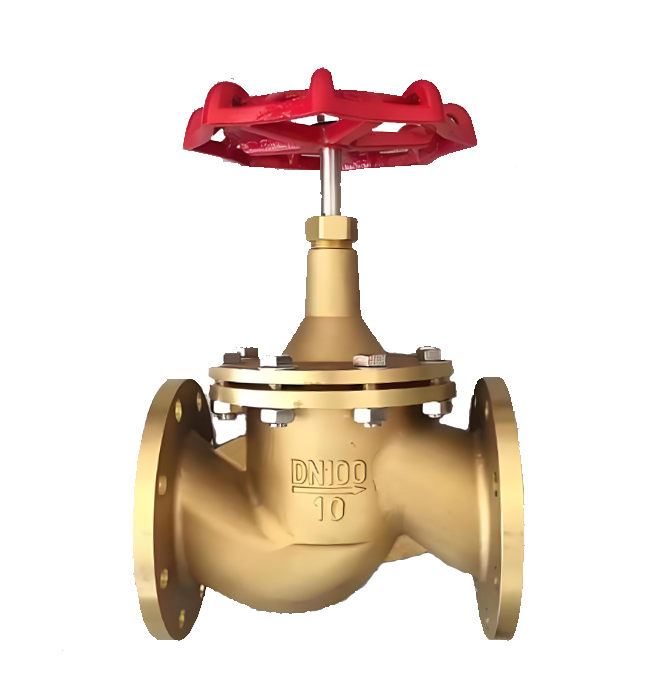

Product drawing of J41W brass flange globe valve

feature

1. Excellent corrosion resistance: The main components such as the valve body and valve cover are made of high-quality brass cast as a whole, which has good corrosion resistance to various media such as water, steam, non oxidizing acids, alkalis, and salts, extending the service life of the valve in humid and generally corrosive environments.

2. Compact structure and economic practicality: Brass material is easy to cast and process, and the overall structure design of the valve is compact, lightweight, and small in volume. The manufacturing and procurement costs are relatively economical, making it a highly cost-effective universal shut-off valve.

3. Reliable sealing performance: The sealing surface (W-shaped) formed by direct processing of the valve body is matched with the valve disc sealing pair through precision grinding to achieve metal to metal hard sealing. This structure has no additional non-metallic sealing rings, avoiding leakage problems caused by aging or detachment of the sealing rings. The sealing is reliable and durable.

4. Suitable for various media: With the corrosion resistance of brass, this valve can be widely used in pipelines for water, oil, steam (saturated steam), air, and general weakly corrosive media with nominal pressure below PN16, with strong versatility.

5. Easy to operate and maintain: Adopting a standard lifting rod structure and an open rod design, the valve opening can be intuitively controlled by rotating the handwheel. The valve structure is simple, with a low failure rate, making daily maintenance and component replacement (such as packing) very convenient.

6. Standard connection and safety reliability: The valve adopts flange connection, which complies with national standards (such as GB/T 9113). It is easy and firm to install and connect with the pipeline flange, and the sealing surface is not easily damaged. Its structural design meets the strength and rigidity requirements under conventional working conditions, ensuring safe use.
