Overview

The J44H American Standard Angle Globe Valve is a forged or cast stop valve strictly designed in accordance with ANSI/ASME standards. It utilizes a handwheel or electric actuator to drive the stem and disc in lifting motion, achieving reliable opening and closing of media in pipeline systems.The valve body is precision-manufactured from A105 carbon steel, F304/F316 stainless steel, or alloy steel, offering compact structure, good rigidity, and reliable sealing. The closure member features a plug-type or conical disc, with sealing surfaces designed as flat or tapered surfaces. The disc moves linearly along the seat centerline to achieve strict shut-off of media flow direction.The valve adopts flanged connection in compliance with ANSI B16.5 standards, facilitating convenient installation and disassembly. The stem is of the rising type, achieving stable opening and closing control through thread transmission.

Available with manual, gear, or electric actuators, the valve is suitable for operating temperatures ranging from -29℃ to +425℃. It is applicable for steam, oil, water, and weakly corrosive media, widely used in petrochemical, power, metallurgy, and pipeline transportation industries.

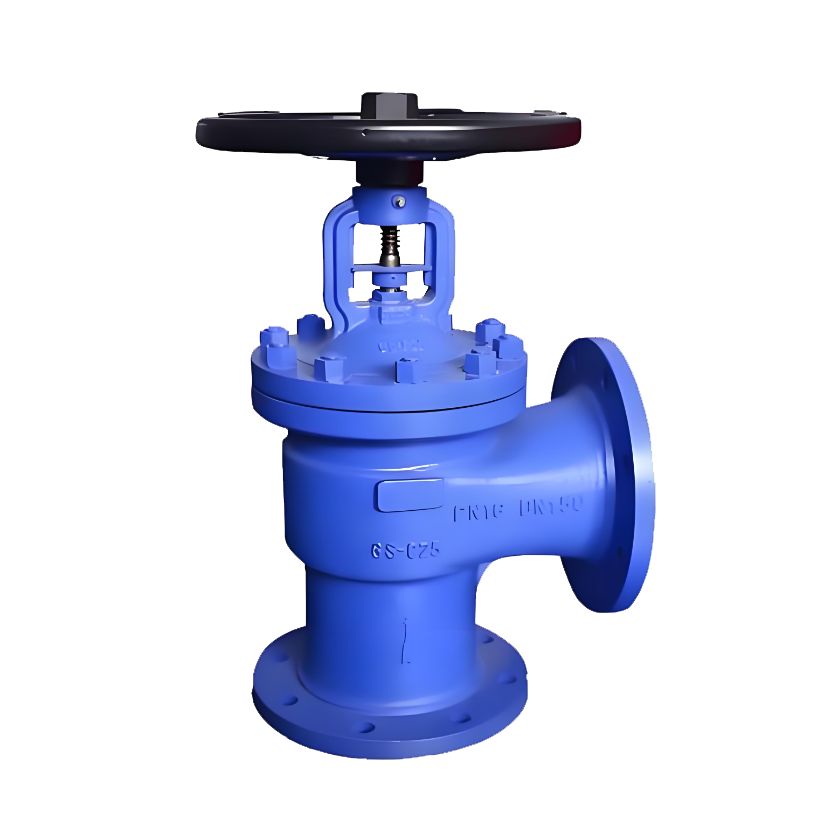

J44H American Standard Angle Globe Valve Product Drawing

Features

1、Strict Compliance with American Standards, Adapted for International Market: The product is manufactured in strict accordance with ANSI/ASME B16.34 design standards, ANSI B16.10 face-to-face dimensions standards, and ANSI B16.5 flange connection standards. It meets international requirements for petroleum, chemical, power, and other industries, making it suitable for industrial pipeline systems worldwide.

2、Diverse Materials, Strong Adaptability: The valve body is made of A105 carbon steel, F304/F316 stainless steel, and alloy steels (such as F11, F22). Appropriate materials can be selected according to different media, meeting transmission requirements from steam and oil to weakly corrosive media.

3、Reliable Sealing, Excellent Shut-Off Performance: The closure member features a plug-type or conical disc with sealing surfaces precision-lapped in flat or tapered mating pairs. During opening and closing, the sealing surfaces have no relative sliding, minimizing wear and scratches. This ensures good sealing performance, long service life, and achieves tight shut-off in pipelines.

4、Low Flow Resistance, Minimal Pressure Drop: The angle-style design changes medium flow direction by 90°, offering smoother flow passage compared to straight-through globe valves. This results in low fluid resistance, making it suitable for applications requiring changes in pipeline direction with strict pressure drop requirements.

5、Flexible Operation Methods to Meet Different Requirements: Depending on working conditions, the valve can be equipped with manual (handwheel), spur gear transmission, bevel gear transmission, pneumatic, hydraulic, or electric actuators. This enables on-site operation or remote automated control, adapting to pipeline systems with varying automation levels.

6、Wide Application Range, Broad Operating Conditions: Suitable for steam, oil, water, and weakly corrosive media at operating temperatures from -29℃ to +425℃ (A105 material). Widely used in petrochemical, power, metallurgy, pipeline transportation, and heating pipeline network industries.
