The J641H pneumatic piston fast shut-off valve is an industrial safety control unit consisting of a high-thrust pneumatic piston actuator and a high-sealing straight-through single-seated valve body. This valve is specifically designed for Emergency Shutdown (ESD) or programmed opening applications in industries such as petroleum, chemical, and power where safety requirements are extremely stringent. By controlling the air supply direction via solenoid valves, the compressed air drives the piston at high speed within the cylinder, completing the full stroke in milliseconds to seconds. Due to the piston-type drive mechanism, its output thrust significantly exceeds that of traditional diaphragm valves, making it ideal for tight shut-off in high-pressure differential and large-diameter pipelines. The J641H series is a critical protective device for ensuring the inherent safety of process flows.

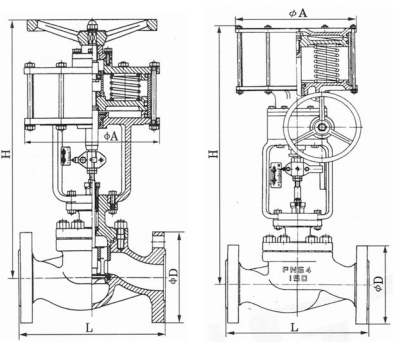

Product Image of J641H Pneumatic Piston Quick Shut-off Valve

Feature

1.Rapid action response:Equipped with a high-performance piston actuator, utilizing the instantaneous energy release of compressed air to generate powerful force. The rapid speed can quickly cut off medium flow in critical moments, effectively preventing accidents from escalating.
2.Extreme output thrust and pressure differential resistance:The cylinder actuator features high pressure ratings and a large effective area, providing immense closing force. This ensures the disc is pressed tightly against the seat even under complex high-pressure drop conditions for reliable mechanical sealing.
3.Bubble-tight shut-off performance:The sealing pair is precision-ground and available in metal-to-metal or soft-seat configurations. It achieves true zero leakage in the closed position, effectively protecting downstream pipelines and expensive equipment.
4.Intrinsic safety and fail-safe logic:Driven by compressed air, it is naturally explosion-proof. Supports fail-safe modes (e.g., fail-closed), relying on built-in heavy-duty springs to force the valve to its safety position during power or air supply failure.
5.Robust construction for high-frequency operation:The inner cylinder wall is hardened and mirror-polished for minimal friction. The rugged structure is vibration-resistant and capable of handling frequent cycling without mechanical fatigue, ensuring a long service life.
6.Streamlined flow path and high capacity:The valve body features an S-shaped flow design with smooth internal cavities and minimal resistance. It meets process discharge requirements while significantly reducing pressure drop during medium flow.
7.Environmental resistance and easy service:The high protection rating of the actuator housing suits outdoor, humid, or dusty environments. Standardized components and fewer wearing parts allow for rapid on-site maintenance without removing the valve from the line.
8.Integrated intelligent accessories:Easily equipped with intelligent solenoid valves, limit switches, and filter regulators. Supports real-time monitoring via DCS with accurate feedback for complex interlocking control.
