DZ61W American Standard Cryogenic Welded Gate Valve Overview

The DZ61W American Standard Cryogenic Welded Gate Valve is a high-performance gate valve specifically designed for cryogenic services, featuring a forged steel body and welded end connections. It is strictly manufactured in accordance with American API standards and is suitable for ultra-low temperature media such as Liquefied Natural Gas (LNG), liquid oxygen, liquid nitrogen, liquid hydrogen, liquid ammonia, and liquid ethylene.The valve body and key components are manufactured from A350 LF2/LF3 low-temperature alloy steel or F304/F316L forged stainless steel. These components undergo deep cryogenic treatment to eliminate residual stresses, ensuring excellent low-temperature toughness and dimensional stability at temperatures as low as -196°C.The valve incorporates an extended bonnet design, with the bonnet length determined based on the operating temperature. This positions the stuffing box away from the cold zone, preventing the packing from freezing and mitigating valve stem seizure.This valve is widely used in LNG terminals, air separation units, petrochemical low-temperature installations, and energy systems. It is a critical piece of equipment for achieving reliable shut-off under ultra-low temperature working conditions.

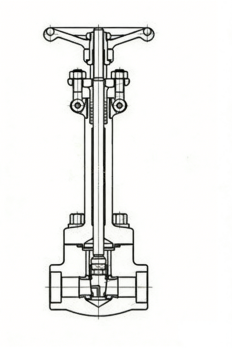

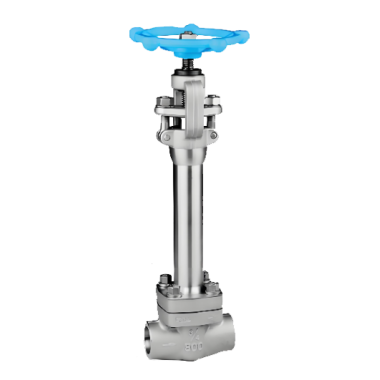

DZ61W American Standard Cryogenic Welded Gate Valve Product Image

DZ61W American Standard Cryogenic Welded Gate Valve Features

1.  Strict Compliance with API Standards: Design and manufacturing conform to specifications such as ANSI B16.34, API 600, and API 602. Inspection and testing comply with API 598 standards, ensuring valve reliability and interchangeability under cryogenic operating conditions.

2.  Permanent Sealing with Welded Connection: Featuring socket weld or butt weld connections that integrate the valve with the pipeline, this design completely eliminates the risk of leakage at connection points. It is ideal for cryogenic systems where leakage is not permitted.

3.  Cryogenic Treatment and Low-Temperature Materials: The chemical composition and low-temperature impact toughness of materials are strictly controlled. Components undergo deep cryogenic treatment to relieve stress, ensuring toughness and dimensional stability at -196°C, preventing brittle fracture and leakage due to deformation.

4.  Extended Bonnet Anti-Freezing Design: The bonnet length is determined based on the valve's operating temperature, effectively lengthening the path for cold conduction. This ensures the stuffing box remains in a higher temperature zone, preventing the packing from freezing and the valve stem from seizing.

5.  Cavity Pressure Relief Safety Structure: To prevent abnormal pressure rise in the valve cavity, a pressure relief hole is provided on the inlet side of the gate. This effectively avoids the risk of body damage caused by medium vaporization and expansion, enhancing valve safety.

6.  Low Fluid Resistance and Wide Applicability: The medium flow direction is unrestricted, with no flow disturbance or pressure drop, resulting in low fluid resistance and minimal erosion of the sealing surfaces. It is suitable for a wide range of cryogenic media, including methane, ethane, propane, liquid ammonia, liquid oxygen, liquid nitrogen, and liquefied natural gas.
