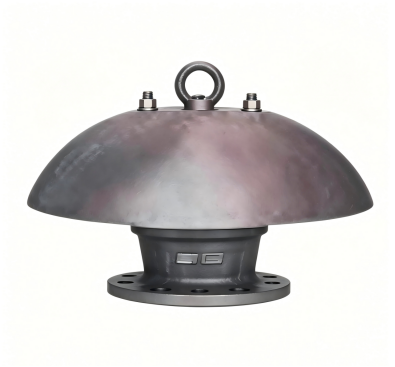

The GTQ vent pipe/vent cap is an air exchange device installed on the vent nozzle of atmospheric or low‑pressure storage tanks. It consists of a rain cover, an insect screen, and a straight or elbow‑type housing, allowing free gas flow in/out of the tank due to liquid transfer or temperature changes, automatically balancing the pressure difference between the tank and the atmosphere, and preventing deformation or rupture caused by overpressure or vacuum. Its core purpose is to provide safe and efficient venting for atmospheric tanks such as water tanks, oil tanks, chemical tanks, and food tanks, with an optional flame arrestor layer to meet fire and explosion protection requirements.

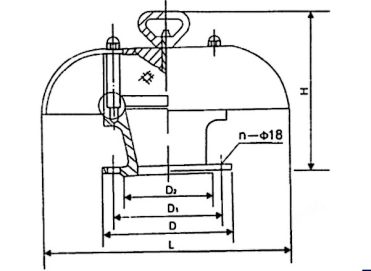

Product Drawing of GTQ vent cap

Features:

1. Free venting for automatic pressure balance: Straight or elbow structure provides an unobstructed gas passage, automatically balancing tank pressure without moving parts, ensuring high reliability.

2. Rain and dust protection design: Top rain cover prevents rain, dust, and debris from entering the tank; optional insect screen prevents insects and birds from entering.

3. Optional flame arrestor function: Can be equipped with a stainless steel corrugated flame arrestor layer to prevent external flames from entering the tank through the vent pipe, meeting fire protection codes.

4. Large venting capacity with low pressure drop: Large flow cross‑sectional area minimizes gas flow resistance, meeting venting requirements during rapid filling and discharging.

5. Multiple corrosion‑resistant materials: Housing available in carbon steel, stainless steel, aluminum alloy, or plastic (UPVC/PP) to suit various media such as water, oil, chemicals, and outdoor environments.

6. Simple structure with easy installation and maintenance: Standard flange or threaded connections for easy installation; removable rain cover and insect screen for convenient cleaning, low maintenance cost.

7. Wide application range: Suitable for vent piping of atmospheric tanks in water treatment, petrochemical, food and beverage, environmental protection, and other industries.

8. Compliant with relevant standards: Designed and manufactured according to SH/T 3007 “Design specification for tank farm of petrochemical storage and transportation system” and other standards.
