The ZGB-1 corrugated plate flame arrester for petroleum storage tanks is a flame arrestor safety device installed on tank breather lines, vent systems, or vapor recovery pipelines. It adopts stainless steel corrugated plate (corrugated tube) as the flame arresting element. The element quenches flames through the narrow gaps of the corrugated channels, effectively preventing external flame propagation into the storage tank. This flame arrester features high flame arresting efficiency, low pressure drop, and good corrosion resistance. Its core purpose is to be installed on breather valve inlets/outlets of fixed roof tanks and floating roof tanks, or nitrogen blanketing system pipelines in petroleum, chemical and other industries, preventing tank vapors from being ignited by lightning, static electricity, or external ignition sources, thereby ensuring the intrinsic safety of storage tanks during normal breathing and emergency relief, and meeting fire and explosion protection codes for petrochemical tank farms.

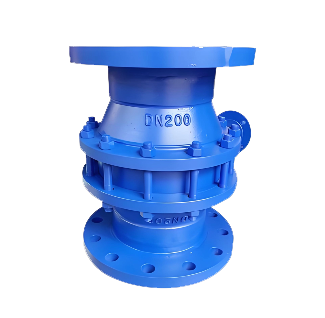

Product Drawing of ZGB-1 corrugated flame arrester for oil storage tank

Features:

1. Corrugated plate flame arrestor element: Multiple layers of stainless steel corrugated strip and flat strip are alternately wound to form uniform triangular or rectangular narrow passages, providing a very short flame quenching distance for stable and reliable flame arresting performance.

2. Bidirectional flame arresting: Can block flame propagation from either the tank side or the atmosphere side, suitable for installation on both inlet and outlet of breather valves.

3. Large flow area, low pressure drop: High porosity (≥90%) of the corrugated channels minimizes gas flow resistance without affecting normal tank breathing capacity.

4. High temperature resistance: Stainless steel construction withstands short-term high-temperature flame impact without deformation or sintering.

5. Strong corrosion resistance: Flame arrestor element and housing available in 304, 316L stainless steel or carbon steel (with anti-corrosion coating), suitable for corrosive media such as petroleum and hydrocarbons, as well as outdoor environments.

6. Compact structure, easy installation: Flange connections match standard breather valve and piping interfaces; can be installed horizontally or vertically; easy to disassemble for maintenance.

7. Code compliant: Designed and manufactured according to GB 5908, ISO 16852 and other standards, certified by authorized testing agencies.

8. Easy maintenance: Flame arrestor element can be extracted from the housing for periodic cleaning of carbon deposits or impurities and then reinstalled, eliminating the need for complete replacement.
