Overview

The GJ6K41X-6Z normally open pneumatic pinch valve is a pneumatically operated pinch valve specifically developed for the conveying of slurries, abrasives, and dust-type media. The product series covers nominal diameters from DN25 to DN400, with flange connection dimensions strictly complying with HG/T 20615-2009 (150LB) and face-to-face dimensions per Q/LK001-2018, making it perfectly adaptable to heavy-duty piping systems in mining, metallurgy, chemical, and environmental protection industries. The valve adopts a normally open pneumatic actuation design, achieving reliable shut-off by compressed air squeezing the internal rubber sleeve at air supply pressures ranging from 0.4MPa to 0.6MPa, and automatically returning to the fully open position upon loss of air pressure, offering both operational safety and convenience. The valve body is available in three material options—aluminum alloy, cast iron, and cast steel—paired with high-quality wear-resistant rubber sleeves, maintaining excellent sealing performance and wear resistance at operating temperatures up to 85℃, making it an ideal control component for slurry transportation and dust control applications.

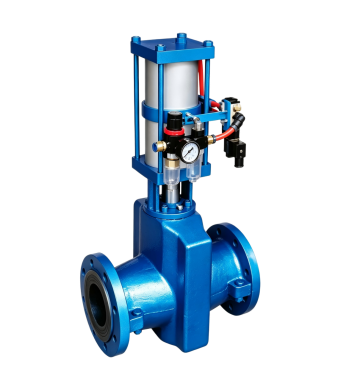

Product Image: GJ6K41X-6Z Normally Open Pneumatic Pinch Valve

Feature

Broad size coverage with standardized connections: the nominal diameter range covers the full DN25 to DN400 series, featuring standard flange connections that strictly comply with HG/T 20615-2009 (150LB) flange standards and Q/LK001-2018 face-to-face dimensions, ensuring seamless integration with various industrial piping systems worldwide.

Normally open pneumatic actuation: the normally open pneumatic actuator ensures the valve opens upon loss of air pressure and closes upon air supply, and in the event of an unintended air supply interruption, the valve automatically returns to the fully open position, effectively preventing pipeline blockages or equipment dry-running caused by pressure loss, making it particularly suitable for applications with high safety interlock requirements.

Superior wear and corrosion resistance: the internal rubber sleeve, which is in direct contact with the medium, leverages the inherent elasticity and wear resistance of rubber to withstand long-term erosion from highly abrasive media such as slurries, abrasives, and dry/wet dusts, while effectively protecting the metallic valve body from corrosion.

Three valve body material options: aluminum alloy is lightweight with excellent heat dissipation, suitable for standard operating conditions; cast iron offers high strength and rigidity, ideal for large-diameter applications; cast steel provides superior comprehensive mechanical properties and impact resistance, meeting the demands of high-pressure and high-load industrial environments.
