Overview

The GJ941X-6L series electric pinch valve is an electrically actuated pinch-type control valve specifically engineered for demanding industrial piping systems handling slurries, abrasives, and dry/wet dust-like media. This product series covers nominal diameters from DN25 to DN300, featuring a compact and straightforward structure with standardized flanged connections, making it ideal for integration into fluid control nodes of large and medium-sized industrial networks such as mining and metallurgy, chemical and pharmaceutical, building materials and cement, dust control, and wastewater treatment. The valve utilizes an electrically actuated pinching principle, where the electric actuator compresses the internal rubber sleeve to achieve opening and closing, operating smoothly and reliably within a pressure range of 0.4 to 0.6 MPa. The valve body is crafted from high-quality cast iron, aluminum alloy, and cast steel, paired with premium wear-resistant rubber sleeves, maintaining excellent sealing performance and fatigue resistance under operating temperatures up to 85°C. It stands as an ideal core component for the transport and shut-off control of coarse, high-wear fluid media in modern industrial applications.

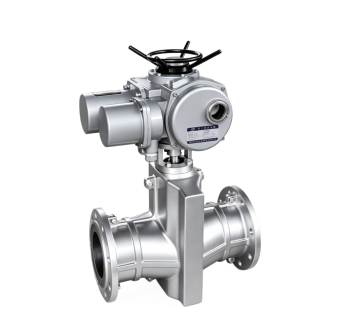

Product Image: GJ941X-6L Electric Pinch Valve

Feature

Wide Bore Range with Flanged Connections: Tailor-made for DN25 to DN300 industrial pipelines with extensive size coverage, featuring standardized flanged connections for convenient and reliable installation, perfectly matching domestic and international industrial piping configurations.
Electric Actuation with Precise Control: Adopts electric drive mechanism powered by electricity, equipped with high-precision electric actuators, delivering smooth and precise opening and closing actions with support for remote operation and automation system integration, particularly suitable for industrial scenarios requiring accurate regulation or frequent operation.
Superior Wear Resistance and Sealing: Optimized through targeted material selection, suitable for media temperatures up to 85°C, capable of handling highly abrasive media such as slurries, abrasives, and dry/wet dust with ease. The high-quality rubber sleeve maintains excellent sealing performance even under long-term erosive conditions.
Triple-Material Valve Body for Flexible Selection: Cast iron body offers high strength and cost-effectiveness, ideal for conventional water and air applications in power plants and wastewater treatment; aluminum alloy body provides lightweight construction and excellent heat dissipation, suitable for mobile or suspended equipment with weight constraints; cast steel body is specifically engineered for high-pressure or impact-loaded conditions, delivering outstanding impact resistance and fatigue strength.
