Overview

The FQ41F46-16C lined fluoroplastic spherical discharge valve is a highly reliable manual control valve specifically engineered for highly corrosive fluid systems. This series covers nominal diameters from DN25 to DN200 and features flanged connections in compliance with national flange standards, enabling standardized interface with various reactors, storage tanks, and highly corrosive media pipelines. The valve adopts a full fluoroplastic-lined structure, with all wetted parts lined with high-quality F46 (fluorinated ethylene propylene) material, combined with the high mechanical strength of a carbon steel body, to maintain exceptional corrosion resistance within a nominal pressure range of 0.6 to 2.5 MPa. The valve is manually operated, achieving 90° rotation of the ball through a handle or worm gear drive, offering lightweight operating torque and rapid switching. This series reliably withstands prolonged exposure to strong acids, strong alkalis, strong oxidizers, organic solvents, and other extremely corrosive media, serving as an indispensable core component in corrosive material discharge and control systems across modern chemical, metallurgical, pharmaceutical, and environmental protection industries.

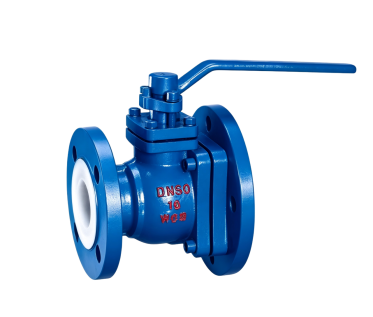

Product Image:FQ41F46-16C Fluorine-Lined Ball Type Bottom Discharge Valve

Feature

Full Fluoroplastic Lining Barrier:：All internal surfaces of the body, ball, and wetted parts are uniformly coated with a high-quality F46 lining layer of adequate thickness and non-porous density, forming an impregnable chemical isolation barrier that resists almost all chemical media except molten alkali metals, high-temperature fluorine elements, and chlorine trifluoride.
Broad Size Range Coverage: Offers a complete size range from DN25 to DN200, fully covering flow requirements from small pilot plants to large-scale chemical production lines. A single series meets the selection needs for corrosive discharge stations throughout the plant.
Wide Pressure and Temperature Window: Nominal pressure covers 0.6 MPa to 2.5 MPa, with an applicable temperature range from -20℃ to 150℃, ensuring high versatility within common ambient to medium-temperature corrosive operating ranges in chemical processes.
Carbon Steel Substrate with F46 Lining Combination: The valve body is manufactured from high-quality carbon steel, providing mechanical strength sufficient to withstand piping stresses and operating torque, while the F46 lining handles all corrosion resistance functions. The two are intimately bonded through specialized processing techniques, ensuring both structural reliability and excellent corrosion resistance.
Manual Operation Light and Reliable: Manual operation requires no external power or air supply. The light handle or worm gear drive mechanism features a well-designed structure with low operating torque, enabling rapid opening/closing and precise flow regulation, particularly suited for discharge stations without on-site utilities or requiring frequent operation.
