Overview

The SRTF46 series PTFE/FEP-lined T-type straight-through filter is a high-performance fluid filtration device deeply customized for highly corrosive, medium-to-large diameter industrial pipelines. Covering nominal diameters from DN50 to DN300, this series utilizes standard flange connections, allowing seamless integration into strong acid and alkali medium pipelines within chemical manufacturing, fine chemicals, pharmaceuticals, and pickling industries. Designed with a straight-through T-type structure, the filter delivers outstanding fluid guidance and impurity retention within a nominal pressure range of 1.0 to 1.6 MPa. The valve body is available in carbon steel (F46 lined), stainless steel, cast iron, or ductile iron, lined completely with Fluorinated Ethylene Propylene (F46) inside. It maintains exceptional corrosion resistance and sealing reliability under temperature conditions ranging from -20 ℃ to 150 ℃, making it an ideal core filtration component for safeguarding downstream instruments, pumps, and valves in modern corrosive fluid delivery systems.

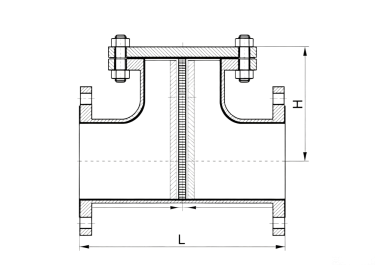

Product Image: SRTF46 Fluoropolymer-Lined T-Type Straight-Through Filter

Feature

Large-Diameter Lined Design & Diverse Materials: Tailored specifically for DN50–DN300 medium-to-large pipelines, offering carbon steel (F46 lined), stainless steel, cast iron, and ductile iron shell options. Combined with internal F46 lining, it perfectly adapts to various corrosive pipeline layouts globally.

Straight-Through Design & Passive Filtration: Incorporates a precision straight-through T-type internal flow channel mechanism that utilizes natural medium flow for efficient impurity settling and mesh interception. Requiring no external drive, it achieves high-precision continuous filtration with minimal pressure loss.

Exceptional Corrosion Resistance: Designed with specialized corrosion-resistant materials, covering medium operating temperatures from -20 ℃ to 150 ℃. It easily withstands hydrochloric acid, sulfuric acid, hydrofluoric acid, and various strong alkalis or oxidizers without suffering long-term chemical erosion.

Flanged Connection & Robust Structure: Standard flanged connections provide superior pressure rating and pipeline stress resistance. Fully lined flow-wetted parts isolate media from metallic contact, significantly extending equipment service life while minimizing maintenance costs.
