DRVZ Nozzle Check Valve

  • Model:DRVZ-10Q/DRVZ-16Q/DRVZ-25Q/DRVZ-10P/DRVZ-16P/DRVZ-25P
  • Specification:DN40~350mm
  • Temperature:≤80℃
  • Medium:Water and media similar to water.
  • Pressure:PN10~25
  • Connection method:flange
  • Driving method:spring
  • Material:Cast iron, ductile iron, stainless steel
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

DRVZ Nozzle Check Valve Overview

The DRVZ Nozzle check valve features a contour design that perfectly conforms to hydraulics, achieving a streamlined waterway. Its internal fluid guide design ensures minimal pressure loss. Installed at the pump outlet, this Nozzle check valve quickly closes before backflow occurs, preventing water hammer, water surge noise, and destructive impacts. It achieves the goals of quiet operation, backflow prevention, and equipment protection, and is widely used in water supply and drainage, fire protection, HVAC, and industrial systems.

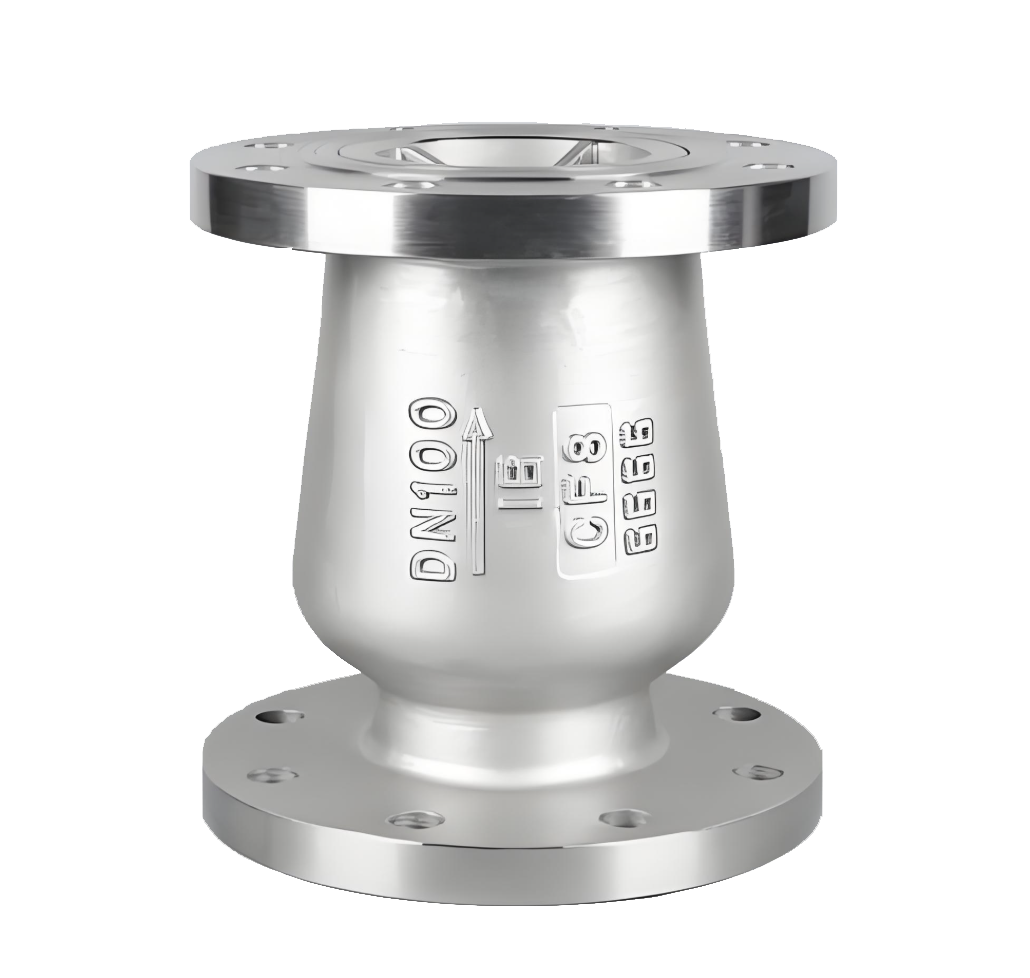

DRVZ Nozzle Check Valve Product Image

Features of DRVZ Nozzle Check Valve

1. Excellent noise reduction: Streamlined internal flow channel and short valve disc stroke enable quick closure when the pump stops, preventing loud water hammer and reducing flow noise for quiet operation.

2. Low pressure loss: Streamlined internal flow channel ensures smooth medium flow, minimizing pressure loss and energy consumption while boosting system efficiency.

3. Automatic operation + strong water hammer resistance: Auto opens/closes via medium pressure (no manual operation – opens on forward flow, closes on stagnation/backflow to prevent backflow); instant closure on pump shutdown effectively resists water hammer, protecting pumps and pipelines and extending equipment life.

4. Compact structure: Small, lightweight, and processable, with easy installation/maintenance, space-saving design, and adaptability to various environments.

5. Superior sealing: Composed of valve body, seat, flow guide, disc, bearings, springs and other key components; rational structure ensures excellent sealing, unidirectional medium flow and no leakage.

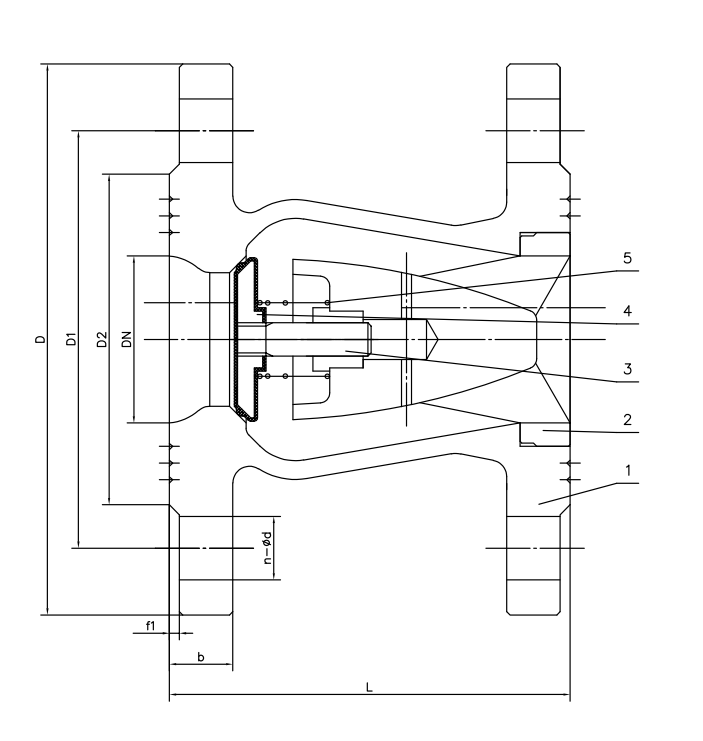

DRVZ Nozzle Check Valve Structure Diagram


Parts Name Material List

NO.NameMaterial
5Spring/Пружина304
4Disc/ДискStainless Steel+EPDM
3Shaft/Вал2Cr13
2Diversion DeviceStainless Steel
1BodyStainless Steel

Performance Specification
Nominal Pressure1.0/1.6MPa
Shell Test1.5/2.4
Seal Test1.1/1.76
Suitable Temp.≤80


Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard GB/T12221.

2. The connecting flange shall conform to the standard GB/T 9113.

DRVZ Nozzle Check Valve View Drawing


DRVZ Nozzle Check Valve Dimensions Table

DNLDD1D2n-d
1.0MPa1.6Mpa1.0MPa1.6Mpa1.0MPa1.6Mpa1.0MPa1.6Mpa
4011015015011011088884-184-18
501201651651251251021024-184-18
651501851851451451221228-188-18
801802002001601601381388-188-18
1002292202201801801581588-188-18
1252542502502102101881888-188-18
1502672852852402402122128-228-22
2002923403402952952682688-2212-22
25033039540535035532032012-2212-26
30035644546040041037037812-2212-22
35038150552046047043043816-2216-26


Other valve products you may need
  • H71H Wafer-Type Lift Check Valve

    Model:

    H71H-10C/H71H-16C/H71H-25C/H71H-40C/H71H-10P/H71H-25P/H71H-40P

    Specification:

    DN15-DN200

    Pressure:

    PN10-PN40

    Material:

    WCB、Stainless Steel
  • H41H Forged Steel Lift Check Valve

    Model:

    H41H-16P/H41H-25P/H41H-10C/H41H-16C/H41H-40P

    Specification:

    DN15-50

    Pressure:

    PN16,PN25,PN40

    Material:

    forged steel、forged stainless steel
  • H61Y Forged Steel Y-Type Check Valve

    Model:

    H61Y

    Specification:

    DN10-50

    Pressure:

    PN20-PN150

    Material:

    forged steel,forged stainless steel
/storage/20260101/pZo1767259142RkCKTE1.jpg
Complete Guide to Check Valve Selection and Installation: Detailed Explanation of Principles, Selection, and Key Construction Points

Complete Guide to Check Valve Selection and Installation: Detailed Explanation of Principles, Selection, and Key Construction Points Check valves, as crucial safety components in pipeline systems, are essential for preventing medium backflow and ensuring safe system operation. This article will provide you with a comprehensive guide to the selection and installation of check valves.

1. Operating Principle and Classification of Check Valves 1.1 What is a Check Valve?

Check valves, also known as one-way valves or non-return valves, belong to the category of automatic valves. Their working principle is to achieve opening and closing through the flow force of the medium itself. Their core function is to prevent the reverse flow of pipeline medium and ensure one-way flow.

1.2 Main application scenario: foot valve (a special type of check valve) at the water pump suction inlet

Various pipeline systems requiring unidirectional flow of medium

Industrial settings where accidents caused by medium backflow are to be prevented

II. Selection Criteria and Guidelines for Check Valves 2.1 Basic Selection Principles Medium Adaptability: Suitable for clean medium conditions, not recommended for pipelines containing solid particles or high viscosity media.

2.2 Selection of pipeline size (DN) based on pipeline size. Recommended valve types. Applicable pressure range: DN<50mm. Butterfly check valve, vertical lift check valve, diaphragm check valve. Low-pressure environment: 50mm

Advantages: Effectively eliminates the water hammer phenomenon

Limitations: Subject to temperature and pressure constraints, suitable for low-pressure and normal-temperature pipelines

Applicable scenario: Water supply pipelines prone to water hammer

Slow-closing check valve:

Slow-closing swing check valve

Slow-closing butterfly check valve

Applicable scenario: pipeline systems that require minimal or no water hammer impact when shut down

III. Installation specifications and construction requirements for check valves 3.1 Preparatory work before installation Appearance inspection:

Check the valve nameplate information to ensure compliance with the GB 12220 "General Valve Marking" standard

Check the integrity of the valve and confirm that it is undamaged

Pressure test requirements:

If the working pressure exceeds 1.0 MPa or the main pipe shut-off valve is involved, a pressure test must be conducted

Strength test: Nominal pressure × 1.5, duration ≥ 5 minutes, no leakage is considered as qualified

Tightness test: nominal pressure × 1.1, determine the duration according to GB 50243 standard

3.2 Installation location and direction: Strictly follow the design drawings to determine the location, height, and inlet and outlet directions

Flow direction indicator: Ensure that the flow direction of the medium is completely consistent with the direction indicated by the arrow on the valve body

Pipe support:

It is prohibited to let the check valve bear the weight of the pipeline

Large check valves must be equipped with independent support structures

Avoid direct impact of piping pressure on the valve

3.3 Lift check valves are required for specific types of installations:

Vertical flap type: It must be installed on a vertical pipeline

Horizontal flap type: It must be installed on a horizontal pipeline

Swing check valve:

Ensure that the valve disc's rotating shaft is in a horizontal position during installation

Special attention should be paid to the flow direction of the medium during inclined installation

IV. Common Installation Errors and Precautions 4.1 Example of Incorrect Installation: Installing a Vertical Lift Check Valve on a Horizontal Pipe

The valve flow direction is reversed

Large valves have no independent support

Pressure testing was not conducted according to specifications

4.2 The selection and installation location of check valves should be considered during the design phase of the professional advice system

Provide complete operating condition parameters to the supplier during procurement to obtain professional selection advice

For complex systems, it is recommended to consult a professional valve engineer

Conduct regular maintenance and inspection to ensure the check valve operates in normal condition

5. Maintenance points: Regularly check whether the valve can be opened and closed flexibly

Monitor for abnormal sounds, such as water hammer impact

Check the sealing performance to prevent internal leakage

Lubricate the moving parts to ensure normal operation

The correct selection and installation of check valves are crucial for ensuring the safe operation of pipeline systems. Following the selection guidelines and installation specifications provided in this article can prevent various accidents caused by medium backflow, extend the service life of valves, and reduce maintenance costs.

In practical applications, it is recommended to consider specific engineering requirements and medium characteristics, and if necessary, consult professional valve technicians to ensure the optimization of the selection and installation plan.
