H44H Forged Steel Flange Check Valve Overview
The H44H Forged Steel Flange Check Valve is an automatic valve designed with a forged steel body and flanged connections, utilizing a swing disc mechanism to achieve unidirectional flow control. The valve body is typically forged from materials such as A105, offering excellent mechanical properties and material density. It features a metal hard-seal structure, with the sealing surfaces of the disc and seat often overlay-welded with hard alloys.The valve operates by swinging open under the pressure of forward-flowing medium and rapidly returning to the seat under its own weight and reverse pressure when the medium stops or reverses, ensuring tight closure.Designed specifically for high-temperature, high-pressure, and high-flow-rate applications, this valve is widely used in critical pipelines in industries such as petrochemicals, power plants, natural gas transmission, and high-temperature steam systems. It serves as a highly reliable safety device to prevent medium backflow and protect core equipment.

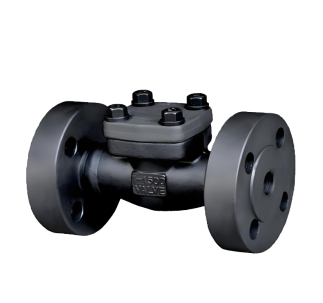

H44H Forged Steel Flange Check Valve Product Image
H44H Forged Steel Flange Check Valve Features
1. Forged Steel Body for High Pressure and Temperature Resistance
The valve body is manufactured using a forging process, ensuring uniform material properties, high structural strength, and freedom from casting defects. It reliably withstands demanding conditions such as high pressure, high temperature, and frequent pressure surges.
2. Durable Metal Hard Sealing
The disc and seat feature hard alloy sealing surfaces, providing excellent resistance to erosion, wear, and high temperatures. This makes it particularly suitable for applications involving steam, media containing particles, and frequent operation, ensuring a long service life.
3. Flexible Installation and Low Flow Resistance
The swing-type design allows for horizontal installation or installation in vertical pipelines with upward flow. When open, the disc swings almost completely away from the flow path, resulting in minimal fluid resistance and low pressure loss.
4. Rapid Closure and Safety Reliability
The short swing travel of the disc enables quick closure, effectively mitigating water hammer effects. The robust construction ensures stable operation under harsh conditions, and some models comply with fire safety standards.
5. Easy Maintenance and Wide Applicability
The structural design facilitates online inspection or maintenance, with some models supporting quick replacement of seat seals. Suitable for various media including water, steam, oil, and gas, the valve excels in high-temperature and high-pressure applications.

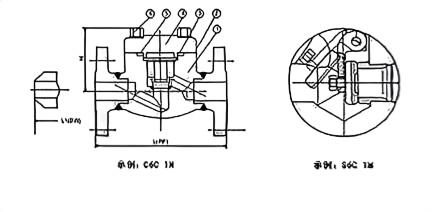

H44H Forged Steel Flange Check Valve Structure Diagram
Parts Name Material List
| 序 号NO. | 名称Name | 材料Material |
| 6 | 螺栓bolt | B7、B8、B16 |
| 5 | 垫片gasket | 316柔性石墨graphite、316PTFE |
| 4 | 阀盖bonnet | 碳钢,不锈钢,合金钢Carbon steel, stainless steel, alloy steel |
| 3 | 阀瓣disc | 碳钢、不锈钢Carbon steel, stainless steel |
| 2 | 铭牌name plate | 不锈钢stainless steel |
| 1 | 阀体body | 碳钢,不锈钢,合金钢Carbon steel, stainless steel, alloy steel |
| 性能规范表Performance Specification | ||
| 公称压力Nominal Pressure | 1.6/2.5/4 | Mpa |
| 强度试验压力Shell Test | 2.4/3.75/6 | |
| 密封试验压力Seal Test | 1.76/2.75/4.4 | |
| 适用温度Suitable Temp. | ≤600 | ℃ |
Dimensions Standard Requirements
1. The structural length of the valve shall conform to the standard ASME16.10.
2. The connecting flange shall conform to the standard AMSE16.50.

H44H Forged Steel Flange Check Valve View Drawing
H44H Forged Steel Flange Check Valve Dimensions Table
| L(RF)L1(BW) | 150 | 108 | 117 | 127 | 140 | 165 | 203 | |
| 300 | 152 | 178 | 203 | 216 | 229 | 267 | ||
| 600 | 165 | 190 | 216 | 229 | 241 | 292 | ||
| H | 150,300 | 61 | 61 | 79 | 95 | 103 | 118 | |
| 600 | 61 | 79 | 95 | 103 | 118 | 135 | ||
| DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN15 | DN20 | |

Model:
H41W-25I/H41W-40I/H41W-64I/1H41W-0I/H41W-25P/H41W-40P/H41W-64P/H41W-10PSpecification:
DN15-200Pressure:
PN25,PN40,PN64,PN10Material:
Stainless Steel,carbon steel,Cr-Mo-V Steel
Model:
H61H-50P/H61H-100P/H61H-150P/H61H-250P/H61H-20C/H61H-50C/H61H-100CSpecification:
DN15-50Pressure:
PN20-PN250Material:
forged steel, forged stainless steel
Model:
GLH41W-150LB/GLH41W-300LB/GLH41W-600LB/GLH41W-900LB/GLH41W-1500LB/GLH41W-2500LBSpecification:
2"-36"Pressure:
CL150 - 2500LBMaterial:
Carbon Steel,Stainless Steel, DuplexSS,Monel, AL-Bronze
Complete Guide to Check Valve Selection and Installation: Detailed Explanation of Principles, Selection, and Key Construction Points Check valves, as crucial safety components in pipeline systems, are essential for preventing medium backflow and ensuring safe system operation. This article will provide you with a comprehensive guide to the selection and installation of check valves.
1. Operating Principle and Classification of Check Valves 1.1 What is a Check Valve?
Check valves, also known as one-way valves or non-return valves, belong to the category of automatic valves. Their working principle is to achieve opening and closing through the flow force of the medium itself. Their core function is to prevent the reverse flow of pipeline medium and ensure one-way flow.
1.2 Main application scenario: foot valve (a special type of check valve) at the water pump suction inlet
Various pipeline systems requiring unidirectional flow of medium
Industrial settings where accidents caused by medium backflow are to be prevented
II. Selection Criteria and Guidelines for Check Valves 2.1 Basic Selection Principles Medium Adaptability: Suitable for clean medium conditions, not recommended for pipelines containing solid particles or high viscosity media.
2.2 Selection of pipeline size (DN) based on pipeline size. Recommended valve types. Applicable pressure range: DN<50mm. Butterfly check valve, vertical lift check valve, diaphragm check valve. Low-pressure environment: 50mm
Advantages: Effectively eliminates the water hammer phenomenon
Limitations: Subject to temperature and pressure constraints, suitable for low-pressure and normal-temperature pipelines
Applicable scenario: Water supply pipelines prone to water hammer
Slow-closing check valve:
Slow-closing swing check valve
Slow-closing butterfly check valve
Applicable scenario: pipeline systems that require minimal or no water hammer impact when shut down
III. Installation specifications and construction requirements for check valves 3.1 Preparatory work before installation Appearance inspection:
Check the valve nameplate information to ensure compliance with the GB 12220 "General Valve Marking" standard
Check the integrity of the valve and confirm that it is undamaged
Pressure test requirements:
If the working pressure exceeds 1.0 MPa or the main pipe shut-off valve is involved, a pressure test must be conducted
Strength test: Nominal pressure × 1.5, duration ≥ 5 minutes, no leakage is considered as qualified
Tightness test: nominal pressure × 1.1, determine the duration according to GB 50243 standard
3.2 Installation location and direction: Strictly follow the design drawings to determine the location, height, and inlet and outlet directions
Flow direction indicator: Ensure that the flow direction of the medium is completely consistent with the direction indicated by the arrow on the valve body
Pipe support:
It is prohibited to let the check valve bear the weight of the pipeline
Large check valves must be equipped with independent support structures
Avoid direct impact of piping pressure on the valve
3.3 Lift check valves are required for specific types of installations:
Vertical flap type: It must be installed on a vertical pipeline
Horizontal flap type: It must be installed on a horizontal pipeline
Swing check valve:
Ensure that the valve disc's rotating shaft is in a horizontal position during installation
Special attention should be paid to the flow direction of the medium during inclined installation
IV. Common Installation Errors and Precautions 4.1 Example of Incorrect Installation: Installing a Vertical Lift Check Valve on a Horizontal Pipe
The valve flow direction is reversed
Large valves have no independent support
Pressure testing was not conducted according to specifications
4.2 The selection and installation location of check valves should be considered during the design phase of the professional advice system
Provide complete operating condition parameters to the supplier during procurement to obtain professional selection advice
For complex systems, it is recommended to consult a professional valve engineer
Conduct regular maintenance and inspection to ensure the check valve operates in normal condition
5. Maintenance points: Regularly check whether the valve can be opened and closed flexibly
Monitor for abnormal sounds, such as water hammer impact
Check the sealing performance to prevent internal leakage
Lubricate the moving parts to ensure normal operation
The correct selection and installation of check valves are crucial for ensuring the safe operation of pipeline systems. Following the selection guidelines and installation specifications provided in this article can prevent various accidents caused by medium backflow, extend the service life of valves, and reduce maintenance costs.
In practical applications, it is recommended to consider specific engineering requirements and medium characteristics, and if necessary, consult professional valve technicians to ensure the optimization of the selection and installation plan.
