HC44X Swing Flex Check Valve

  • Model:HC44X-10Q/HC44X-16Q/HC44X-25Q/HC44X-25C/HC44X-16C/HC44X-16P/HC44X-25P
  • Specification:DN50-DN600
  • Temperature:≤80℃
  • Medium:Water and liquids with properties similar to water
  • Pressure:PN10,PN16,PN25
  • Connection method:flange
  • Driving method:Automated
  • Material:Ductile iron,cast iron,stainless steel
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

HC44X Swing Flex Check Valve Overview

The HC44X swing flex check valve can be used in water supply pipelines for clean water, raw water, and sewage to prevent backflow, effectively limit destructive water hammer, and ensure pipeline safety. It features a novel structure, low fluid resistance, reliable sealing, smooth opening and closing, long service life, and its oil pressure and slow closing are unaffected by the medium, resulting in good energy-saving performance.

HC44X Swing Flex Check Valve Product Image

HC44X Swing Flex Check Valve features

1.Low head loss: Full-flow design enables smooth fluid passage, minimizing flow resistance, head loss and energy consumption.

2.Reduced debris accumulation: Spacious full-flow channel avoids eddies/dead zones during medium flow, lowering debris buildup and blockage-related malfunctions.

3.Excellent sealing & water hammer resistance: Rubber flap features steel plate/rod + reinforced nylon cloth backing with external rubber coating, ensuring good elasticity and tight valve seat fit to prevent backflow. Short closing stroke significantly reduces water hammer impact.

4.Long service life: Erosion-resistant rubber disc (special-treated) supports over 1 million switching cycles for stable long-term operation, cutting replacement costs and workload.

5. Simple structure & easy maintenance: Only 3 main components (body, bonnet, rubber disc). Maintenance requires no specialized tools/skills—just disassemble and replace damaged parts, ensuring low costs and convenience.

6. Wide applicability: Suitable for pump outlets in water supply/drainage, petroleum, chemical and other industrial pipelines, as well as bypass pipes of water storage tank inlets/outlets. Ideal for clean water and weakly corrosive fluids; not recommended for media with solid particles or high viscosity.

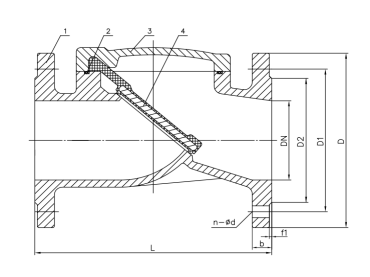

HC44X Swing Flex Check Valve Structure Diagram

Parts Name Material List

NO.NameMaterial
4DiscNBR coating on steel plate
3BonnetQT450
2O RingNBR
1BodyQT450

性能规范表Performance Specification
公称压力Nominal Pressure1.0/1.6/2.5MPa
强度试验压力Shell Test1.5/2.4/3.75
密封试验压力Seal Test1.1/1.76/2.75
适用温度Suitable Temp.≤80


Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard GB/T12221.

2. The connecting flange shall conform to the standard GB/T17241.6

HC44X Swing Flex Check Valve View Drawing

HC44X Swing Flex Check Valve Dimensions Table

DNLDD1D2bf1z-d
DN50205165125991934-Ø19
DN652171851451181934-Ø19
DN802382001601321938-Ø19
DN1002922201801561938-Ø19
DN1253322502101841938-Ø19
DN1503602852402111938-Ø23
DN20049234029526620312-φ23
DN25062040535531922312-φ28
DN30070046041037024.5412-Ø28
DN35067052047042926.5416-Ø28
DN40073558052548028416-φ31
DN45080064058554830420-Ø31
DN50086071565060931.5420-Ø34
DN60096584077072036520-Ø37
