Product Introduction

The H142X hydraulic water level control valve product is suitable for automatic water supply systems of various water tanks, water pools, and water towers in industrial and mining enterprises and civil buildings, and can be used as a circulating water control valve for atmospheric boilers.

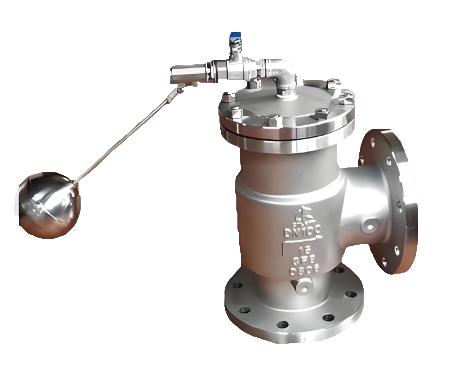

H142X Hydraulic Water Level Control Valve Product Diagram

Working Principle

When the water level in the pool or water tower drops, the float valve opens, causing the upper chamber of the piston to lose pressure. The pressurized water in the inlet pipe lifts the piston inside the valve, and the valve disc opens, opening the valve for water supply. When the water level rises to the control line, the float valve closes, and the pressurized water in the upper chamber of the piston pushes the piston down to close the sealing surface, stopping the water supply to the valve.
