Model F745X Remote Control Float Valve

  • Model：F745X-10/F745X-16/F745X-25/F745X-10Q/F745X-16Q/F745X-25Q/F745X-10P/F745X-16P/F745X-25P/F745X-10T/F745X-16T/F745X-25T
  • Specification：DN50~DN1000
  • Temperature：≤80℃
  • Medium：Water and water-like media
  • Pressure：PN10~PN25
  • Connection method：flange
  • Driving method：Spring, automatic
  • Material：Cast Iron, Cast Steel, Stainless Steel，Copper
Consult now
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

Application

The Model F745X Remote Control Float Valve produced by our company is mainly installed in the water inlet pipelines of various water tanks and water towers in industrial enterprises and civil buildings. It automatically closes when the water tank reaches the preset water level and opens automatically to replenish water when the water level drops.

Product Diagram of F745X Remote Control Float Valve


Features

1.Tight and reliable closure: Equipped with a robust rubber sealing ring, it adopts the hydraulic control principle, making the sliding plate closing force proportional to the water pressure for high sealing reliability.

2.Large flow capacity: The valve body features a full-channel streamlined design, ensuring low fluid resistance and large flow rate.

3.Easy operation and maintenance: The main valve is installed outside the water tank, enabling convenient commissioning, inspection and simple maintenance.

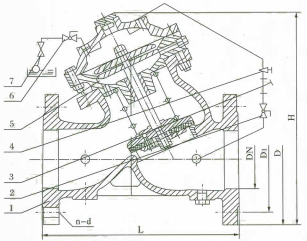

Structural Diagram of F745X Remote Control Float Valve


Components and Materials List

Serial NumberPart NameMaterial
1Valve BodyCast Iron, Cast Steel, Stainless Steel
2Small Ball ValveCopper, Stainless Steel
3FilterStainless Steel
4Needle ValveCopper
5PistonStainless Steel
6Small Ball ValveCopper, Stainless Steel
7Small Float ValveCopper, Stainless Steel


Main Technical Parameters

PN（MPa）Shell Test Pressure（MPa）Seal Test Pressure（MPa）Minimum Operating Pressure（MPa）Slow Closing Time（S）Applicable MediumMedium Temperature（℃）
1.01.51.1≥0.043~60 (adjustable)Water0～80
1.62.41.76
2.53.752.75


Outline Dimension Drawing of F745X Remote Control Float Valve


Outline Dimension Table of F745X Remote Control Float Valve

DN(mm)LHDD1n-d
1.0MPa1.6MPa2.5MPa1.0MPa1.6MPa2.5MPa1.0MPa1.6MPa2.5MPa
502053201651651651251251254-184-184-18
652153671851851851451451454-184-188-18
802504002002002001601601608-188-188-18
1003204522202202351801801908-188-188-22
1253655222502502702102102208-188-188-26
1504155922852853002402402508-228-228-26
2005006963403403602952953108-2212-2212-26
25060081039540542535035537012-2212-2612-30
30068094544546048540041043012-2212-2616-30
350780120050552055546047049016-2216-2616-33
400860123056558062051552555016-2616-3016-36
450920123061564067056558560020-2620-3020-36
500980127067071573062065066020-2620-3320-36
6001100160078084072577020-3020-36
7001450175089591084084024-3024-36
800156019001015102595095024-3324-39
900180021001115105028-33
1000200024001230116028-36
