H41H Forged Steel Lift Check Valve

  • Model:H41H-16P/H41H-25P/H41H-10C/H41H-16C/H41H-40P
  • Specification:DN15-50
  • Temperature:≤ 425 ℃
  • Medium:Water, Oil, Steam
  • Pressure:PN16,PN25,PN40
  • Connection method: Flange
  • Driving method:automated
  • Material:forged steel、forged stainless steel
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

H41H Forged Steel Lift Check Valve Overview

The H41H Forged Steel Lift Check Valve is an automatic valve that utilizes a forged valve body and operates through the vertical lifting and lowering motion of its disc to achieve unidirectional flow control. The valve body is typically constructed from forged steel materials such as A105, ensuring robust and compact construction. It features a metal hard-seal design, with the sealing surfaces of the disc and seat often overlay-welded with hard alloys.  Its working principle involves the disc being lifted open by the pressure of forward-flowing medium. When the medium flow ceases or reverses, the disc rapidly returns to the seat under its own weight and reverse pressure, achieving a tight seal.  Designed to meet high standards for pressure resistance, this valve is suitable for demanding applications involving high temperatures, high pressures, high flow velocities, and stringent sealing requirements. It is widely used in pipelines for power plants, petrochemical industries, steam systems, and high-pressure water supply systems, serving as a critical component to prevent medium backflow.

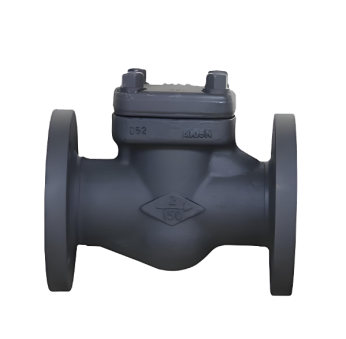

H41H Forged Steel Lift Check Valve Product Image

H41H Forged Steel Lift Check Valve Features

1. Forged Steel Body for High-Pressure Performance

  The valve body is manufactured using forging technology, ensuring uniform material density and freedom from casting defects. This provides exceptional mechanical strength and pressure-bearing capacity, making it suitable for demanding applications involving high pressure, high temperature, and frequent pressure fluctuations.

2. Hard Metal Sealing for Wear Resistance

  The sealing surfaces of the disc and seat are made of hard alloy materials, offering excellent resistance to wear, erosion, and high temperatures. This ensures a long service life and reliable sealing performance, even in media containing fine particles or under high-temperature conditions.

3. Strict Installation Requirements

  The valve must be installed horizontally with the valve stem axis strictly vertical, ensuring the disc can freely return under gravity—a prerequisite for proper operation. These requirements must be strictly adhered to during installation.

4. Rapid Response and Low Flow Resistance

  The short vertical travel of the disc enables quick closure, effectively mitigating water hammer effects. When open, the valve provides an unobstructed flow path with minimal flow resistance, exerting negligible impact on system pressure.

5. Stable Structure and Maintainability

  The guiding mechanism ensures smooth disc movement and prevents sticking. The robust overall design allows for disassembly and maintenance or replacement of sealing components during major system overhauls, ensuring ease of maintenance.

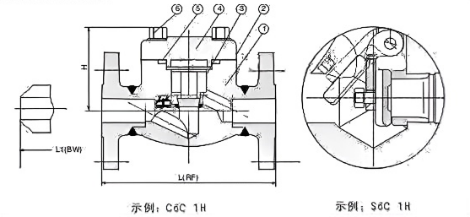

H41H Forged Steel Lift Check Valve Structure Diagram

Parts Name Material List

序 号NO.名称Name材料Material
6螺栓boltB7、B8
5垫片gasketss316、石墨graphite、PTFE
4铭牌name plate不锈钢stainless steel
3阀瓣disc碳钢、不锈钢carbon steel、stainless steel
2阀盖bonnet碳钢、不锈钢carbon steel、stainless steel
1阀体body碳钢、不锈钢carbon steel、stainless steel

性能规范表Performance Specification
公称压力Nominal Pressure1.6/2.5/4Mpa
强度试验压力Shell Test2.4/3.75/6
密封试验压力Seal Test1.76/2.75/4.4
适用温度Suitable Temp.≤425


Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard ASME16.10.

2. The connecting flange shall conform to the standard ASME16.50.

H41H Forged Steel Lift Check Valve View Drawing

H41H Forged Steel Lift Check Valve Dimensions Table

NPSDN15DN20DN25DN32DN40DN50
L(RF) L1(BW)150Lb108117127140165203
300Lb152178203216229267
600Lb165190216229241292
H150Lb~300Lb61617995103118
600Lb617995103118135
