H41W Lift Check Valve

  • Model:H41W-25I/H41W-40I/H41W-64I/1H41W-0I/H41W-25P/H41W-40P/H41W-64P/H41W-10P
  • Specification:DN15-200
  • Temperature:≤ 550 ℃
  • Medium:Water, Steam, Oil Products, Weakly Corrosive Media
  • Pressure:PN25,PN40,PN64,PN10
  • Connection method:Flange
  • Driving method:automated
  • Material:Stainless Steel,carbon steel,Cr-Mo-V Steel
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

H41W Lift Check Valve Overview

The H41W Lift Check Valve is an automatic valve that utilizes flanged connections and operates through the vertical lifting and lowering motion of its disc to achieve unidirectional flow control. The valve body is typically constructed from materials such as cast steel, stainless steel, or cast iron, featuring a metal-sealed internal structure where the sealing surfaces of the disc and seat are often made of the base material or overlay-welded with alloy.Its working principle involves the disc being lifted open by the pressure of forward-flowing medium and automatically closing by rapidly returning to the seat under its own weight and reverse pressure when the medium stops or reverses.Designed specifically for horizontal pipelines, this valve offers a simple and reliable structure. It is suitable for pipeline systems handling media such as water, steam, and oil products, with nominal pressure ratings ranging from PN16 to PN160. Widely used in petroleum, chemical, power, water supply, and drainage industries, it serves as a fundamental safety device to prevent medium backflow.

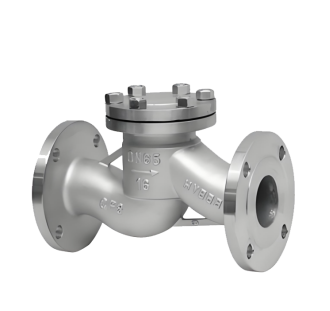

H41W Lift Check Valve Product Image

H41W Lift Check Valve Features

1. Simple Structure and Reliable Operation

  Adopting a classic lift-type design with minimal moving parts, this valve offers low failure rates. It operates through the combined action of disc weight and medium pressure, requiring no external power or complex controls.

2. Strict Installation Orientation Requirements

  The valve must be installed horizontally with the valve stem axis strictly vertical. Correct installation orientation is the fundamental prerequisite for ensuring reliable sealing and proper operation.

3. Metal Sealing with High Temperature Resistance

  The disc and seat feature a metal-to-metal hard-seal design, providing excellent resistance to high temperatures and wear. This makes it suitable for high-temperature media such as steam and hot oil, ensuring a long service life.

4. Rapid Closure and Low Flow Resistance

  The short vertical travel of the disc enables fast and direct closure, effectively preventing medium backflow and mitigating water hammer effects. When fully open, the valve offers an unobstructed flow path with minimal pressure loss.

5. Easy Maintenance and Wide Applicability

  With its robust construction, the valve requires minimal maintenance. If sealing surfaces wear over time, performance can often be restored through grinding, keeping maintenance costs low. It is suitable for a variety of non-highly corrosive industrial media.


H41W Lift Check Valve Structure Diagram

Parts Name Material List

序 号NO.名称Name材料Material
5螺栓bolt铬钼钒钢、不锈钢Chromium-Molybdenum-Vanadium Steel (Cr-Mo-V Steel), Stainless Steel
4阀瓣disc铬钼钢、铬镍钛不锈钢Chromium-Molybdenum Steel (Cr-Mo Steel), Chromium-Nickel-Titanium Stainless Steel
3密封面sealing surface硬质合金Hard Alloy
2垫片gasket聚四氟乙稀、钢带石棉缠绕式垫片PTFE Spiral-Wound Metal-Asbestos Gasket
1阀体body铬钼钢、铬镍钛不锈钢Chromium-Molybdenum Steel (Cr-Mo Steel), Chromium-Nickel-Titanium Stainless Steel

性能规范表Performance Specification
公称压力Nominal Pressure2.5/4/6.4/10Mpa
强度试验压力Shell Test3.75/6/9.6/15
密封试验压力Seal Test2.75/4.4/7.04/11
适用温度Suitable Temp.≤550


Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard GB/T 12221.

2. The connecting flange shall conform to the standard GB/T 17241.6.

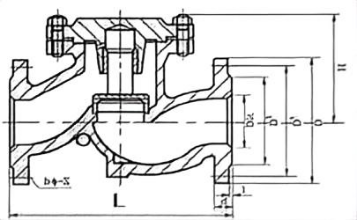

H14W Lift Check Valve View Drawing

H14W Lift Check Valve Dimension Table

N(㎜)尺寸(㎜)
LDD1D2bfZ-фdHD3
151309565451624-ф14100-
2015010575551624-ф14105-
2516011585651624-ф14115110
32190135100781824-ф18120120
40200145110851834-ф18140135
502301601251002034-ф18150150
652901801451202238-ф18160175
803101951601352238-ф18175200
1003502301901602438-ф23200230
1254002702201882838-ф25230273
1504803002502183038-ф25265330
20060036031027834312-ф25300365


Other valve products you may need
  • H42F46 Fluorine-Lined Lift Check Valve

    Model:

    H42F46-16C/ H42F46-10C/ H42F46-25C/ H42F46-16/ H42F46-10/ H42F46-25/ H42F46-16P/ H42F46-25P

    Specification:

    DN25-DN150

    Pressure:

    PN10,PN16,PN25

    Material:

    Cast Iron, Cast Steel, Stainless Steel Lined with FEP/PTFE
  • H44H Forged Steel Flange Check Valve

    Model:

    H44H-16C/H44H-25P/H44H-40P/H44H-40R

    Specification:

    DN15-50

    Pressure:

    PN16,PN25,PN40

    Material:

    forged steel,forged stainless steel
  • JIS Brass Stop-Check Valve

    Model:

    JIS F7301/F7352

    Specification:

    DN15-DN80

    Pressure:

    5K,10K

    Material:

    Brass
/storage/20260101/pZo1767259142RkCKTE1.jpg
Complete Guide to Check Valve Selection and Installation: Detailed Explanation of Principles, Selection, and Key Construction Points

Complete Guide to Check Valve Selection and Installation: Detailed Explanation of Principles, Selection, and Key Construction Points Check valves, as crucial safety components in pipeline systems, are essential for preventing medium backflow and ensuring safe system operation. This article will provide you with a comprehensive guide to the selection and installation of check valves.

1. Operating Principle and Classification of Check Valves 1.1 What is a Check Valve?

Check valves, also known as one-way valves or non-return valves, belong to the category of automatic valves. Their working principle is to achieve opening and closing through the flow force of the medium itself. Their core function is to prevent the reverse flow of pipeline medium and ensure one-way flow.

1.2 Main application scenario: foot valve (a special type of check valve) at the water pump suction inlet

Various pipeline systems requiring unidirectional flow of medium

Industrial settings where accidents caused by medium backflow are to be prevented

II. Selection Criteria and Guidelines for Check Valves 2.1 Basic Selection Principles Medium Adaptability: Suitable for clean medium conditions, not recommended for pipelines containing solid particles or high viscosity media.

2.2 Selection of pipeline size (DN) based on pipeline size. Recommended valve types. Applicable pressure range: DN<50mm. Butterfly check valve, vertical lift check valve, diaphragm check valve. Low-pressure environment: 50mm

Advantages: Effectively eliminates the water hammer phenomenon

Limitations: Subject to temperature and pressure constraints, suitable for low-pressure and normal-temperature pipelines

Applicable scenario: Water supply pipelines prone to water hammer

Slow-closing check valve:

Slow-closing swing check valve

Slow-closing butterfly check valve

Applicable scenario: pipeline systems that require minimal or no water hammer impact when shut down

III. Installation specifications and construction requirements for check valves 3.1 Preparatory work before installation Appearance inspection:

Check the valve nameplate information to ensure compliance with the GB 12220 "General Valve Marking" standard

Check the integrity of the valve and confirm that it is undamaged

Pressure test requirements:

If the working pressure exceeds 1.0 MPa or the main pipe shut-off valve is involved, a pressure test must be conducted

Strength test: Nominal pressure × 1.5, duration ≥ 5 minutes, no leakage is considered as qualified

Tightness test: nominal pressure × 1.1, determine the duration according to GB 50243 standard

3.2 Installation location and direction: Strictly follow the design drawings to determine the location, height, and inlet and outlet directions

Flow direction indicator: Ensure that the flow direction of the medium is completely consistent with the direction indicated by the arrow on the valve body

Pipe support:

It is prohibited to let the check valve bear the weight of the pipeline

Large check valves must be equipped with independent support structures

Avoid direct impact of piping pressure on the valve

3.3 Lift check valves are required for specific types of installations:

Vertical flap type: It must be installed on a vertical pipeline

Horizontal flap type: It must be installed on a horizontal pipeline

Swing check valve:

Ensure that the valve disc's rotating shaft is in a horizontal position during installation

Special attention should be paid to the flow direction of the medium during inclined installation

IV. Common Installation Errors and Precautions 4.1 Example of Incorrect Installation: Installing a Vertical Lift Check Valve on a Horizontal Pipe

The valve flow direction is reversed

Large valves have no independent support

Pressure testing was not conducted according to specifications

4.2 The selection and installation location of check valves should be considered during the design phase of the professional advice system

Provide complete operating condition parameters to the supplier during procurement to obtain professional selection advice

For complex systems, it is recommended to consult a professional valve engineer

Conduct regular maintenance and inspection to ensure the check valve operates in normal condition

5. Maintenance points: Regularly check whether the valve can be opened and closed flexibly

Monitor for abnormal sounds, such as water hammer impact

Check the sealing performance to prevent internal leakage

Lubricate the moving parts to ensure normal operation

The correct selection and installation of check valves are crucial for ensuring the safe operation of pipeline systems. Following the selection guidelines and installation specifications provided in this article can prevent various accidents caused by medium backflow, extend the service life of valves, and reduce maintenance costs.

In practical applications, it is recommended to consider specific engineering requirements and medium characteristics, and if necessary, consult professional valve technicians to ensure the optimization of the selection and installation plan.
