H61H Forged Steel Internal Thread Check Valve

  • Model:H61H-50P/H61H-100P/H61H-150P/H61H-250P/H61H-20C/H61H-50C/H61H-100C
  • Specification:DN15-50
  • Temperature:≤ 550 ℃
  • Medium:Water, Oil , Steam
  • Pressure:PN20-PN250
  • Connection method:NPT
  • Driving method:automated
  • Material:forged steel, forged stainless steel
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

H61H Forged Steel Internal Thread Check Valve Overview

The H61H Forged Steel Internal Thread Check Valve is a lift-type automatic valve featuring a forged steel body and internal thread connections. The valve body is constructed from forged steel materials such as A105, which through the forging process achieves a dense structure and excellent mechanical properties. It employs a metal hard-seal design, relying on the vertical movement of the disc within the guide cylinder for operation: the disc lifts open under forward medium flow and rapidly returns under its own weight to close when the medium stops or reverses.Designed specifically for small-diameter pipelines under high pressure and high temperature conditions, this valve must be installed horizontally. It is widely used in systems such as power plants, petrochemical facilities, high-pressure boiler feedwater lines, and instrument measurement pipelines, serving as a critical compact safety device to prevent backflow of water, steam, oil, and other media.

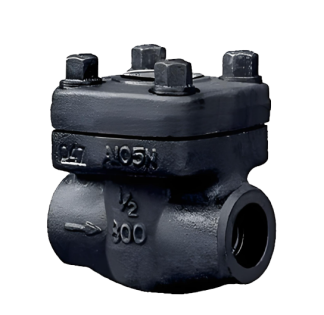

H61H Forged Steel Internal Thread Check Valve Product Image

H61H Forged Steel Internal Thread Check Valve Features

1. Forged Steel Body for High Pressure and Temperature Resistance

  The valve body is formed through forging, resulting in uniform and dense material properties free from casting defects. It offers exceptional strength and pressure-bearing capacity, making it particularly suitable for demanding small-diameter applications under high pressure and temperature.

2. Compact and Reliable Internal Thread Connection

  Equipped with internal threads (e.g., NPT, G), the valve features a compact design, easy installation, and reliable sealing. Its space-saving design makes it an ideal connection solution for small-diameter high-pressure pipelines.

3. Durable Metal Hard Seal

  The sealing surfaces of the disc and seat are typically overlay-welded with hard alloys, providing excellent resistance to wear, erosion, and high temperatures. This ensures long-lasting and reliable sealing performance even under frequent operation or exposure to high-temperature media.

4. Strict Horizontal Installation Requirement

  The valve must be installed horizontally, with the valve stem axis kept strictly vertical. This ensures the disc can freely return under gravity—a prerequisite for proper valve operation.

5. Robust Structure and Simple Maintenance

  The overall structure is simple yet robust, ensuring low failure rates. Cleaning or inspection can be performed during system shutdowns. However, due to its small diameter and high-pressure design, complete replacement is typically recommended in cases of severe damage.

H61H Forged Steel Internal Thread Check Valve Structure Diagram

Parts Name Material List

序 号NO.名称Name材料Material
6密封面seal surface316夹柔性石墨、316夹PTFE316+graphite、316+PTFE
5销钉pin碳钢、不锈钢Carbon Steel, Stainless Steel
4螺栓bolt碳钢、不锈钢Carbon Steel, Stainless Steel
3阀瓣disc碳钢、不锈钢Carbon Steel, Stainless Steel
2阀座seat碳钢、不锈钢Carbon Steel, Stainless Steel
1阀体body碳钢、不锈钢Carbon Steel, Stainless Steel

性能规范表Performance Specification
公称压力Nominal Pressure2.0-25Mpa
强度试验压力Shell Test3-37.5
密封试验压力Seal Test22-27.5
适用温度Suitable Temp.≤550


Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard GB/T 12221.

2. The connecting flange shall conform to the standard GB/T 7306.

H61H Forged Steel Internal Thread Check Valve View Drawing

H61H Forged Steel Internal Thread Check Valve Dimension Table

压力 Pressure规格Size尺寸Dimensions重量 WEIGHTS
mmind (全径)LLH
升降式旋启式
PN20151213105105616134
20341811711778784.4
2512412712784848.2
321-14291401401031018.9
401-1236.5165165118120120
50246.520320313013314.3
PN5015121315215261613.7
20341817817878784.8
2512420320384848.8
321.14292162161031019.6
401-1236.5229229118120137
50246.5267267130133178
PN10015121318516561614.0
203141819019078785.8
2512421621664849.5
321-142922922910310110.4
401.1/236.524124111812015.6
50246.529220212013324.5
